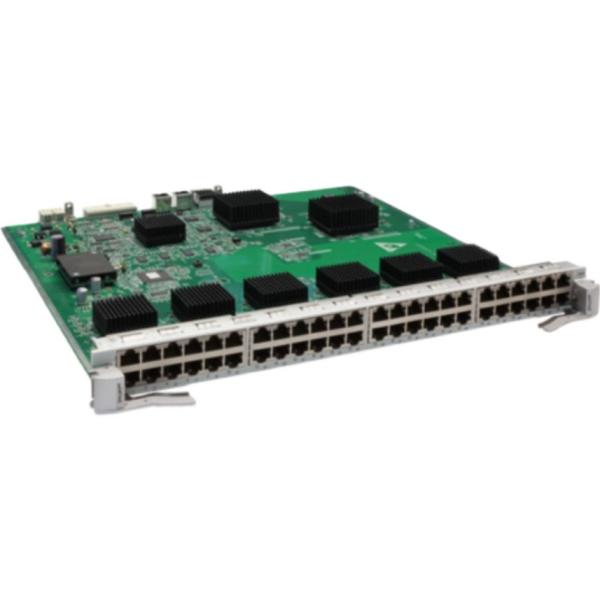

LE0DG48TFA00 Ethernet Interface Board HuaWei 48 Port 10M 100M Gigabit
LE0DG48TFA00 Ethernet Interface Board HuaWei 48 Port 10M 100M Gigabit
LE0DG48TFA00 Ethernet Interface Board HuaWei 48 Port 10M 100M Gigabit
LE0DG48TFA00 Ethernet Interface Board HuaWei 48 Port 10M 100M Gigabit
Specifications
Brand Name :
HuaWei
Model Number :
LE0DG48TFA00
Certification :
FCC,CCC,CE
Place of Origin :
Guangdong, China
MOQ :
Negotiable
Price :
Negotiable
Model number :
LE0DG48TFA00
Connector type :
RJ45
Complies with standards :
IEEE 802.3ab
AXIMUM POWER CONSUMPTION :
2.50kg
Dimensions (w×d× h) :
397.2mm×430.4mm×35.1mm
Weight :
2.50kg
Warranty :
1 Year
Basic functionality :
PROVIDES DATA ACCESS AND SWITCHING FOR 48 GE PORTS
Description

LE0DG48TFA00 Ethernet Interface Board HuaWei 48 Port 10M 100M Gigabit

LE0DG48TFA00 HuaWei 48-Port 10M/100M/Gigabit Ethernet Electrical Interface Board (FA RJ45)

Software companionship

Veneer name

S9300X FRAME
LE0DG48TFA00

S9310X CHASSIS: V200R010C00 AND LATER SUPPORTED

S9300X-4 FRAME, S9300X-8 FRAME, S9300X-12 FRAME: NOT SUPPORTED

Veneer overview

The LE0DG48TFA00 can be installed in:

  • SLOT 01 TO 10 OF THE S9310X FRAME.

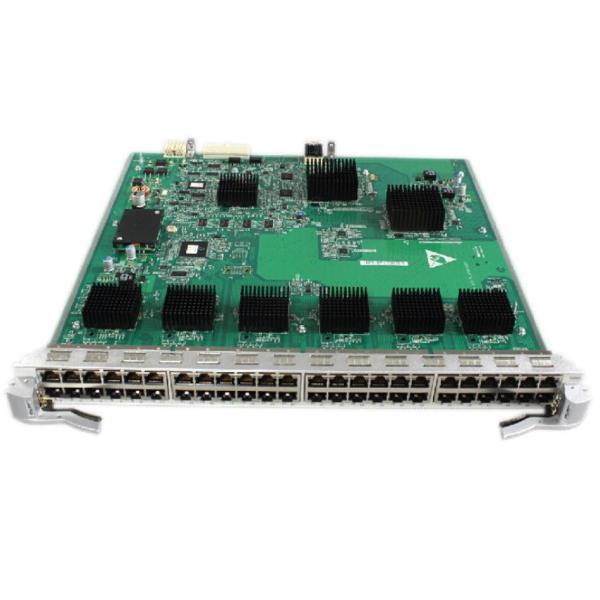

Appearance of le0DG48TFA00

LE0DG48TFA00 functions and features

Function

Description
Basic functionality PROVIDES DATA ACCESS AND SWITCHING FOR 48 GE PORTS
Distributed forwarding Data is forwarded in parallel through a distributed data plane
Hot-swappable Backing

LE0DG48TFA00 panel LEDDG48TFA00 panel LEDs

LE0DG48TFA00 Panel LED Descriptions

Numeric number

Light

Color

Meaning
1 UPPER ELECTRICAL INTERFACE LINK/ACT LIGHT Green

Solid: indicates that the corresponding interface link has been connected.

Blinking: indicates that the corresponding interface has data sending and receiving.
2 LOWER ELECTRICAL INTERFACE LINK/ACT LIGHT
3 RUN/ALM: OPERATIONAL STATUS LED Green

SOLID: INDICATES THAT THE BOARD IS POWERED ON. SOLID FOR THE FIRST 30 SECONDS INDICATES THAT THE CPU IS BOOTING; IF IT IS STILL ON AFTER 30 SECONDS, THE SOFTWARE IS NOT RUNNING.

Slow flash: indicates that the system of the board is in a normal operating state.

Flash: indicates that the system of the board is booting.
Red Solid: indicates that the veneer is malfunctioning and requires manual intervention.
Yellow Solid: indicates that the board is in a power-down state (such as executing the power off command to force power down, the board is in the pre-startup stage).

10/100/1000BASE-T ELECTRICAL INTERFACE

Attribute

Description
Connector type RJ45
Complies with standards IEEE 802.3ab
Support frame formats Ethernet_II,Ethernet_SAP,Ethernet_SNAP
Supports network protocols IP

Specifications for LE0DG48TFA00

Parameter items

Description
Physical parameters
  • Dimensions (w×d× h): 397.2mm×430.4mm×35.1mm
  • Weight: 2.50kg
  • MAXIMUM POWER CONSUMPTION: 48W

Our service

1. Strict quality control is carried out in every link from raw material procurement, processing, testing to packaging.

2. The waybill or bill of lading will be provided in time for tracking.

3. 12 months warranty

Product tags

16 port gigabit

,

24 port gigabit

,

8 port gigabit
