1.44 Inch TFT Lcd Screen TFT Display Module 128X128 Dots SPI Interface Driving IC ST7735S
1.44 Inch TFT Lcd Screen TFT Display Module 128X128 Dots SPI Interface Driving IC ST7735S
1.44 Inch TFT Lcd Screen TFT Display Module 128X128 Dots SPI Interface Driving IC ST7735S
1.44 Inch TFT Lcd Screen TFT Display Module 128X128 Dots SPI Interface Driving IC ST7735S
1.44 Inch TFT Lcd Screen TFT Display Module 128X128 Dots SPI Interface Driving IC ST7735S
1.44 Inch TFT Lcd Screen TFT Display Module 128X128 Dots SPI Interface Driving IC ST7735S
1.44 Inch TFT Lcd Screen TFT Display Module 128X128 Dots SPI Interface Driving IC ST7735S
1.44 Inch TFT Lcd Screen TFT Display Module 128X128 Dots SPI Interface Driving IC ST7735S
1.44 Inch TFT Lcd Screen TFT Display Module 128X128 Dots SPI Interface Driving IC ST7735S
1.44 Inch TFT Lcd Screen TFT Display Module 128X128 Dots SPI Interface Driving IC ST7735S
1.44 Inch TFT Lcd Screen TFT Display Module 128X128 Dots SPI Interface Driving IC ST7735S
1.44 Inch TFT Lcd Screen TFT Display Module 128X128 Dots SPI Interface Driving IC ST7735S
Specifications
Brand Name :
Limito
Model Number :
LHS144KV-PG03
Place of Origin :
China
Certification :
RoSH, Reach
MOQ :
10pcs
Price :
Negotiable
Packaging Details :
Cartons, Capboard, EPE, Blister Tray.
Delivery Time :
3-5days
Payment Terms :
T/T, Paypal
Supply Ability :
7kk/M
Diagonal Screen Size :
1.44
Drive IC :
ST7735S
Interface :
4 Line SPI
Operating Temp :
-20℃~ +70℃
Storage Temp :
-30℃~+ 80℃
Backlight :
2 White LED
Brightness :
380
Description

1.44 Inch TFT Display Module 128X128 Dots SPI Interface Driving IC ST7735S

LIMITO IPS TFT LCD Display Description:

LHS144KV-PG03 is a 128RGBX128 dot-matrix TFT LCD module. This module is composed of a TFT

LCD Panel, driver ICs, FPC and a Backight unit

LIMITO IPS TFT LCD Display Specification:

LCD Size

1.44

Display Mode

Normally White

Resolution

128(H)RGB x128(V)

Pixel pitch

0.1992(H) x 0.207(M)

Active area
25. 4976(H) x 26. 496(V)

Module size

27.9(H) x 32.64(V) x2.11 (D)

Pixel arrangement

RGB Vertical stripe

Display Colors

262K

Luminance(cd/m2)

380 (TYP)Cd/m2

Viewing Direction
All View

Weight

3.1g

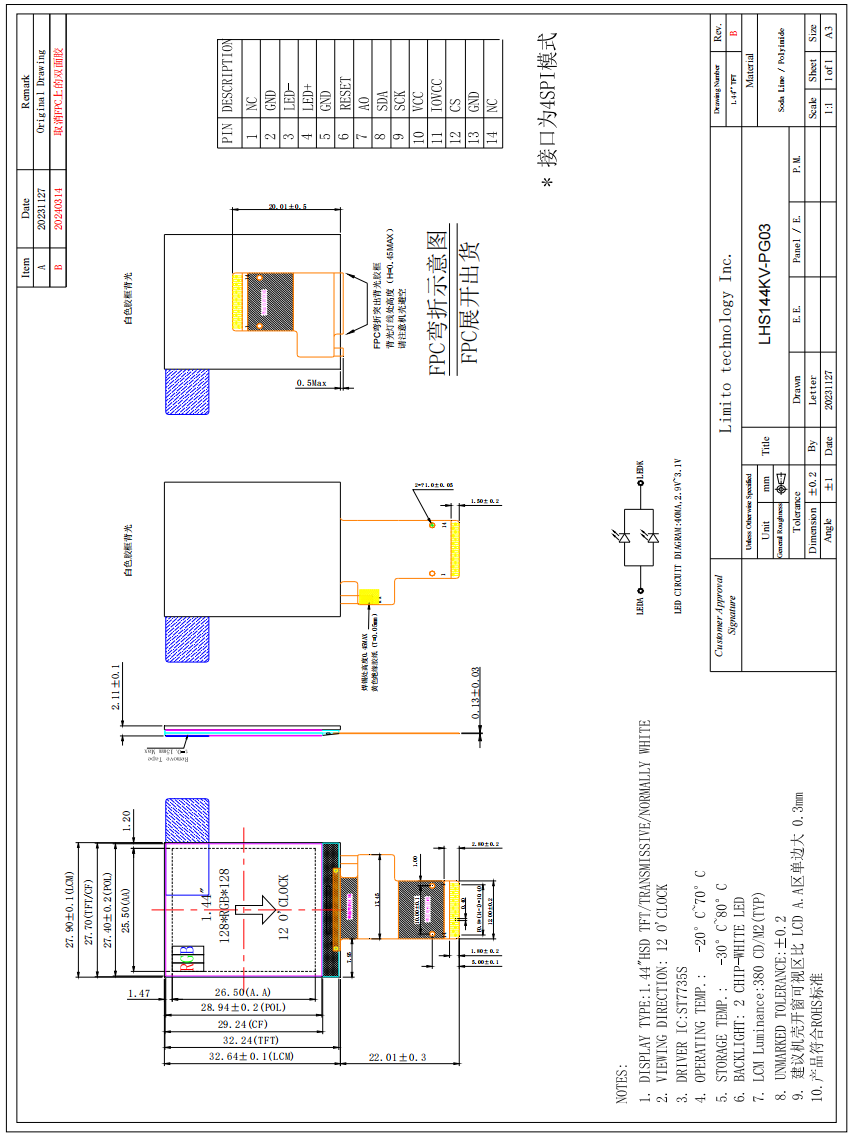

LIMITO IPS TFT LCD Display Mechanical Drawing

1.44 Inch TFT Lcd Screen TFT Display Module 128X128 Dots SPI Interface Driving IC ST7735S

LIMITO IPS TFT LCD Display Advantages:

1. Compact Size

Ideal for space-constrained applications, such as wearables, handheld devices, and small gadgets.

2. Decent Resolution

The 128x128 pixel resolution provides adequate clarity for displaying graphics, icons, and text.

3. SPI Interface

The Serial Peripheral Interface (SPI) allows for fast communication with microcontrollers, enhancing data transfer efficiency.

4. Color Depth

Supports vibrant colors, improving visual quality and making interfaces more engaging.

5. Low Power Consumption

Energy-efficient design, making it suitable for battery-powered applications.

6. Easy Integration

Compatible with various microcontrollers and development platforms, facilitating quick and straightforward implementation.

7. Wide Operating Temperature Range

Can operate effectively in diverse environments, suitable for industrial and outdoor applications.

8. Fast Refresh Rate

Ensures smooth transitions and reduces motion blur, enhancing the user experience.

9. Cost-Effective

Provides a balance between price and performance, making it accessible for various projects.

10. Durability

Generally robust, resistant to shock and vibration, enhancing reliability in various applications.
