Specifications
Brand Name :
Limito
Model Number :
LCS177KP-PG02
Place of Origin :
China
Certification :
RoSH, Reach
MOQ :
10pcs
Price :
Negotiable
Packaging Details :
Cartons, Capboard, EPE, Blister Tray.
Delivery Time :
3-5days
Payment Terms :
T/T, Paypal
Supply Ability :
7kk/M
Diagonal Screen Size :
1.77
Drive IC :
ST7735S
Interface :
4 Line SPI
Operating Temp :
-20℃~ +70℃
Storage Temp :
-30℃~+ 80℃
Backlight :
2 White LED
Brightness :
300
Description

1.77 Inch TFT Display Module 4SPI Interface TFT LCD Module 128*160 Pixels

LIMITO IPS TFT LCD Display Description:

LCS177KP-PG02 is a 128RGBX160 dot-matrix TFT LCD module. This module is composed of a TFT
LCD Panel, driver ICs, FPC and a Backlight unit

LIMITO IPS TFT LCD Display Specification:

LCD Size

1.77

Display Mode

Normally White

Resolution

128(H)RGB x160(M)

Pixel pitch

0.073(H) x 0.219(V)

Active area
28.032(H) x 35.04(V)

Module size

33.6(H) x 42.75(V) x2.28 (D)

Pixel arrangement

RGB Vertical stripe

Display Colors

262K

Luminance(cd/m2)

300 (TYP)Cd/m2

Viewing Direction
All View

Weight

5.3g

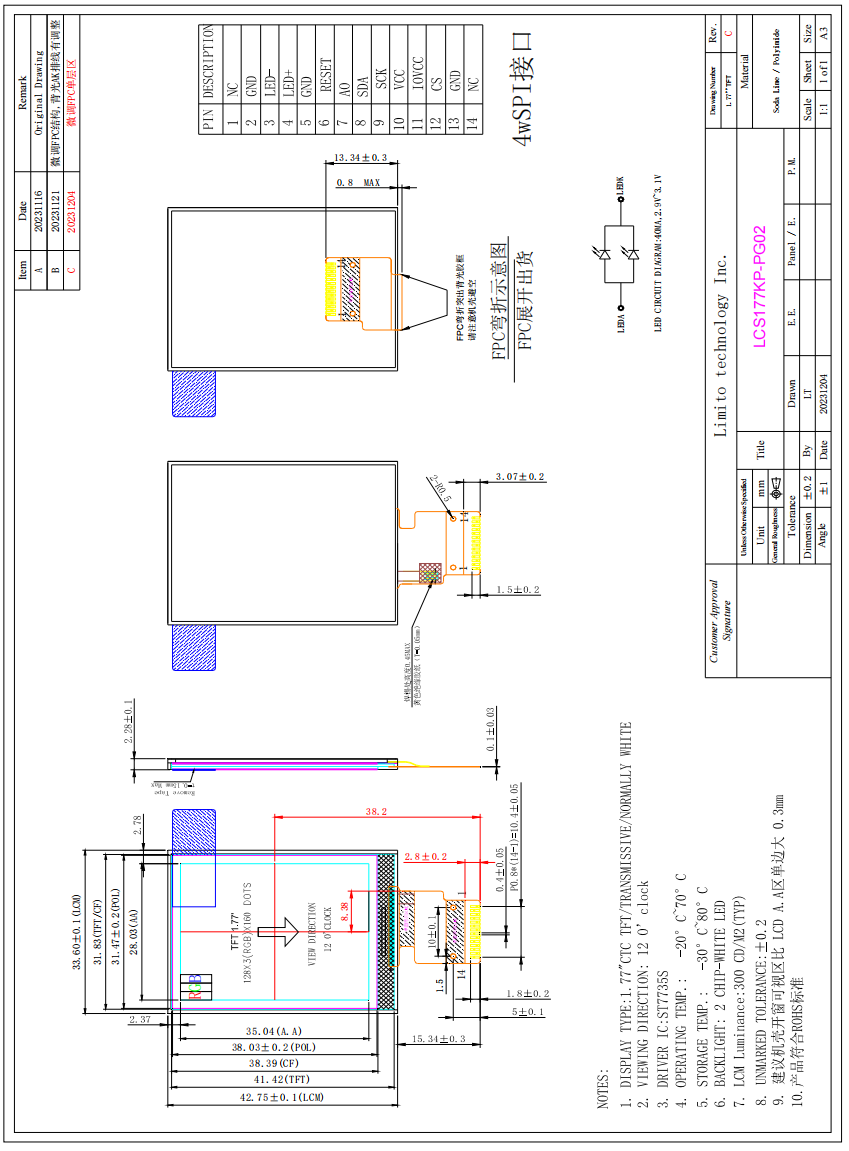

LIMITO IPS TFT LCD Display Mechanical Drawing

1.77 Inch TN TFT Display 4SPI Interface TFT Lcd Panel 128*160 Pixels

LIMITO IPS TFT LCD Display Advantages:

1. Compact Size

Perfect for small devices, wearables, and handheld electronics where space is limited.

2. Decent Resolution

The 128x160 pixel resolution provides clear visuals suitable for displaying graphics and text.

3. 4SPI Interface

The 4-wire SPI interface allows for faster data transfer, improving responsiveness and performance.

4. Vibrant Colors

Delivers bright and rich colors, enhancing the visual appeal of user interfaces.

5. Low Power Consumption

Designed for energy efficiency, making it ideal for battery-operated devices.

6. Easy Integration

Compatible with a wide range of microcontrollers and development platforms, simplifying the design process.

7. Wide Viewing Angles

Maintains image quality from various angles, enhancing usability in different settings.

8. Fast Refresh Rate

Offers smooth transitions and reduces motion blur, improving the overall user experience.

9. Cost-Effective

Provides a balance of affordability and performance, making it accessible for various projects.

10. Durable Design

Typically robust and resistant to environmental factors, increasing reliability in various applications.
