13.75mm F3.5 M12 Telephoto Lens 35 Deg FOV Low Distortion Face Recognition Security Camera Long Range Surveillance
13.75mm F3.5 M12 Telephoto Lens 35 Deg FOV Low Distortion Face Recognition Security Camera Long Range Surveillance
13.75mm F3.5 M12 Telephoto Lens 35 Deg FOV Low Distortion Face Recognition Security Camera Long Range Surveillance
13.75mm F3.5 M12 Telephoto Lens 35 Deg FOV Low Distortion Face Recognition Security Camera Long Range Surveillance
13.75mm F3.5 M12 Telephoto Lens 35 Deg FOV Low Distortion Face Recognition Security Camera Long Range Surveillance
13.75mm F3.5 M12 Telephoto Lens 35 Deg FOV Low Distortion Face Recognition Security Camera Long Range Surveillance
13.75mm F3.5 M12 Telephoto Lens 35 Deg FOV Low Distortion Face Recognition Security Camera Long Range Surveillance
13.75mm F3.5 M12 Telephoto Lens 35 Deg FOV Low Distortion Face Recognition Security Camera Long Range Surveillance
13.75mm F3.5 M12 Telephoto Lens 35 Deg FOV Low Distortion Face Recognition Security Camera Long Range Surveillance
13.75mm F3.5 M12 Telephoto Lens 35 Deg FOV Low Distortion Face Recognition Security Camera Long Range Surveillance
13.75mm F3.5 M12 Telephoto Lens 35 Deg FOV Low Distortion Face Recognition Security Camera Long Range Surveillance
13.75mm F3.5 M12 Telephoto Lens 35 Deg FOV Low Distortion Face Recognition Security Camera Long Range Surveillance
Specifications
TTL :
15 Plus Minus 0.3mm
Model Number :
OKS-9050M12-B23
Certification :
CE,ISO
Waterproof Level :
IP68
Field of View :
35 Degree Diagonal
MOQ :
100 PCS
Place of Origin :
CHINA
Delivery Time :
Sample Within 7 Days
Supply Ability :
100K Pcs/month
FOV :
H: 30.8° V: 17.6° D: 35°
Flange Back Focal Length :
1.88mm
TV Distortion :
-1.30 Percent
Focus Range :
0.2M To Infinity
Focal Length :
13.75mm
F/No :
F3.5
Lens Structure :
5G+IR
Max Image Circle :
9.0mm
Mount :
M12
Operating Temperature :
-40 to 85 Degree
Brand Name :
OKSEE
CRA :
Less Than 10.9 Degree
Sensor Compatibility :
1/1.8 Inch Sensor
Application :
Face Recognition, Security Surveillance, License Plate Recognition
Price :
Negotiable Price Based On Qty
Focal-Length :
13.75mm
Waterproof Grade :
IP68
Description
Product Description:

OKS‑9050M12‑B23 is compact fixed‑focus M12 industrial optical lens designed for 1/1.8” image sensors. Adopting 5‑glass optical structure with IR coating, it features low TV distortion ‑1.30%, small CRA＜10.9°, stable imaging performance from‑40℃ to +85℃. Miniature TTL only 15mm, ideal for space‑limited embedded machine‑vision & surveillance camera modules.


Features:

Low TV Distortion ‑1.30% Low distortion performance reduces image warping, ensures accurate measurement for industrial inspection tasks.

✅ Strict CRA Control ＜10.9° Well‑matched chief ray angle, effectively eliminate vignetting, dark corners and color shift at image edges.

✅ Compact M12*0.5 Mini Size Total length only 15mm, front diameter Ø6.5mm, perfect for compact camera module integration.

✅ Wide Working Temperature‑40℃~+85℃ Industrial grade design, no focal shift under extreme cold & hot environment.

✅ 5G+IR Optical Structure Multi‑layer anti‑reflection IR coating, improve light transmittance, support day‑night imaging.


Technical Parameters:
Focal Length13.75mm
F NoF3.5
FOV (Field of View)1/1.8" H: 30.8° V: 17.6° D: 35°
TTL15±0.3 Mm
MAX Image Circle9.0mm
CRA<10.9°
Focus Range0.2M To Infinity
Waterproof LevelIP68
TV Distortion-1.30%
Flange Back Focal Length1.88mm
MountM12
Operating Temperature-40°t~+85°t

Applications:
  • Industrial machine-vision precision inspection
  • Embedded vision camera module
  • Intelligent security surveillance
  • Logistics barcode scanning
  • Robot visual sensing
  • Traffic auxiliary monitoring
  • Face recognition access control system
  • License plate recognition camera
  • Long range perimeter security surveillance
  • Smart city traffic monitoring
  • Parking lot and entrance surveillance
  • AI smart camera for object detection
  • Warehouse and factory security monitoring

Customization:

Custom Lens Design: We customize focal length, aperture, FOV, lens structure, distortion, CRA, filter, coating and image circle to match mainstream CMOS sensors for surround view and surveillance cameras.

Mechanical Structure Customization: We customize barrel TTL, front diameter, waterproof grade, mount holder, back focal length, focus range and wide-temperature resistant housing.

OEM Lens Customization: We offer laser logo engraving, customized barrel colors and exclusive private model codes for OEM branding.

Packaging Customization: We customize inner bags, export cartons and branded color boxes with multi-language instructions.

Contact us for custom optical lens requirements, MOQ details and free sample testing.

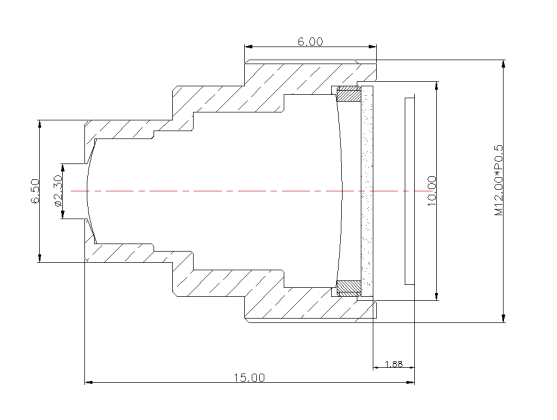

>Lens Drawing:

13.75mm F3.5 M12 Telephoto Lens 35 Deg FOV Low Distortion Face Recognition Security Camera Long Range Surveillance


Packing and Shipping:

Our Security Camera Lens is carefully packaged to ensure it arrives in perfect condition. Each lens is securely placed in a protective foam insert within a sturdy box to prevent any damage during transit. The packaging is designed to shield the lens from dust, moisture, and impact.

For shipping, we use reliable carriers with tracking options to provide you with real-time updates on your order status. We offer various shipping methods to accommodate your needs, including standard, expedited, and express delivery. Each package is handled with care to guarantee timely and safe delivery to your doorstep.
