O KS-G6020-M12 is cost-effective 2MP M12 board lens specially designed for AHD analog CCTV surveillance cameras, bullet/dome analog security camera modules. Made of premium 4G all-glass optical structure, it supports 1/3" and 1/2.7" image sensors to deliver sharp 2-megapixel analog image. 6.0 mm focal length with F2.0 aperture provides 65° diagonal field-of-view (H56°,V32°), well-suited for medium-range monitoring scenarios such as store aisle, building entrance, corridor and parking lot. Compact mechanical size Φ14*16.8 mm and only 10g weight simplify structural assembly. Back focal length 6.1±0.5 mm brings convenient focus tuning during camera module production. Wide operating temperature-20℃~+80℃ ensures reliable imaging performance for indoor and outdoor AHD analog surveillance equipment for OEM mass production.

1. M12x0.5-6g standard mount, compatible with 1/3" &1/2.7" sensors, perfect for 2MP AHD analog security camera
2. 6.0mm fixed focal length, F2.0 aperture, diagonal 65° FOV(H:56°,V:32°), ideal for medium-distance monitoring
3. 4G all-glass optical structure, stable image performance, good day-night imaging for analog AHD system

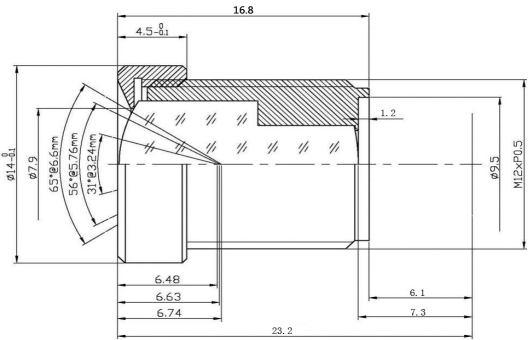

4. Compact dimension Φ14*16.8mm, light weight only 10g, easy for camera housing integration
5. Back focal length 6.1±0.5 mm, convenient focus adjustment during module assembly 6.-20℃~+80℃ wide operating temperature, stable output for indoor & outdoor AHD CCTV mass-production

1. AHD Analog CCTV Camera: 2MP AHD bullet camera, dome analog surveillance camera
2. Commercial Surveillance: Retail shop, office, corridor, building entrance monitoring
3. Home Security: Indoor & outdoor analog security camera system
4. Industrial onsite monitoring: Factory workshop, warehouse medium-distance observation
5. OEM Module: AHD camera board module integration for analog security solution

Optical parameter customization .We customize focal length, aperture, FOV, lens structure, distortion, CRA, filter, coating and image circle to match all mainstream CMOS sensors for surround view and surveillance cameras. Mechanical structure customization.We customize barrel TTL, front diameter, waterproof grade, mount holder, back focal length, focus range and wide-temperature resistant housing. OEM brand & appearance customization.We offer laser logo engraving, customized barrel colors and exclusive private model codes for OEM branding. Packaging customization.We customize nner bags, export cartons and branded color boxes with multi-language instructions available.

Our Security Camera Lens is carefully packaged to ensure maximum protection during transit. Each lens is securely placed in a custom-designed foam insert within a sturdy, impact-resistant box to prevent any damage.

The packaging includes anti-static materials to protect the lens from dust and static electricity. Additionally, a clear instruction manual and warranty card are included inside the package.

For shipping, we use reliable carriers with tracking options to guarantee timely and safe delivery. All shipments are insured and handled with care to ensure the product arrives in perfect condition.

Bulk orders are packaged in reinforced cartons with additional padding to safeguard multiple units during transport.
