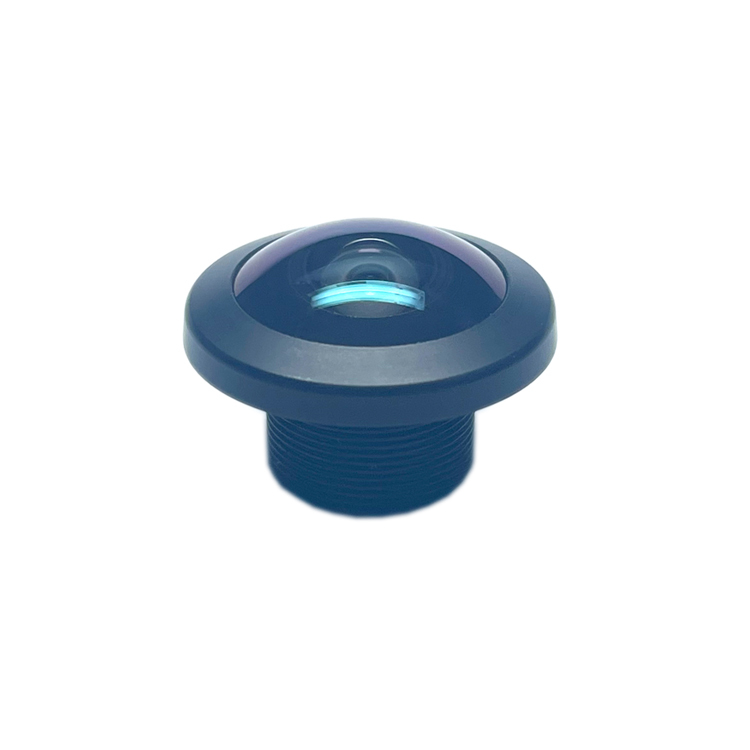

This OKS-3074-A7-940 8MP ultra-wide fisheye M12 lens is professionally designed for high-end panoramic security, industrial vision, outdoor surveillance and IR night vision applications. It adopts premium 6G+IR all-glass optical design with multi-layer AR coating to boost light transmittance, delivering 8MP ultra-sharp, wide-angle footage that meets the strict imaging requirements of panoramic monitoring and high-precision industrial inspection.

Equipped with 1.87mm fixed focal length and F2.0 large aperture, it realizes 200° ultra-wide diagonal and horizontal viewing angle, which can fully cover the entire monitoring area with no blind spots, effectively improve the surveillance coverage and reduce the number of cameras needed. The built-in 940nm infrared filter is optimized for IR night vision monitoring, perfectly matched with 940nm infrared fill light to deliver clear night vision images without visible red glow, ensuring covert surveillance at night.

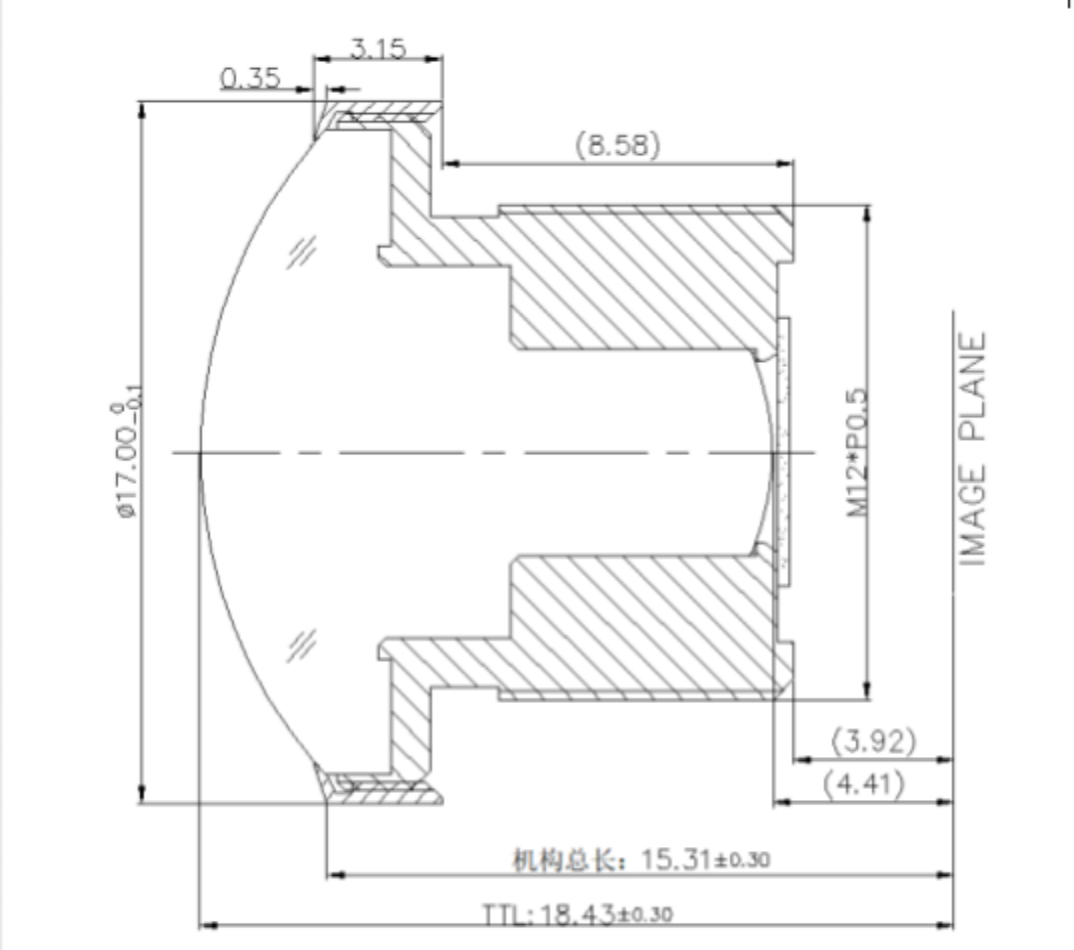

The IP69 highest-level waterproof design can withstand high-pressure water jets and harsh outdoor environments, paired with -40℃~+85℃ wide temperature structure, supporting stable operation in extreme weather and industrial conditions. The compact 18.43mm TTL barrel design is easy to install in various camera housings and industrial equipment. Standard M12 thread mount for easy assembly on all kinds of 8MP panoramic camera modules, industrial vision systems and outdoor surveillance equipment.

• Fisheye Camera Lens with a CRA of 20.3° for ultra-wide angle capture
• High Relative Illumination of 46% ensuring bright and clear images
• Waterproof Level rated at IP69K, making the Fisheye Camera Lens suitable for harsh environments
• Optical Back Focal Length of 4.41mm for precise focusing
• Compatible with M12 mount for easy installation and versatility
• Durable and reliable Fisheye Camera Lens designed for professional and enthusiast photographers

1. High-End Security Surveillance: 8MP panoramic IP camera, 360° fisheye security camera, outdoor waterproof monitoring, parking lot, factory, warehouse all-weather surveillance, perimeter security system
2. Industrial Vision: Industrial panoramic inspection camera, factory automation monitoring, equipment status surveillance, logistics warehouse panoramic scanning, production line wide-area monitoring
3. IR Night Vision Monitoring: 940nm IR night vision camera, covert surveillance camera, zero red glow night vision system, 24/7 continuous monitoring equipment, low-light industrial inspection
4. Outdoor & Harsh Environment: Marine surveillance camera, port & dock monitoring, mining equipment camera, construction site panoramic camera, agricultural outdoor monitoring, solar farm surveillance
5. Smart Building & Smart City: Building panoramic monitoring, elevator fisheye camera, hallway panoramic camera, smart city surveillance node, public area wide-angle monitoring
6. Automotive & Transportation: High-end 360 AVM surround view camera, commercial vehicle panoramic monitoring, bus/truck safety camera, railway station panoramic surveillance

Optical parameter customization .We customize focal length, aperture, FOV, lens structure, distortion, CRA, filter, coating and image circle to match all mainstream CMOS sensors for surround view and surveillance cameras.
Mechanical structure customization.We customize barrel TTL, front diameter, waterproof grade, mount holder, back focal length, focus range and wide-temperature resistant housing.
OEM brand & appearance customization.We offer laser logo engraving, customized barrel colors and exclusive private model codes for OEM branding.
Packaging customization.We customize nner bags, export cartons and branded color boxes with multi-language instructions available.

Product Packaging: The Fisheye Camera Lens is securely packaged in a compact, durable box designed to protect the lens during transit. Inside, the lens is cushioned with foam inserts to prevent any movement or damage. The package includes the fisheye lens, a protective lens cap, a cleaning cloth, and a user manual for easy setup and usage.

Shipping: We offer fast and reliable shipping services worldwide. Orders are processed within 1-2 business days and shipped via trusted carriers with tracking information provided. The Fisheye Camera Lens is carefully handled to ensure it arrives in perfect condition. Shipping options include standard, expedited, and express delivery to meet your needs.
