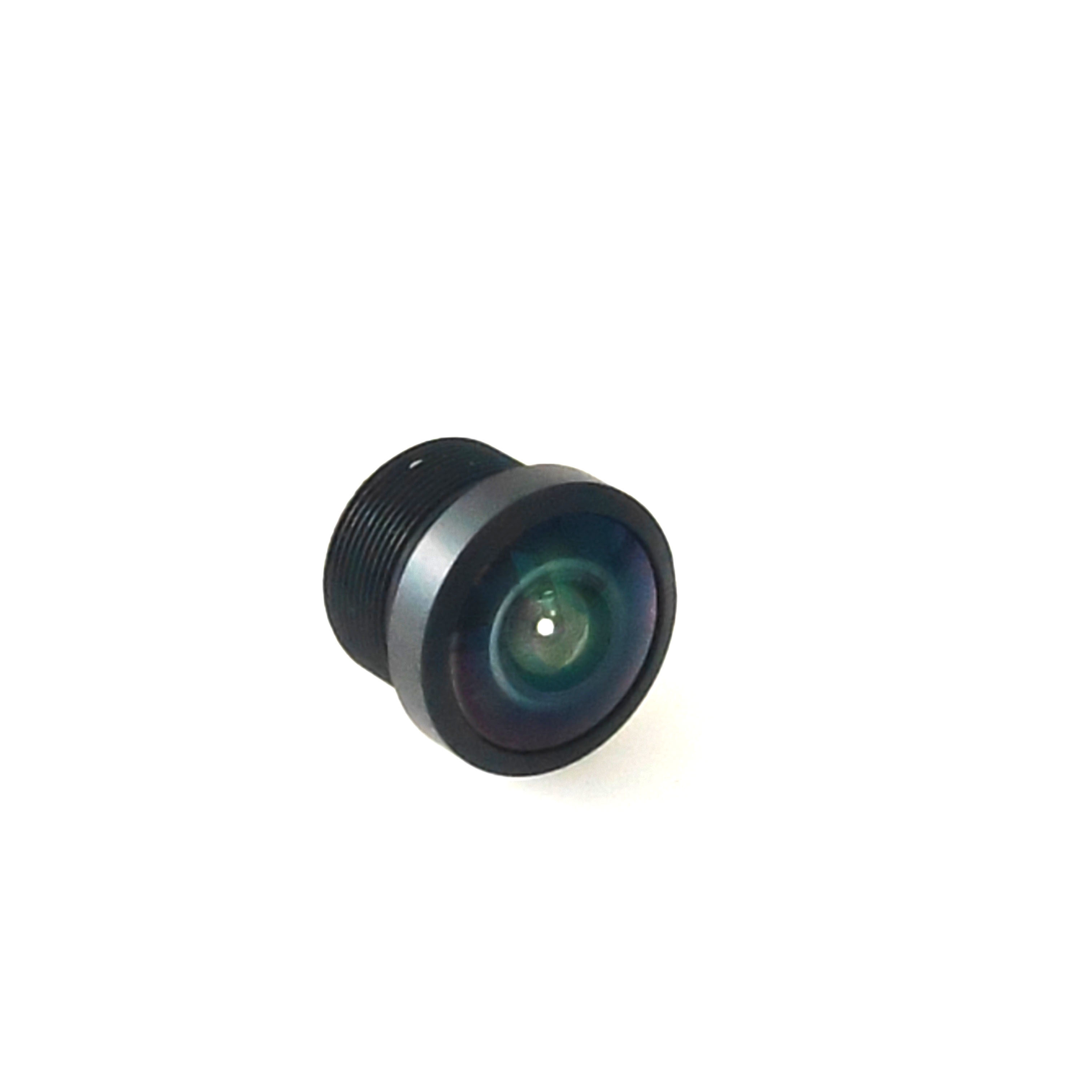

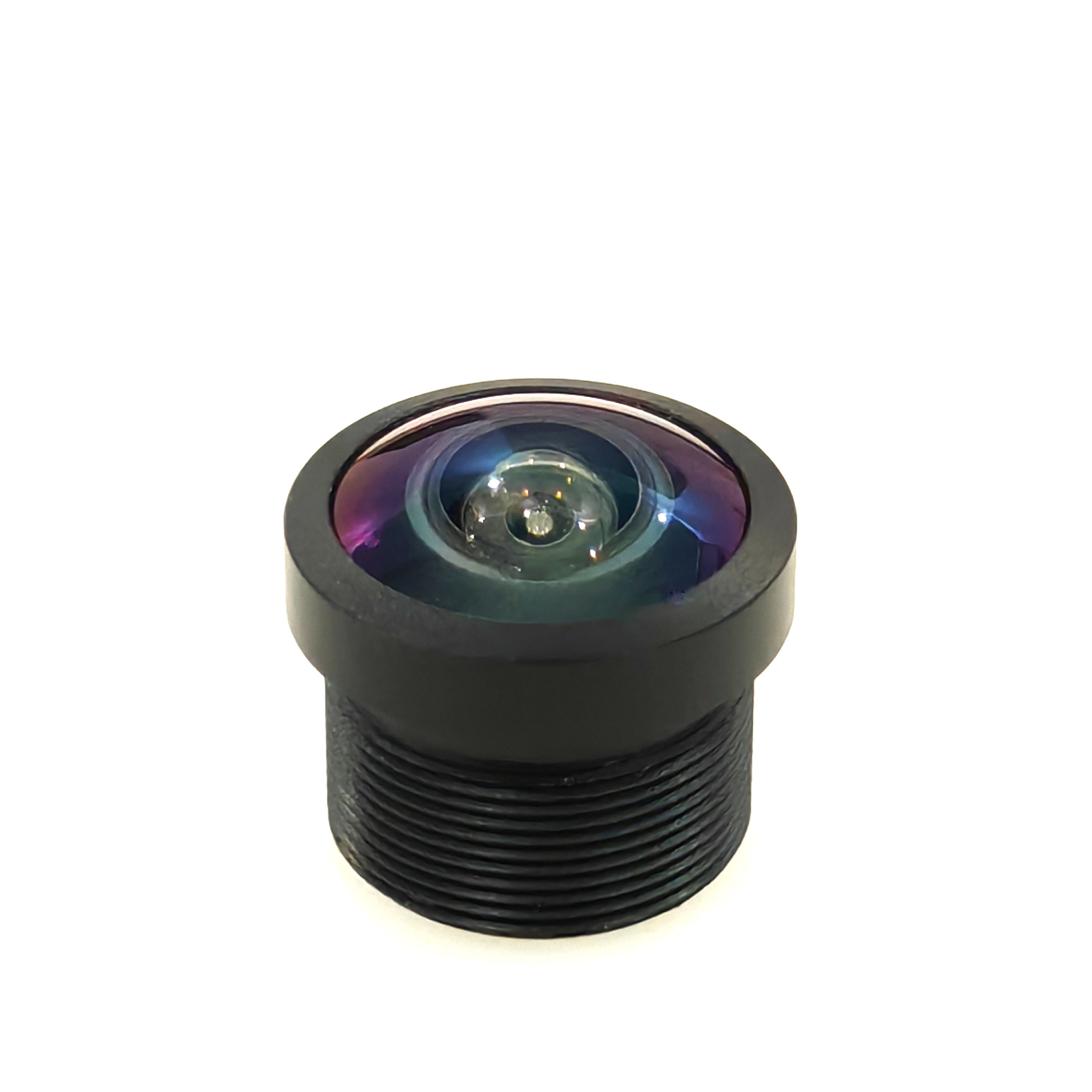

This OKS-3627-A4-650 ultra-wide fisheye M12 lens is professionally designed for 360° panoramic monitoring, automotive surround view, VR/AR panorama, industrial vision and security surveillance applications. It adopts premium 2G4P+IR optical design with multi-layer AR coating to boost light transmittance, matched with 650nm infrared cut filter to restore true color in daytime, and achieves full frame no dark corner, no vignetting in the entire ultra-wide field of view.

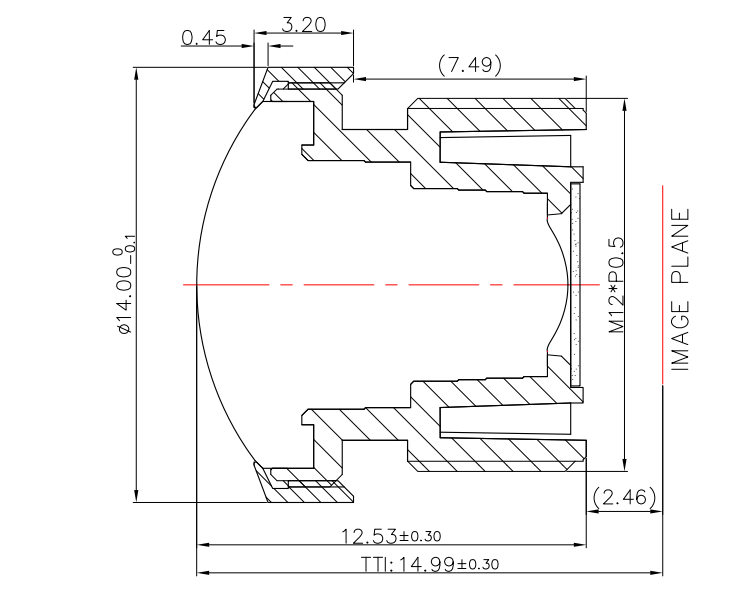

Equipped with 1.49mm fixed focal length and F2.0 large aperture, it realizes up to 210° ultra-wide diagonal viewing angle with ultra-low distortion -0.345°, perfectly matched with 1/2.8", 1/2.9" and 1/3" CMOS sensors to complete full panoramic monitoring with no blind spots. The compact TTL 15mm barrel design with front Ø14.0mm size is easy to install and hide, with a wide operating temperature range of -40℃~+85℃ to adapt to harsh industrial, outdoor and automotive environments. Standard M12 thread mount for easy assembly on all kinds of camera modules.

• Standard M12×0.5 mount, widely compatible with 1/2.8", 1/2.9", 1/3" CMOS sensors, perfectly matched for 360° surround view cameras, panoramic security systems, VR/AR equipment and industrial vision modules
• Ultra-wide diagonal FOV up to 210° (1/2.8" sensor), 205° for 1/2.9" sensor, 200° for 1/3" sensor, achieves full panoramic monitoring with no blind spots, ideal for fisheye panorama and 360° surround view applications
• 2G4P+IR professional optical structure with multi-layer anti-reflection coating, 650nm IR cut filter included, delivers sharp clear footage day and night, full frame no dark corner, no vignetting in the entire field of view
• F2.0 large aperture with high light intake, excellent low-light performance, ensures clear imaging even in dim indoor and outdoor environments, meets the high-precision imaging requirements of panoramic monitoring algorithms
• Ultra-low TV distortion -0.345°, restores real scene details while maintaining the ultra-wide fisheye viewing angle, improves the accuracy of panorama stitching and algorithm recognition
• Max CRA <18.5°, uniform brightness across the entire image frame, no dark edge at the four corners, focus range 0.6m to infinity, captures clear details of both near and far objects
• Wide operating temperature -40℃~+85℃, stable optical performance in extreme cold and high temperature environments, fully RoHS compliant, meets industrial and automotive grade requirements

This Fisheye Camera Lens offers excellent optical performance with a wide field of view and durable waterproof level, making it an ideal choice for various applications. The Fisheye Camera Lens features a 650nm IR filter, 1.49mm focal length, and a distortion rate of -34.5%, ensuring superior imaging quality. With a relative illumination of 60% and an IP69K waterproof rating, this Fisheye Camera Lens is built to withstand challenging environments while delivering outstanding results.

Automotive Electronics: 360° vehicle surround view system, car reversing camera, ADAS auxiliary monitoring, truck/bus panoramic monitoring, DMS driver monitoring

Security Surveillance: Fisheye panoramic IP camera, 360° panoramic monitoring, home security, store/office panoramic monitoring, parking lot/factory all-weather surveillance

VR/AR & Panorama: VR panoramic camera, 360° panorama equipment, panoramic live streaming, virtual reality imaging equipment

Industrial Vision: Mini industrial inspection camera, robot vision module, logistics scanning equipment, industrial panoramic monitoring

Smart Home & Commercial: Smart doorbell, access control recognition camera, conference room panoramic camera, retail store customer flow analysis equipment

.Optical parameter customization .We customize focal length, aperture, FOV, lens structure, distortion, CRA, filter, coating and image circle to match all mainstream CMOS sensors for surround view and surveillance cameras.

Mechanical structure customization.We customize barrel TTL, front diameter, waterproof grade, mount holder, back focal length, focus range and wide-temperature resistant housing.

OEM brand & appearance customization.We offer laser logo engraving, customized barrel colors and exclusive private model codes for OEM branding.

Packaging customization.We customize nner bags, export cartons and branded color boxes with multi-language instructions available.
