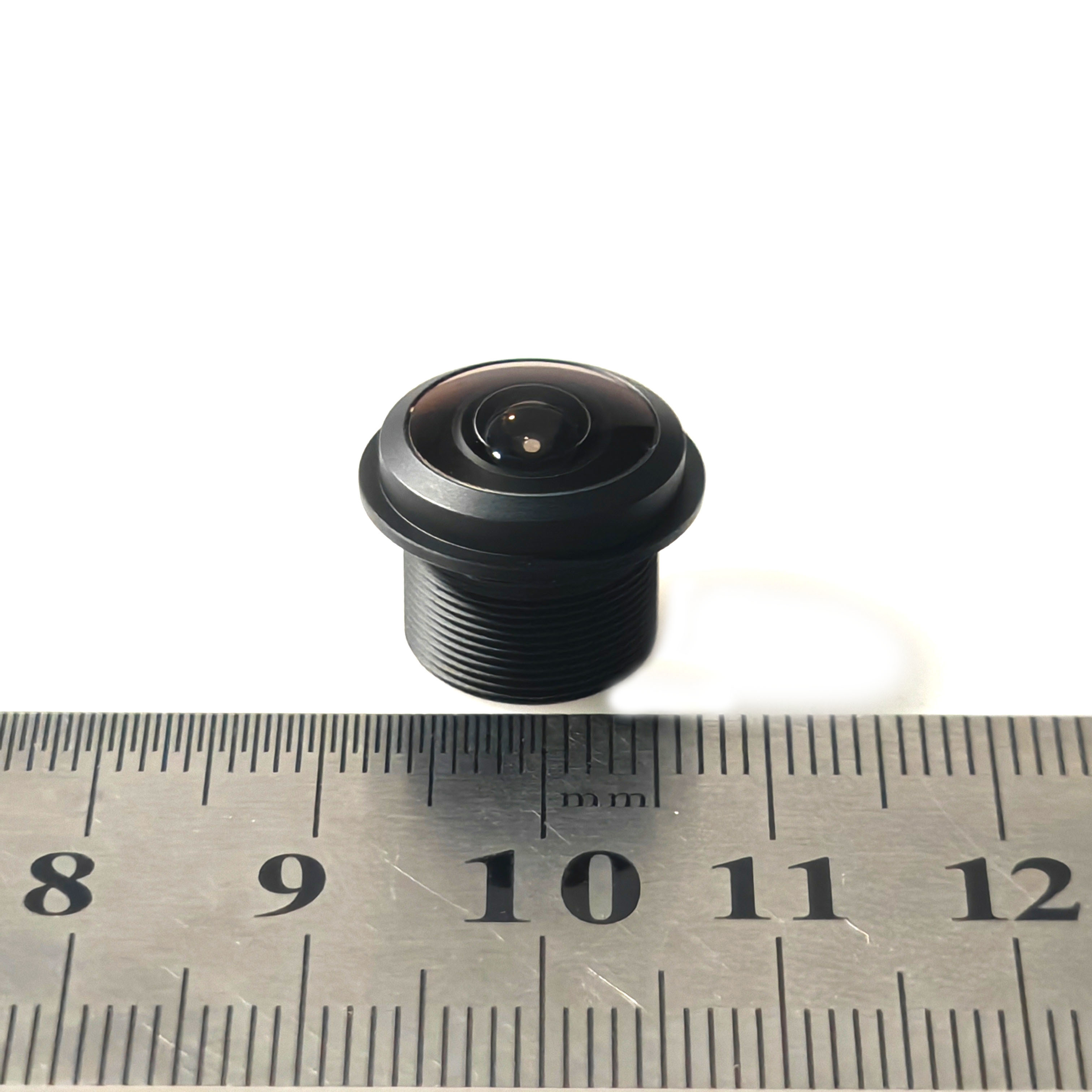

OKS-3003 is a professional M12 wide-angle lens specially developed for automotive 360 AVM surround view monitoring system.

Adopting premium 6G+IR all-glass optical design with multi-layer anti-reflection coating, it delivers uniform full-frame brightness with 58% relative illumination. 1.78mm focal length and F2.0 aperture bring 174° diagonal ultra-wide field of view to completely cover vehicle surroundings and remove blind spots.

Optimized F-Tan distortion curve greatly simplifies panoramic stitching algorithm workload. IP67 waterproof housing adapts outdoor mounting on car bumpers and side mirrors. With wide temperature range -40℃~+85℃ and shock-resistant mechanical structure, it maintains stable imaging under all weather and road conditions. Standard M12 thread mount supports mass assembly of sedan, SUV, truck and engineering vehicle AVM camera modules.

• Product Name: Surround View Camera Lens
• Focal Length: 1.78mm for precise image capture

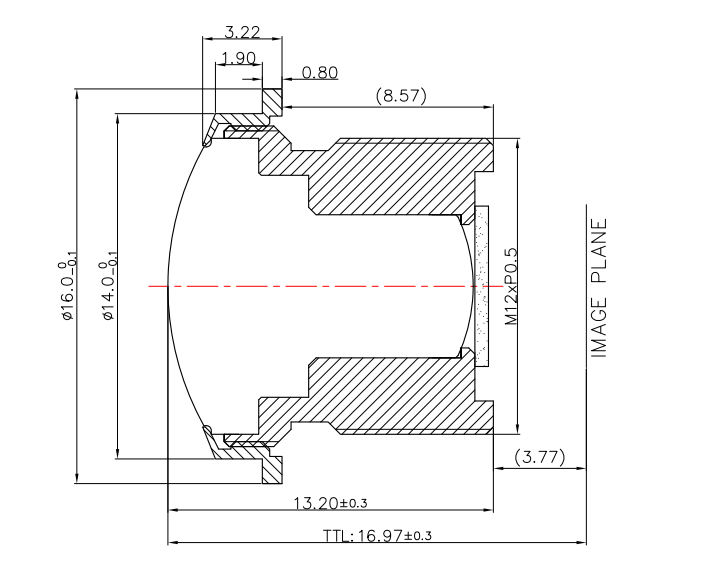

• Flange Back Focal Length: 3.80mm ensuring optimal focus
• Relative Illumination: 58% for consistent brightness across the image
• IR Filter: 650nm to enhance image quality in various lighting conditions
• Field of View (FOV): 1/2.8" sensor size with Horizontal 154°, Vertical 83°, and Diagonal 184° coverage
• Designed specifically for Surround View Camera Lens applications
• Provides a wide-angle perspective ideal for Surround View Camera Lens systems

1. Passenger Car: OEM/retrofit 360 AVM 3D bird view parking assist system
2. Commercial Vehicle: Truck/bus/van blind spot elimination, fleet monitoring DVR
3. Engineering Machinery: Forklift, sanitation truck, excavator all-round safety monitoring
4. New Energy EV: Intelligent cockpit surround view, ADAS auxiliary camera
5. Aftermarket Refit: Universal 4-camera panoramic kit replacement lens

1/2.7" AR0237 (1920*1088) HFOV:160 ° VFOV:87 ° DFOV :190 °
1/2.8" IMX307(1920*1080) HFOV : 154 °, VFOV: 83 °,DFOV: 184 °
1/2.9" GC2053 (1920*1080) HFOV : 148 °, VFOV: 80 °,DFOV: 176 °
1/3" H65(1280* 720 ) HFOV : 131 °, VFOV: 72 °,DFOV: 152 °
1/4" JX-H62 (1280 *720) HFOV : 103°, VFOV: 57 °, DFOV: 120 °
