C6009M8-A2-650# is a 5MP mini M8 fisheye lens designed for panoramic security cameras, video doorbells, peephole cameras and compact IoT monitoring devices.
It adopts 6 full glass + IR filter optical structure with multi-layer anti-reflection coating to boost light transmittance and suppress glare. With fixed 1.78mm focal length and F2.0 aperture, it provides max 180° diagonal field of view to cover wide monitoring range and eliminate dead zones.

Distortion is controlled below 9.2%, delivering natural undistorted images that match AI human detection algorithms well. Mini Φ12 barrel and only 4g weight make it easy to integrate into slim hidden camera housings. Wide temperature tolerance ensures stable imaging for indoor and mild outdoor smart home equipment. Universal M8 thread supports mass OEM production for camera manufacturers..

• M8×0.5-6g thread mount, compatible with 1/3" & 1/4" CMOS sensors
• Up to 180° diagonal ultra wide FOV, full coverage without monitoring blind spots
• 5MP high resolution, 6G+IR all-glass with multi-layer AR anti-reflection coating
• F2.0 large aperture, excellent low-light performance for day & night monitoring
• Optical distortion <9.2%, balanced image without obvious edge stretching

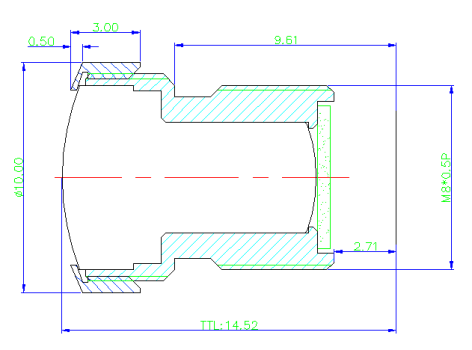

• Ultra compact size: TTL 14.5mm, barrel Φ12×11.8mm, only 4g lightweight
• Stable working temperature -20℃~+80℃, eco-friendly RoHS compliant material

1. Smart Home: WiFi video doorbell, digital peephole camera, indoor panoramic monitor, smart lock built-in lens
2. Mini Security CCTV: Small IP camera, warehouse mini monitoring, retail wide-area surveillance
3. IoT Embedded Vision: Robot camera, mini machine vision, compact IoT camera module
4. Aftermarket Replacement: Spare fisheye lens for small camera kits
5. Light Vehicle Monitoring: Mini dashcam, two-wheeler riding recorder

Optical parameter customization .We customize focal length, aperture, FOV, lens structure, distortion, CRA, filter, coating and image circle to match all mainstream CMOS sensors for surround view and surveillance cameras.
Mechanical structure customization.We customize barrel TTL, front diameter, waterproof grade, mount holder, back focal length, focus range and wide-temperature resistant housing.
OEM brand & appearance customization.We offer laser logo engraving, customized barrel colors and exclusive private model codes for OEM branding.
Packaging customization.We customize nner bags, export cartons and branded color boxes with multi-language instructions available.

1/2.7" AR0237 (1920*1088) HFOV : 200 ° ,VFOV:105 ° , DFOV: 220 ° 1/2.8" IMX307(1920*1080) HFOV : 194 ° VFOV: 101 ° DFOV :200 ° 1/2.9" GC2053 (1920*1080) HFOV : 185 ° VFOV: 97 ° DFOV: 200° 1/3" H65(1280* 720 ) HFOV: 161 ° VFOV : 87 ° DFOV : 192 ° 1/4" JX-H62 (1280 *720) HFOV :126 ° VFOV : 69° DFOV :146 °
