Gray TC Type FKM Rotary Shaft Oil Seals For Hydraulic Machinery
Gray TC Type FKM Rotary Shaft Oil Seals For Hydraulic Machinery
Gray TC Type FKM Rotary Shaft Oil Seals For Hydraulic Machinery
Gray TC Type FKM Rotary Shaft Oil Seals For Hydraulic Machinery
Specifications
Brand Name :
CCO
Model Number :
TC Oil Seal
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000/week
Packaging Details :
Paper+Carton Box
Application :
Sealing of rotating and reciprocating shafts
Usage :
Sealing
Installation Method :
Press-fit
Temperature Range :
-40°C to 120°C
Outer Diameter :
10mm-310mm
Shaft Diameter :
6mm-300mm
Sealing Lip :
Single lip, double lip
Color :
Black And Gray
Description

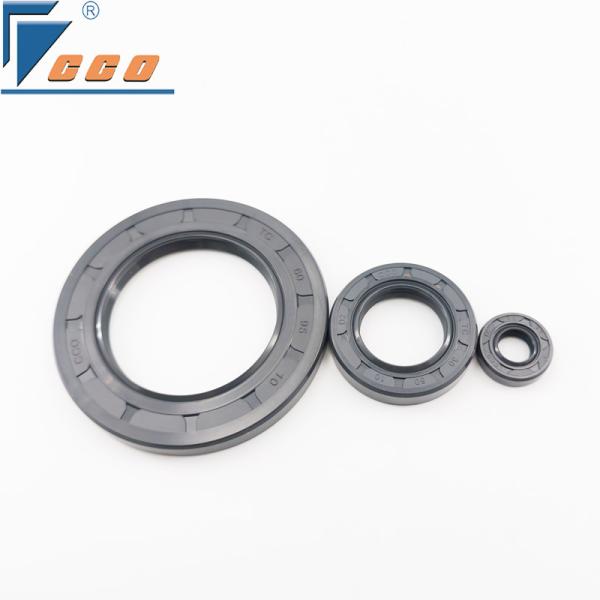

Gray TC Type Oil Seal FKM Rotary Shaft Oil Seals Suitable For Hydraulic Machinery

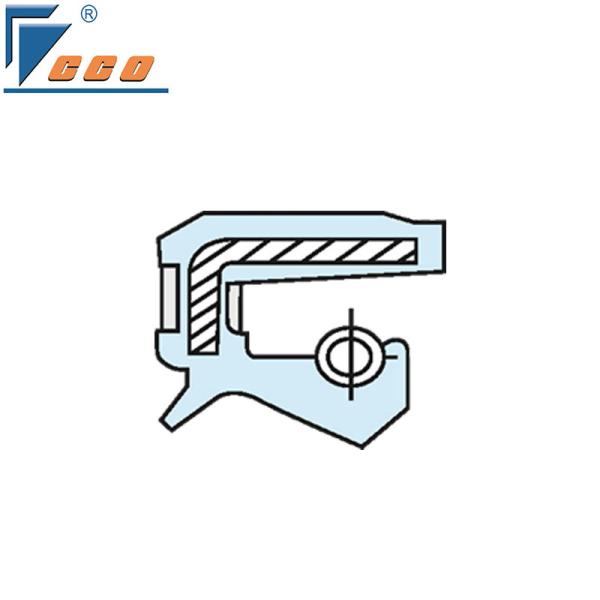

The TC type oil seal features a double-lip design, with the inner lip responsible for sealing the oil and ensuring that the internal lubricant does not leak, while the outer lip provides dust protection, effectively blocking external dust and impurities to form a dual-layer defense.

The metal skeleton provides robust support, ensuring that the oil seal does not deform even after prolonged use. The self-tightening spring ensures that the sealing lips remain in close contact with the shaft, maintaining excellent sealing performance even if the shaft experiences minor displacement or misalignment.

Its specifications cover a wide range of requirements from small equipment to large machinery, accommodating rotating components of various sizes. In terms of materials, in addition to common rubber materials, customization is available for special operating conditions, such as adding special additives to enhance wear resistance. The color is primarily black, but can be customized according to customer requirements.

This oil seal is widely used in the sealing of motor and pump bearings to prevent coolant and lubricant leakage; in wind power equipment, it ensures the sealing of gearboxes to withstand high-altitude complex environments; in hydraulic systems, it ensures the stable operation of hydraulic oil and improves system efficiency.

​

Brand Name

 CCO

Original Place

 Hebei,China

Material

 NBR/FKM/ACM/SILICONE

MOQ

 10 pcs

Sample

 Available

Size

 Standard Specifications

Feature

Oil Resistance, Heat Resistance,Wear Resistance

Features of Oil Seal Materials

MATERIAL FEATURES Temperature

Nitrile Rubbr

(NBR)

Excellent wear resistance

Excellent aging resistance

Excellent Oil resistance

Good water resistance

Fair ozone resistance

Fair acid resistance

 -40~120°C

Fluorinated Rubber

(FKM)

Excellent wear resistance

Excellent aging resistance

Excellent Oil resistance

Good water resistance

Excellent ozone resistance

Excellent acid resistance

 -26~250°C
Silicone Rubber

Poor wear resistance

Excellent aging resistance

Poor Oil resistance

Good water resistance

Excellent ozone resistance

Fair acid resistance

 -60~225°C

Details Images

Gray TC Type FKM Rotary Shaft Oil Seals For Hydraulic Machinery

Gray TC Type FKM Rotary Shaft Oil Seals For Hydraulic Machinery

Product Packaging

Gray TC Type FKM Rotary Shaft Oil Seals For Hydraulic Machinery

Company Introduction

Hebei Xiangte Seal Technology Co., Ltd. is located in Hebei Province, China, with rich experience in the research and development, production and sales of seals.
The company is committed to research and development and solve the problem of sealing and shock absorption of high-end products. Focusing on FKM, NBR special rubber seals and high-performance polyurethane products production and research and development, our company has developed special NBR gray rubber, FKM rubber after many years of experimentation and research , and its resistance to high and low temperatures and a variety of physical properties of the index is far more than the ordinary NBR rubber, the performance is stable and reliable.
