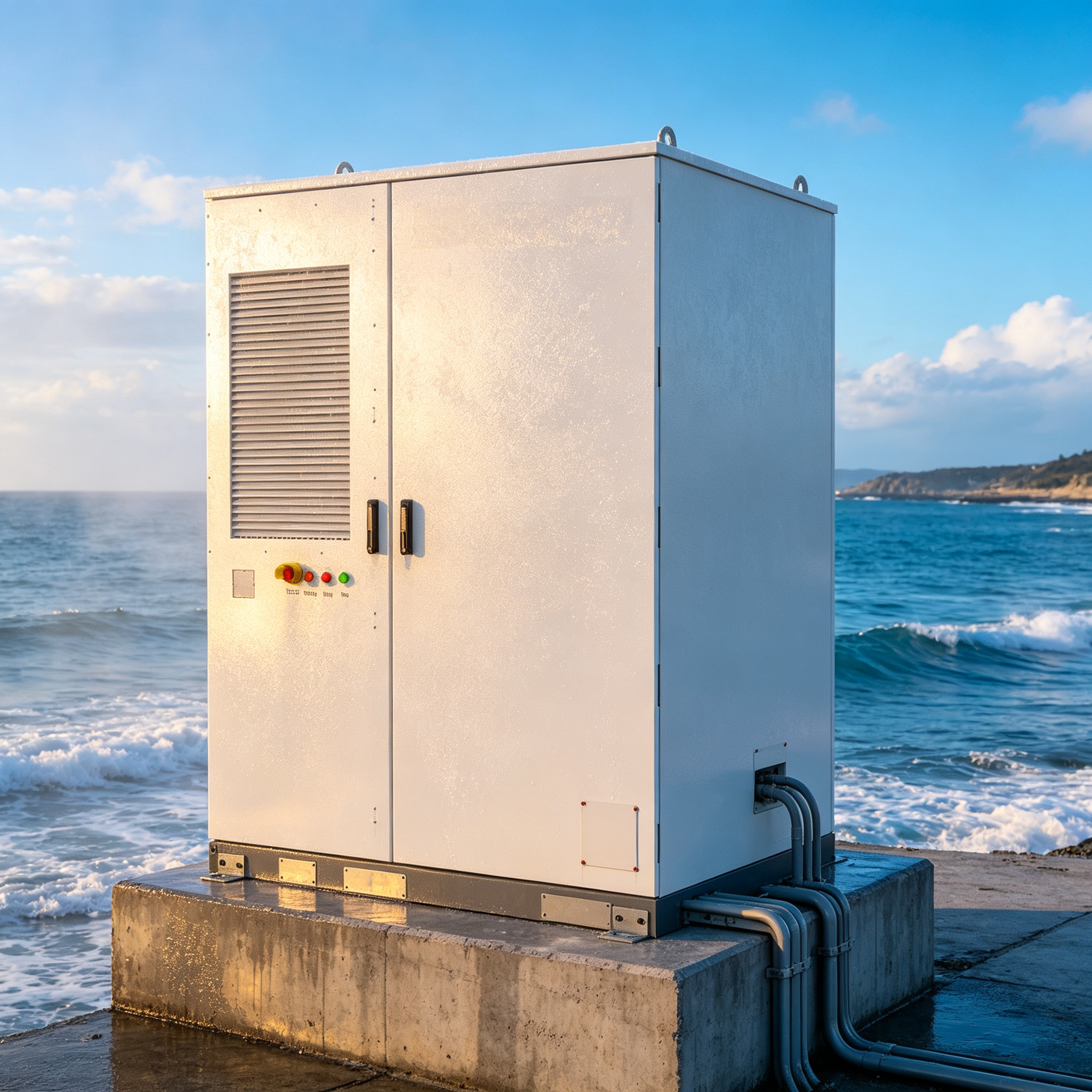

418kWh Liquid Cooling Energy Storage Cabinet with 200kW PCS for Port Shore Power
418kWh Liquid Cooling Energy Storage Cabinet with 200kW PCS for Port Shore Power
418kWh Liquid Cooling Energy Storage Cabinet with 200kW PCS for Port Shore Power
418kWh Liquid Cooling Energy Storage Cabinet with 200kW PCS for Port Shore Power
Specifications
Rated Charge/Discharge Current :
75 Adc
Fire Fighting System :
Aerosol
Relative Humidity :
<=95%, non-condensing
Corrosion Protection Level :
C4
Battery Module Rated Capacity :
52.25 kWh
Communication Interface :
LAN
Payment Terms :
T/T,L/C
Battery Voltage Range :
1164~1497 Vdc
Rated Output Voltage :
690 Vac (3P+PE)
Max Operating Altitude :
4000 m (derating above 2000 m)
Supply Ability :
50 Units per Month
Certification :
CE, IEC 62619, UN38.3, ISO 9001:2015
Cell Type :
LFP (LiFePO4)
Communication Protocol :
MQTT
Place of Origin :
Tianjin, China
Rated Grid Frequency :
50 Hz
Brand Name :
Ohory
Delivery Time :
30-45 days after order confirmation, subject to final configuration
System Rated Capacity :
418 kWh
IP Rating :
Electrical compartment IP54, battery compartment IP55
MOQ :
1 Unit
Rated Power :
200 kW
Cooling Method :
Liquid Cooling
Packaging Details :
Export-grade wooden frame packing with moisture-proof barrier, suitable for sea freight and long-distance transport
System Configuration :
1P416S
Dimensions (W x H x D) :
1650 x 2280 x 1350 mm
Model Number :
ES-BP-1-416-418000-C-Y
Operating Temperature :
-20~50 deg C (derating above 45 deg C)
Price :
USD 48000-58000 / Unit
Battery Rated Voltage :
1331.2 Vdc
Weight :
4040 +/- 20 kg
Max Parallel Units per Busbar :
10
Description
Port Shore Power 418kWh Liquid Cooling Energy Storage Cabinet 200kW PCS LFP Battery Cold Ironing
Product Overview

The 418 kWh liquid cooling energy storage cabinet with a 200 kW PCS at 690 Vac supports port shore power and cold ironing systems, providing a stable power buffer for vessels while they are berthed.

The cabinet smooths the large, fluctuating loads of shipboard power demand and reduces the impact on the port electrical infrastructure, supporting emissions reduction at the quayside.

Key Features
  • Power buffer for port shore power and cold ironing systems
  • 200 kW PCS at 690 Vac for quayside medium voltage supply
  • 418 kWh LFP battery smooths fluctuating vessel loads

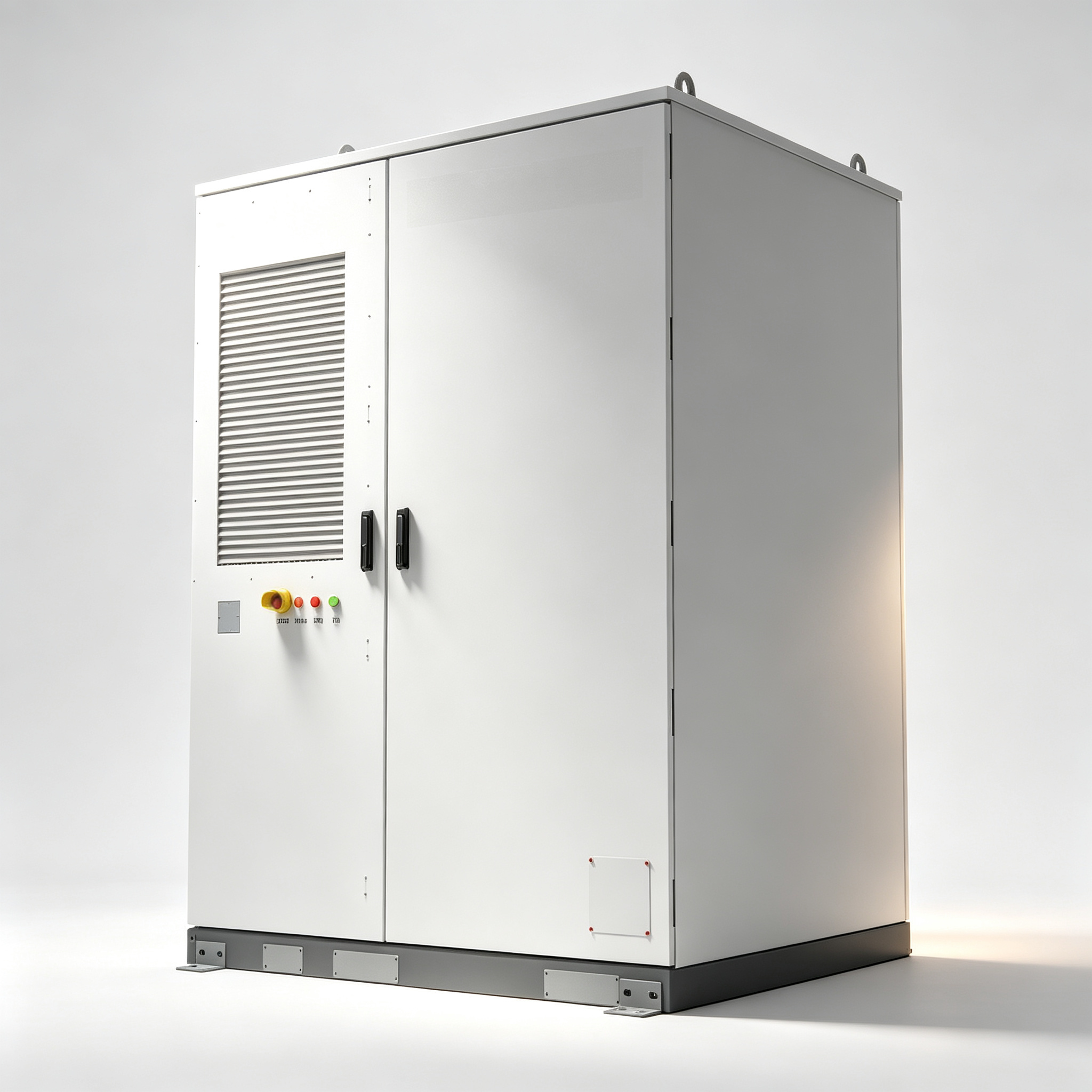

  • C4 corrosion protection for coastal and marine environments
  • Liquid cooling with IP54/IP55 protection for harsh port conditions
  • LAN communication with MQTT protocol for port energy management
Technical Specifications
Cell Type LFP (LiFePO4)
Battery Module Rated Capacity 52.25 kWh
System Configuration 1P416S
Battery Rated Voltage 1331.2 Vdc
Battery Voltage Range 1164~1497 Vdc
System Rated Capacity 418 kWh
Rated Charge/Discharge Current 75 Adc
Rated Power 200 kW
Rated Output Voltage 690 Vac (3P+PE)
Rated Grid Frequency 50 Hz
Connection Method AC bottom feed; auxiliary power 220 Vac L+N
Cooling Method Liquid Cooling
Fire Fighting System Aerosol
IP Rating Electrical compartment IP54, battery compartment IP55
Operating Temperature -20~50°C (derating above 45°C)
Relative Humidity ≤95%, non-condensing
Max Operating Altitude 4000 m (derating required above 2000 m)
Communication Interface LAN
Communication Protocol MQTT
Corrosion Protection Level C4
Weight 4040 ± 20 kg
Dimensions (W x H x D) 1650 x 2280 x 1350 mm
Max Parallel Units per Busbar 10
Typical Applications
  • Port shore power and cold ironing terminals
  • Quayside vessel power supply buffering
  • Coastal and marine energy storage projects
  • Harbor emissions reduction initiatives
The cabinet is rated for operation from -20°C to 50°C with derating above 45°C, supports installation at altitudes up to 4000 m with derating above 2000 m, and is designed for outdoor deployment in C4 corrosion environments. Installation, maintenance and operation must be carried out by qualified technicians in strict compliance with safety regulations.
Ohory is the brand for this 418kWh liquid cooling energy storage cabinet. Contact our sales team for project-specific configuration, grid code compliance documents and a quotation.
