418 kWh Liquid Cooling Energy Storage Cabinet with 100 kW PCS for Hospital Backup Power
418 kWh Liquid Cooling Energy Storage Cabinet with 100 kW PCS for Hospital Backup Power
418 kWh Liquid Cooling Energy Storage Cabinet with 100 kW PCS for Hospital Backup Power
418 kWh Liquid Cooling Energy Storage Cabinet with 100 kW PCS for Hospital Backup Power
Specifications
Rated Charge/Discharge Current :
75 Adc
Fire Fighting System :
Aerosol
Relative Humidity :
<=95%, non-condensing
Corrosion Protection Level :
C4
Certification :
CE, IEC 62619, UN38.3, ISO 9001:2015
Battery Module Rated Capacity :
52.25 kWh
Communication Interface :
LAN
Delivery Time :
30-45 days after order confirmation, subject to final configuration
Rated Grid Frequency :
50 Hz
Model Number :
ES-BP-1-416-418000-C-Y
Battery Voltage Range :
1164~1497 Vdc
Rated Output Voltage :
400 Vac (3P+PE)
Max Operating Altitude :
4000 m (derating above 2000 m)
Price :
USD 48000-58000 / Unit
Cell Type :
LFP (LiFePO4)
Communication Protocol :
MQTT
System Rated Capacity :
418 kWh
IP Rating :
Electrical compartment IP54, battery compartment IP55
Dimensions (W x H x D) :
1650 x 2280 x 1350 mm
Max Parallel Units per Busbar :
10
Payment Terms :
T/T,L/C
Packaging Details :
Export-grade wooden frame packing with moisture-proof barrier, suitable for sea freight and long-distance transport
Rated Power :
100 kW
Cooling Method :
Liquid Cooling
MOQ :
1 Unit
System Configuration :
1P416S
Brand Name :
Ohory
Operating Temperature :
-20~50 deg C (derating above 45 deg C)
Place of Origin :
Tianjin, China
Supply Ability :
50 Units per Month
Battery Rated Voltage :
1331.2 Vdc
Weight :
4040 +/- 20 kg
Description
Hospital Backup 418kWh Liquid Cooling Energy Storage Cabinet 100kW PCS LFP Battery Critical Power ESS
Hospital Backup 418kWh Liquid Cooling Energy Storage Cabinet 100kW PCS (Critical Power)

The 418 kWh liquid cooling energy storage cabinet with a 100 kW PCS at 400 Vac provides reliable backup and peak management power for hospitals and critical healthcare facilities, where even brief outages can endanger patients.

Multi-level BMS protection, LFP chemistry and aerosol fire suppression meet demanding safety standards, while MQTT communication integrates with building and facility energy management systems.

Key Features
  • Reliable backup power for hospitals and critical facilities
  • 100 kW PCS at 400 Vac with fast response switchover
  • 418 kWh LFP battery with multi-level BMS protection
  • Aerosol fire suppression and IP54 IP55 enclosure safety
  • Supports peak load management and demand response
  • LAN communication with MQTT protocol for facility EMS integration
Technical Specifications
Cell Type LFP (LiFePO4)
Battery Module Rated Capacity 52.25 kWh
System Configuration 1P416S
Battery Rated Voltage 1331.2 Vdc
Battery Voltage Range 1164~1497 Vdc
System Rated Capacity 418 kWh
Rated Charge/Discharge Current 75 Adc
Rated Power 100 kW
Rated Output Voltage 400 Vac (3P+PE)
Rated Grid Frequency 50 Hz
Connection Method AC bottom feed; auxiliary power 220 Vac L+N
Cooling Method Liquid Cooling
Fire Fighting System Aerosol
IP Rating Electrical compartment IP54, battery compartment IP55
Operating Temperature -20~50 °C (derating above 45 °C)
Relative Humidity ≤95%, non-condensing
Max Operating Altitude 4000 m (derating required above 2000 m)
Communication Interface LAN
Communication Protocol MQTT
Corrosion Protection Level C4
Weight 4040 ± 20 kg

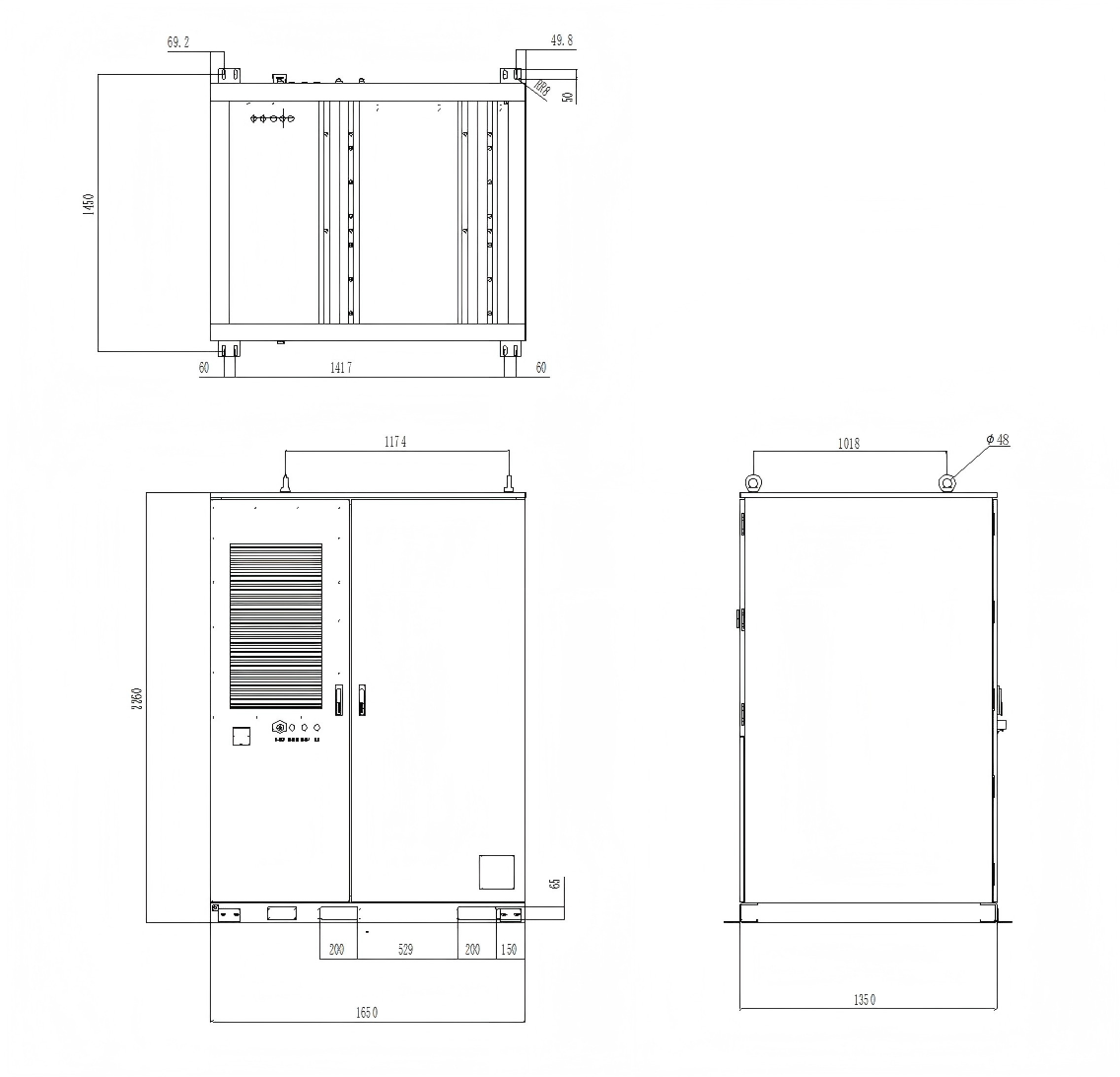

Dimensions (W x H x D) 1650 x 2280 x 1350 mm
Max Parallel Units per Busbar 10
418 kWh Liquid Cooling Energy Storage Cabinet with 100 kW PCS for Hospital Backup Power
418 kWh Liquid Cooling Energy Storage Cabinet with 100 kW PCS for Hospital Backup Power
Typical Applications
  • Hospital and healthcare backup power
  • Critical public infrastructure resilience
  • Commercial building demand management
  • Campus and facility energy optimization
The cabinet is rated for operation from -20°C to 50°C with derating above 45°C, supports installation at altitudes up to 4000 m with derating above 2000 m, and is designed for outdoor deployment in C4 corrosion environments. Installation, maintenance and operation must be carried out by qualified technicians in strict compliance with safety regulations.
Ohory is the brand for this 418kWh liquid cooling energy storage cabinet. Contact our sales team for project-specific configuration, grid code compliance documents and a quotation.
