Instrumentation Cable Zr-Djypvp-300/500V 12X2X1.5 mm2
Instrumentation Cable Zr-Djypvp-300/500V 12X2X1.5 mm2
Instrumentation Cable Zr-Djypvp-300/500V 12X2X1.5 mm2
Instrumentation Cable Zr-Djypvp-300/500V 12X2X1.5 mm2
Instrumentation Cable Zr-Djypvp-300/500V 12X2X1.5 mm2
Instrumentation Cable Zr-Djypvp-300/500V 12X2X1.5 mm2
Instrumentation Cable Zr-Djypvp-300/500V 12X2X1.5 mm2
Instrumentation Cable Zr-Djypvp-300/500V 12X2X1.5 mm2
Instrumentation Cable Zr-Djypvp-300/500V 12X2X1.5 mm2
Instrumentation Cable Zr-Djypvp-300/500V 12X2X1.5 mm2
Specifications
Model NO. :
ZR-DJYPVP-300/500V
Application :
Control /Signal Center
Conductor Material :
Copper
Sheath Material :
PVC
Insulation Material :
PE
Material Shape :
Round Wire
Range of Application :
Power Station
Certification :
ISO9001, CE, CCC, VDE
Brand :
Shanghai Shenghua
Insulation Color :
Black/White One Pair
Jacket Color :
Black.
Conductor :
Pure Copper Wire
Induvidual Screen :
Copper Wire Braid Screen
Overal Screen :
Copper Wire Braid Screen
Packing Length :
2000m/Reel
Rated Voltage :
300/500V
Test Voltage :
2500V/5min
Working Temp :
70ºC
Cable Sample :
Free
Outer Sheath Material :
Flame-Retardant PVC
Current :
DC Cable
Transport Package :
Reel
Specification :
12x2x1.5mm2
Trademark :
SHAN CABLE
Origin :
Shanghai China
HS Code :
8544492100
Supply Ability :
7853km/Week
Description

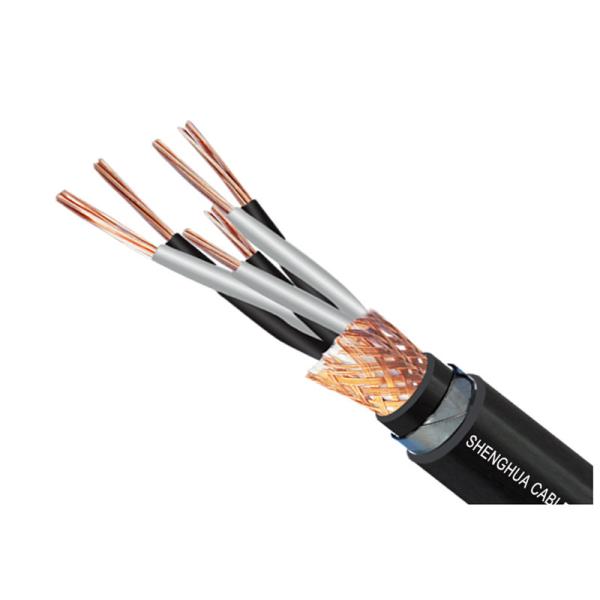

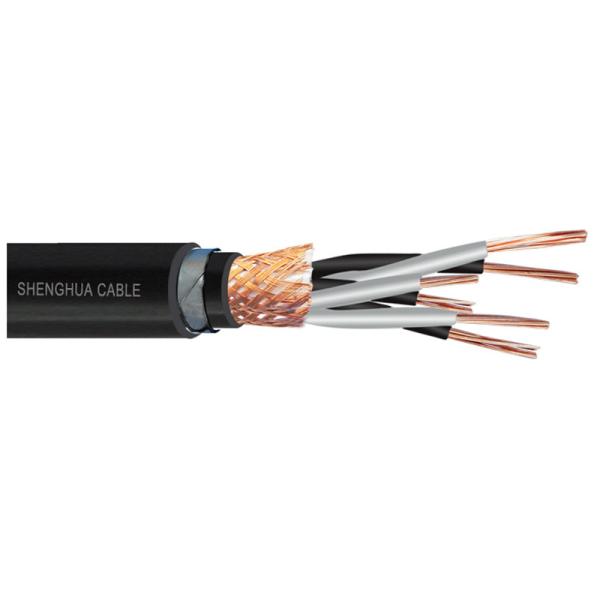

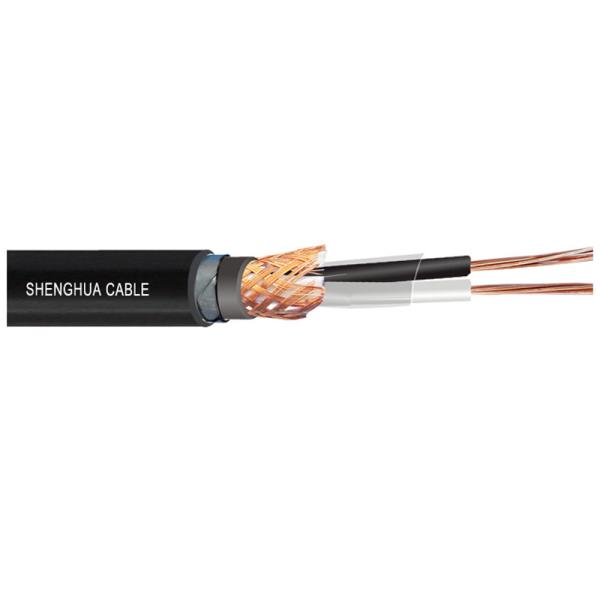

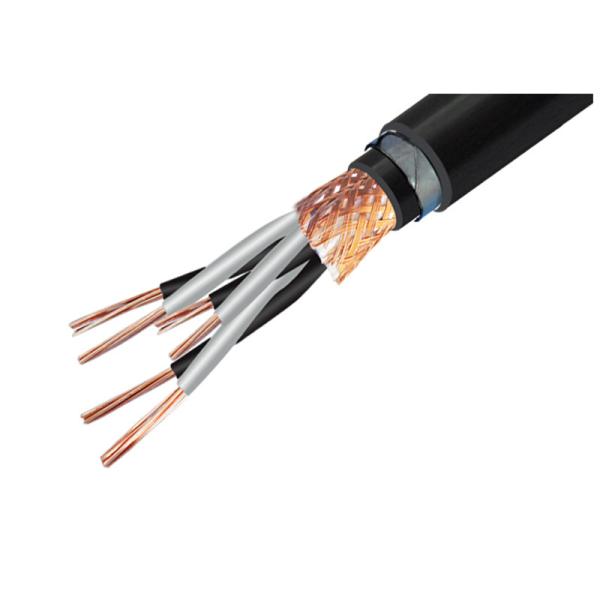

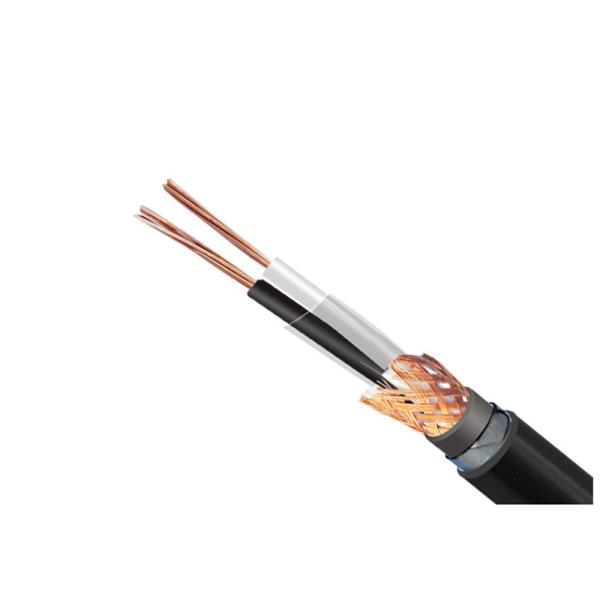

Instrumentation Cable ZR-DJYPVP-300/500V 12x2x1.5 mm2

1.Solid Copper Conductor (class1).
2.PE Insulation.
3.Copper Wire braid Individual screen.
4..Copper Wire braid Overall screen.
5.Flame-retardant PVC outer sheath.
as per IEC 60332-3:24 Cat C

Construction
Model No.: ZC-DJYPVP-300/500V (Sqmm ) 1x2x1.0 2x2x1.0 3x2x1.0 4x2x1.0 5x2x1.0 1x2x1.5 2x2x1.5 1x3x1.5 2x3x1.5 3x3x1.5 4x3x1.5
1 Conductor
Material Solid Conductor Stranded Conductor Solid Conductor
Type Class 1 Class 2 Class 1
No./Diameter before stranded 1/1.13mm 1/1.13mm 1/1.13mm 1/1.13mm 1/1.13mm 7/0.52mm 7/0.52mm 1/1.38mm 1/1.38mm 1/1.38mm 1/1.38mm
2 Insulation
Material PE
COLOR
Thickness 0.6mm 0.6mm 0.6mm 0.6mm 0.6mm 0.7mm 0.7mm 0.7mm 0.7mm 0.7mm 0.7mm
Minimum Insulation Thickness 0.44mm 0.44mm 0.44mm 0.44mm 0.44mm 0.53mm 0.53mm 0.53mm 0.53mm 0.53mm 0.53mm
3 Copper Wire Braid Individual Screen
Material / Copper Wire Copper Wire Copper Wire Copper Wire Copper Wire Copper Wire / Copper Wire Copper Wire Copper Wire
Shielding Braid Density / 80% Dia
0.12mm		 80% Dia
0.12mm		 80% Dia
0.12mm		 80% Dia
0.12mm		 80% Dia
0.12mm		 80% Dia
0.12mm		 / 80% Dia
0.12mm		 80% Dia
0.12mm		 80% Dia
0.12mm
4 Copper Wire Braid Overall Screen
Material Copper Wire
Shielding Braid Density 80% Dia 0.12mm
5 Overall Sheath
Material Flame-retardant PVC(BLACK)
Thickness 1.2mm 1.2mm 1.2mm 1.2mm 1.3mm 1.2mm 1.2mm 1.2mm 1.3mm 1.3mm 1.3mm
Approx Overall Diameter 7.8mm 13.7mm 14.3mm 16mm 17.7mm 9.0mm 16.2mm 9.1mm 16.6mm 17.7mm 19.4mm
Technical Data & Packing
1 Rated voltage 300/500V 300/500V 300/500V 300/500V 300/500V 300/500V 300/500V 300/500V 300/500V 300/500V 300/500V
2 Testing Voltage(5 minutes) 1.5kV 1.5kV 1.5kV 1.5kV 1.5kV 1.5kV 1.5kV 1.5kV 1.5kV 1.5kV 1.5kV
3 Max. Resistance of Conductor D.C at 20ºC 18.1 Ω/km 18.1 Ω/km 18.1 Ω/km 18.1 Ω/km 18.1 Ω/km 12.1 Ω/km 12.1 Ω/km 12.1 Ω/km 12.1 Ω/km 12.1 Ω/km 12.1 Ω/km
4 Approx Weight 98kg/km 240kg/km 300kg/km 372kg/km 486kg/km 119kg/km 296kg/km 165kg/km 423kg/km 523kg/km 802kg/km
5 Working Temp. of conductor 70ºC 70ºC 70ºC 70ºC 70ºC 70ºC 70ºC 70ºC 70ºC 70ºC 70ºC
6 Short circuit 5s of conductor(max) 160ºC 160ºC 160ºC 160ºC 160ºC 160ºC 160ºC 160ºC 160ºC 160ºC 160ºC
7 Min.Installation temp >0ºC >0ºC >0ºC >0ºC >0ºC >0ºC >0ºC >0ºC >0ºC >0ºC >0ºC
