Specifications
Model NO. :
DJYP3VP3-300/500V 24x2x1.5mm2
Application :
Msr
Conductor Material :
Copper
Sheath Material :
PVC
Insulation Material :
PE
Material Shape :
Round Wire
Range of Application :
Power Plant
Certification :
ISO9001, CE, CCC, RoHS, VDE
Brand :
Shanghai Shenghua
Standard :
En 80288-7
Conductor :
Bare Annealed Stranded Copper
Insulation :
PE
Overall Screen :
Aluminum Polyester Tapes Plus Tinned Copper Drain
Outer Sheath :
Flame-Retardant PVC
Outer Sheath Color :
Green or Blue
Insulation Color :
Pair :Black/White
Test Voltage :
3.5 Kv
Rated Voltage :
300/500V
Temp Range :
-40ºC to +70ºC
Bending Radius :
7.5 Xo.D
Sample :
Available
Packing :
500m/Reel
Shipping :
by Container
Oil-Resistant :
Yes
Transport Package :
Wooden Drum
Specification :
8x2x0.5 SQMM
Trademark :
SHAN CABLE
Origin :
Shanghai China
HS Code :
8544492100
Supply Ability :
9853km/Week
Description

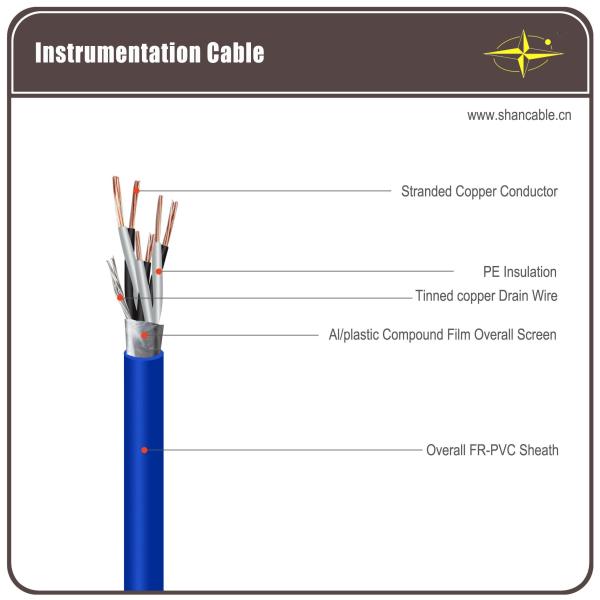

AL-Foil Screened Instrumentation Cables DJYP3VP3-300/500V 24x2x1.5 mm2 China Supplier.

1.Stranded Copper Conductor(class2).
2.PE insulation.
3.Aluminium/Polyester Tape Overall screen + Tinned copper drain wire
4.Flame-retardant PVC Outer sheath.
as per JB/T13486-2018

Applications
Used for tall building, Hospital, Theatre, Power station, Metro Tunnel or Petrochemical Industry or other special place required for low smoke , zero halogen clean and safe cable.
Standards
International: IEC 60502, IEC 60227 IEC 60331, IEC 601034
China: GB/T 12706-91 GB306.1-2001, GB/T18380.3-2001
Other standards such as BS,DIN and ICEA upon request

Technical data
Rated voltage: 0.6-KV
Max. Conductor Temp.: normal (90ºC), short circuit no more than 5 s (the highest temperature of conductor shall no more than 250ºC )
Min. Ambient Temp.:The cable shall be pre heated if the ambient temperature is below 0ºC
Min. Bending Radius: single core cable 20(d+D)±5%
Multi-core cable 15(d+D)±5%

Certificates
CE, RoHS, CCC, KEMA and more others at request


Construction
Model No.:DJYP3VP3-300/500V 1x2x0.5 mm2 2x2x0.5 mm2 4x2x0.5 mm2 8x2x0.5 mm2
1 Conductor
Material Stranded Copper Conductor
Type Class 2 Class 2 Class 2 Class 2
No./Diameter before stranded 7/0.3mm 7/0.3mm 7/0.3mm 7/0.3mm
2 Insulation
Material PE
Color Black,White+Number Black,White+Number Black,White+Number Black,White+Number
Thickness 0.6mm 0.6mm 0.6mm 0.6mm
Minimum Insulation Thickness 0.44mm 0.44mm 0.44mm 0.44mm
Diameter After Insulation 2.1mm 2.1mm 2.1mm 2.1mm
3 Overall Screen
Material Aluminium/Polyester Tape + Tinned copper drain wire
Thickness of screen 0.05mm
Number and diameter of Drain wire 7/0.3mm 7/0.3mm 7/0.3mm 7/0.3mm
Drain wire cross section 0.5 mm2 0.5 mm2 0.5 mm2 0.5 mm2
Diameter After Overall Screen 4.5mm 7.4mm 8.9mm 12.7mm
4 Outer Sheath
Material Flame-retardant PVC (Blue)
Thickness 0.8mm 0.8mm 1.1mm 1.2mm
Approx Overall Diameter 6.1mm 9.0mm 11.1mm 15.1mm
Technical Data & Packing
1 Rated voltage 300/500V 300/500V 300/500V 300/500V
2 Testing Voltage(1 minutes) 1000V 1000V 1000V 1000V
3 Max. Resistance of Conductor
D.C at 20ºC		 36 Ω/km 36 Ω/km 36 Ω/km 36 Ω/km
4 Approx Weight 44 kg/km 81 kg/km 129 kg/km 233 kg/km
5 Working Temp. of conductor 70ºC 70ºC 70ºC 70ºC
6 Short circuit 5s of conductor(max) 130~150ºC 130~150ºC 130~150ºC 130~150ºC
7 Min.Installation temp >0ºC >0ºC >0ºC >0ºC
