NNT NZSE30A(F) High Accuracy ±0.5% F.S. Digital Pressure Switch with Clear Digital Display and IP65 Protection for Industrial Applications
NNT NZSE30A(F) High Accuracy ±0.5% F.S. Digital Pressure Switch with Clear Digital Display and IP65 Protection for Industrial Applications
NNT NZSE30A(F) High Accuracy ±0.5% F.S. Digital Pressure Switch with Clear Digital Display and IP65 Protection for Industrial Applications
NNT NZSE30A(F) High Accuracy ±0.5% F.S. Digital Pressure Switch with Clear Digital Display and IP65 Protection for Industrial Applications
NNT NZSE30A(F) High Accuracy ±0.5% F.S. Digital Pressure Switch with Clear Digital Display and IP65 Protection for Industrial Applications
NNT NZSE30A(F) High Accuracy ±0.5% F.S. Digital Pressure Switch with Clear Digital Display and IP65 Protection for Industrial Applications
NNT NZSE30A(F) High Accuracy ±0.5% F.S. Digital Pressure Switch with Clear Digital Display and IP65 Protection for Industrial Applications
NNT NZSE30A(F) High Accuracy ±0.5% F.S. Digital Pressure Switch with Clear Digital Display and IP65 Protection for Industrial Applications
Specifications
Brand Name :
NNT
Model Number :
NZSE30A(F)/NISE30A
Certification :
CE
Place of Origin :
China
MOQ :
1 piece
Payment Terms :
T/T
Supply Ability :
500pcs within 7 working days
Delivery Time :
5-7 working days
Packaging Details :
Carton box individually
Description

Precision Pressure Control for Modern Industry

The NISE30A series digital pressure switch from NNT combines high accuracy, robust construction, and intuitive operation in a compact design. With its clear digital display and configurable settings, it provides precise pressure monitoring and control for a wide range of industrial applications.

Featuring a high-visibility LCD display, the NISE30A allows for easy reading of pressure values and set points. The device offers multiple output options, adjustable hysteresis, and a variety of pressure ranges to suit different requirements.

Designed to withstand harsh industrial environments, the NISE30A is built with durable materials and offers IP65 protection against dust and water ingress.



NNT NZSE30A(F) High Accuracy ±0.5% F.S. Digital Pressure Switch with Clear Digital Display and IP65 Protection for Industrial Applications




Key Features

High Accuracy

±0.5% F.S. accuracy ensures precise pressure monitoring and control for critical applications.


Clear Digital Display

Easy-to-read LCD shows measured pressure, set points, and operational status at a glance.


Configurable Settings

Adjustable hysteresis, response time, and output modes for customized performance.


Robust Construction

IP65 rated enclosure provides protection against dust and water for reliable operation in harsh environments.

Technical Specifications
NNT NZSE30A(F) High Accuracy ±0.5% F.S. Digital Pressure Switch with Clear Digital Display and IP65 Protection for Industrial Applications

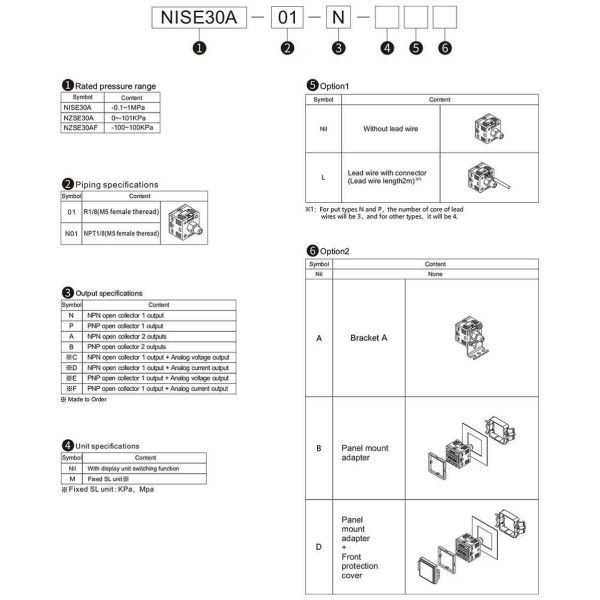

Parameter Specification
Model NISE30A
Pressure Range -0.1 to 1 MPa, 0 to -101 kPa, -100 to 100 kPa (multiple ranges available)
Accuracy ±0.5% F.S. (Full Scale)
Display LCD digital display with backlight
Output NPN/PNP open collector, analog voltage/current (configurable)
Power Supply 12-24 VDC ±10%
Response Time < 1 ms (electronic), adjustable
Port Size Rc1/8, Rc1/4, or NPT1/4
Protection Rating IP65 (dust and water resistant)
Operating Temperature 0 to 50°C
Housing Material Stainless steel and engineering plastic
Typical Applications

Factory Automation

Pressure monitoring in pneumatic systems and machinery


Automotive Manufacturing

Brake testing, leak detection, and assembly line control


Pharmaceutical

Process control in cleanroom environments


HVAC Systems

Air pressure monitoring and control in ventilation systems
