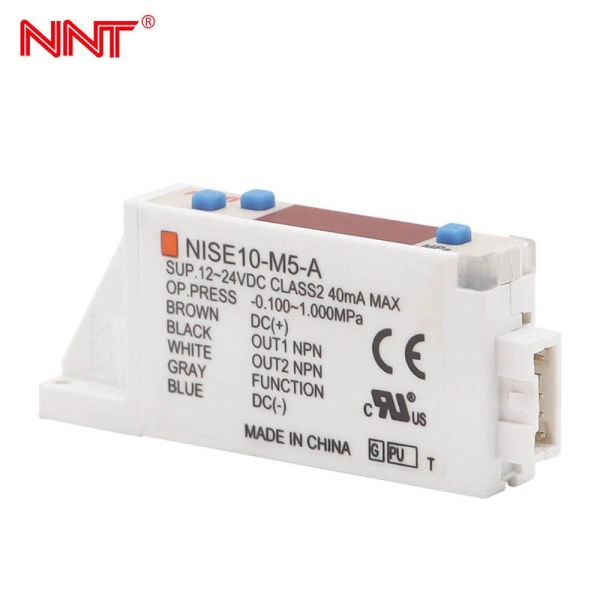

NNT NZSE10(F)/NISE10 Ultra-thin 22mm Digital Pressure Switch with ±1% F.S. Accuracy and IP65 Rating for Space-Constrained Applications
NNT NZSE10(F)/NISE10 Ultra-thin 22mm Digital Pressure Switch with ±1% F.S. Accuracy and IP65 Rating for Space-Constrained Applications
NNT NZSE10(F)/NISE10 Ultra-thin 22mm Digital Pressure Switch with ±1% F.S. Accuracy and IP65 Rating for Space-Constrained Applications
NNT NZSE10(F)/NISE10 Ultra-thin 22mm Digital Pressure Switch with ±1% F.S. Accuracy and IP65 Rating for Space-Constrained Applications
NNT NZSE10(F)/NISE10 Ultra-thin 22mm Digital Pressure Switch with ±1% F.S. Accuracy and IP65 Rating for Space-Constrained Applications
NNT NZSE10(F)/NISE10 Ultra-thin 22mm Digital Pressure Switch with ±1% F.S. Accuracy and IP65 Rating for Space-Constrained Applications
NNT NZSE10(F)/NISE10 Ultra-thin 22mm Digital Pressure Switch with ±1% F.S. Accuracy and IP65 Rating for Space-Constrained Applications
NNT NZSE10(F)/NISE10 Ultra-thin 22mm Digital Pressure Switch with ±1% F.S. Accuracy and IP65 Rating for Space-Constrained Applications
Specifications
Brand Name :
NNT
Model Number :
NZSE10(F)/NISE 10
Certification :
CE
Place of Origin :
China
MOQ :
1pcs
Payment Terms :
T/T
Supply Ability :
500pcs 7work days
Delivery Time :
5-7 work days
Description

Ultra-thin Design, Maximum Performance

The NNT NZSE10(F)/NISE10 series represents a breakthrough in pressure switch technology, combining ultra-thin design with exceptional accuracy and reliability. With a thickness of only 22mm, these pressure switches are ideal for space-constrained applications without compromising on performance.

Engineered for precision and durability, the NZSE10(F)/NISE10 series offers advanced features including digital display, multiple output options, and high resistance to vibration and shock.

Key Features

Ultra-thin Design

With a thickness of only 22mm, the NZSE10(F)/NISE10 series saves valuable space in compact equipment and machinery.

High Accuracy

±1% full scale accuracy ensures precise pressure monitoring and control for critical applications.

Digital Display

Easy-to-read digital display allows for quick setup and monitoring of pressure values.

Multiple Outputs

Choose from NPN/PNP open collector, voltage, and current output options to match your system requirements.

IP65 Protection

Rated IP65 for dust and water resistance, making it suitable for harsh industrial environments.

Low Power Consumption

Energy-efficient design reduces operational costs and extends component life.

Technical Specifications
Parameter NZSE10 Series NZSE10F Series NISE10 Series
Pressure Range -100 to 100 kPa / 0.1 to 1.0 MPa -100 to 100 kPa / 0.1 to 1.0 MPa 0.01 to 0.1 MPa / 0.1 to 1.0 MPa
Accuracy ±1% F.S. ±1% F.S. ±2% F.S.
Display 4-digit LED 4-digit LED 4-digit LED
Output NPN/PNP open collector NPN/PNP open collector Voltage or current output
Power Supply 12-24 VDC ±10% 12-24 VDC ±10% 12-24 VDC ±10%
Protection Rating IP65 IP65 IP65
Operating Temperature -10 to 50°C -10 to 50°C -10 to 50°C
Thickness 22 mm 22 mm 22 mm
Weight Approx. 85g Approx. 85g Approx. 85g
Available Models

NZSE10 Series

Standard ultra-thin pressure switch with digital display and NPN/PNP output options.

  • Pressure range: -100 to 100 kPa / 0.1 to 1.0 MPa
  • ±1% full scale accuracy
  • 4-digit LED display
  • IP65 protection

NZSE10F Series

Enhanced version with faster response time and improved vibration resistance.

  • Same pressure range as NZSE10
  • Improved response time: 1 ms
  • Enhanced vibration resistance
  • All NZSE10 features included

NISE10 Series

Analog output version with voltage or current output for continuous pressure monitoring.

  • Pressure range: 0.01 to 0.1 MPa / 0.1 to 1.0 MPa
  • Voltage (0-5V, 1-5V) or current (4-20mA) output
  • ±2% full scale accuracy
  • Ideal for analog control systems
Industrial Applications

Robotics

Compact design ideal for robotic grippers and automation systems with space constraints.

Medical Equipment

PrecNISE pressure monitoring for ventilators, infusion pumps, and diagnostic devices.

Automotive

Pressure control in braking systems, fuel injection, and pneumatic controls.

Factory Automation

Monitoring pneumatic circuits, clamping force, and press machines.
