Specifications
Specification :
FZG-4
Vacuum in Box (Mpa) :
>-0.096
Price :
Negotiate
Equipment Weight (KG) :
460
Drying Rack Pressure (Mpa) :
<0.78Mpa
Baking Plate Size (mm) :
460*640*45
Place of Origin :
China
Packaging Details :
Carton
Number of Baking Plate :
4
The Temperature in the Cabinet (°C) :
35-150
Number of Rack Layers :
4
No-Load uniformity of hot water (℃) :
±5
Delivery Time :
15-30 Days
Overall Dimension W*D*H (mm) :
860*860*1750
Distance Between Layers (mm) :
120
MOQ :
1 set
Description

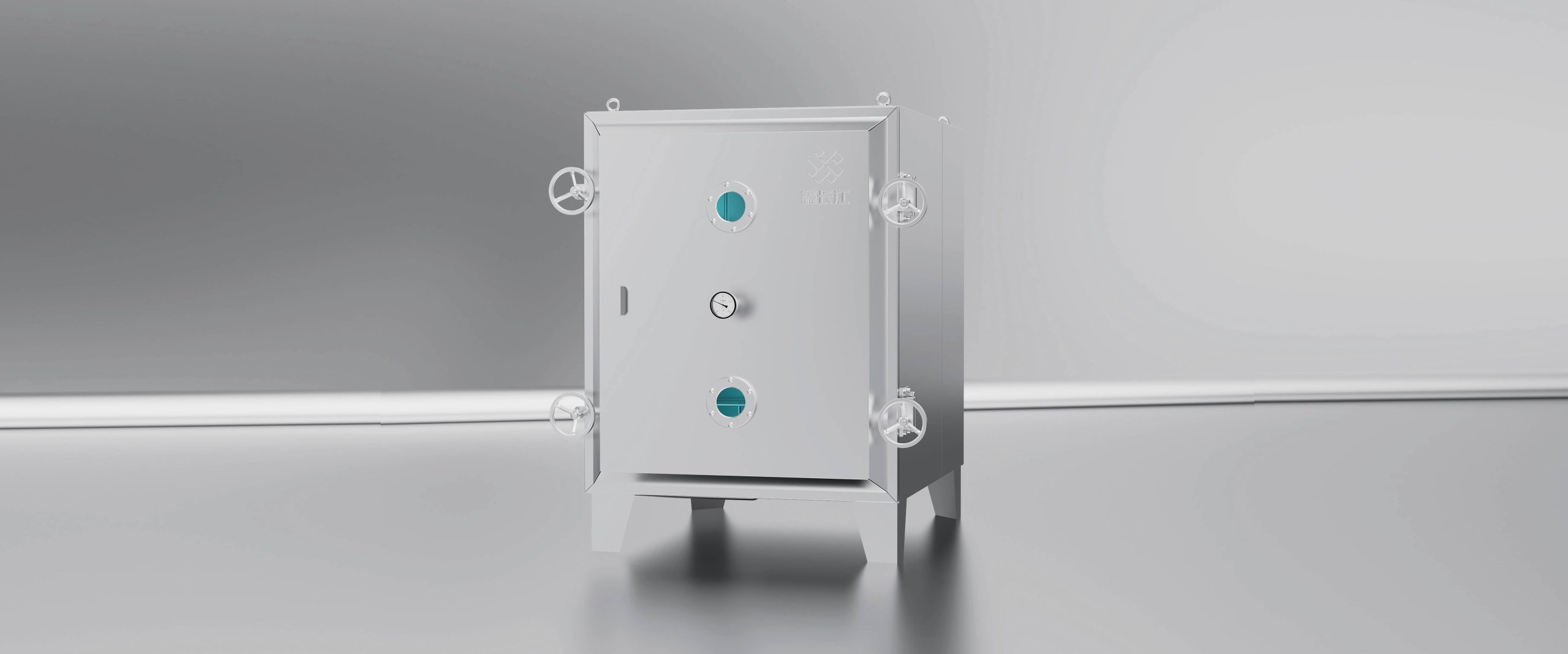

FZG Series Square Vacuum Drying Oven

The FZG square vacuum drying box features a specialized herringbone structure at the top, effectively preventing condensation water from dripping back onto materials. Engineered for precision, it is the ideal solution for low-temperature drying, heat-sensitive materials, and substances prone to oxidation.

Key Advantages & Applications

  • Material Integrity: Static vacuum drying ensures the shape and structure of materials remain undamaged.
  • High Efficiency: Achieves superior drying rates at lower temperatures, maximizing heat utilization.
  • Condensation Control: Herringbone top design prevents moisture contamination.
  • Industry Use: Ideal for pharmaceuticals, chemical processing, and food industry applications requiring gentle, oxidation-free drying.

Product Attributes

Brand: FZG Series
Equipment Type: Static Vacuum Dryer
Process: Low-temperature vacuum drying

Technical Specifications

SpecificationValue
ModelFZG-4
Overall Dimension (mm)860*860*1750
Number of Rack Layers4
Distance Between Layers (mm)120
Baking Plate Size (mm)460*640*45
Number of Baking Plates4
Drying Rack Pressure (Mpa)<0.78Mpa
Temperature Range (°C)35-150
Vacuum in Box (Mpa)>-0.096
No-Load Uniformity (°C)±5
Equipment Weight (KG)460
