Industrial Vacuum Dryer – PFZG-20
Industrial Vacuum Dryer – PFZG-20
Industrial Vacuum Dryer – PFZG-20
Industrial Vacuum Dryer – PFZG-20
Industrial Vacuum Dryer – PFZG-20
Industrial Vacuum Dryer – PFZG-20
Industrial Vacuum Dryer – PFZG-20
Industrial Vacuum Dryer – PFZG-20
Specifications
Chamber Temperature(℃) :
35-150
Delivery Time :
15-30 Days
Packaging Details :
Carton
Overall Dimension W*D*H (mm) :
1490*966*1900
Plate Pressure（Mpa） :
≤0.4Mpa
Specification :
PFZG-20
Dimensions of Baking Tray (mm) :
400*600*45
Equipment Weight (kg) :
2500
MOQ :
1 set
Price :
Negotiate
No-load Uniformity of Hot Water (℃) :
±2
Quantities of Baking Tray :
20
Batch Production（kg） :
60
Inter-layer Distance（mm） :
120
Chamber Vacuum Degree (Mpa) :
≥-0.098
Place of Origin :
China
Description

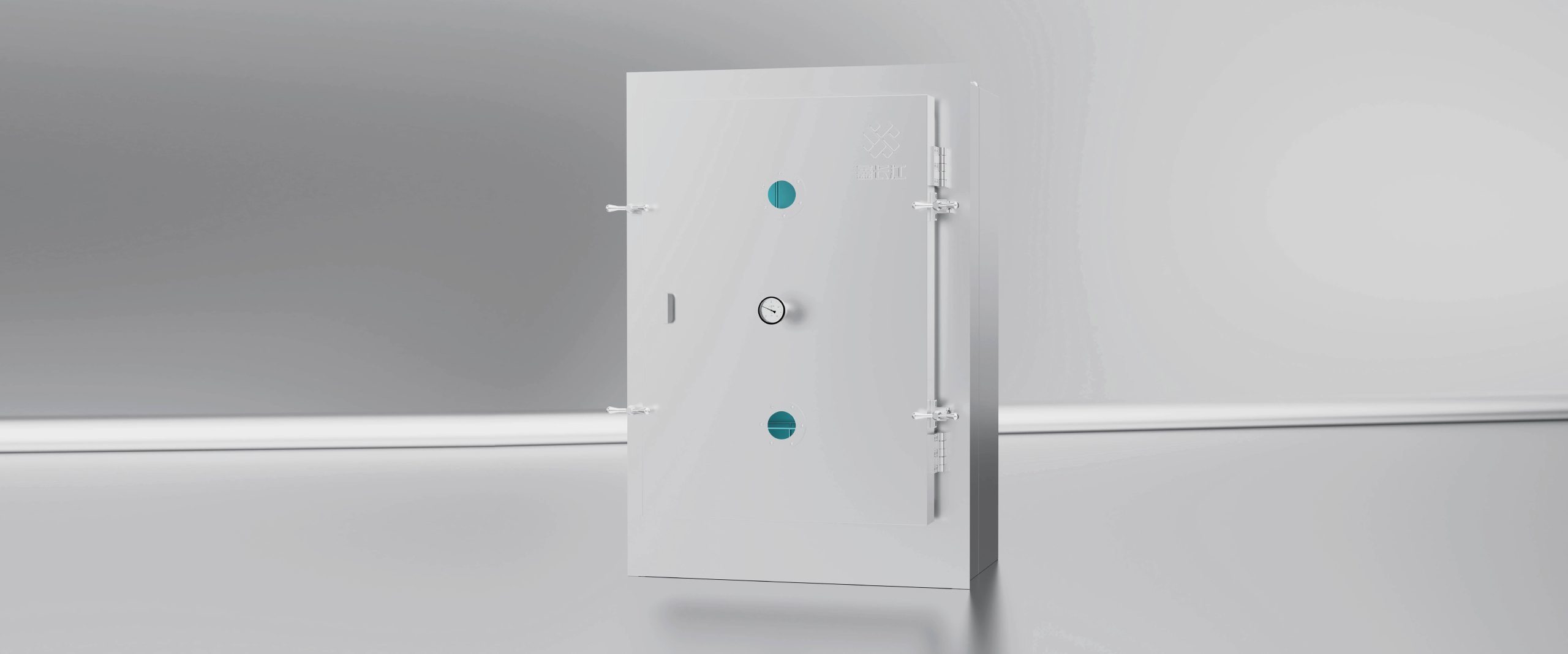

PFZG-20 Vacuum Drying Oven

Flat plate heating ensures temperature uniformity, and even under vacuum conditions, it can ensure stable temperature of the item (heating, constant temperature, and cooling). The four walls with jacket heating accelerate the drying and cooling of the dried items, avoiding condensation. A multi-component shunt heating system ensures temperature uniformity inside the box, and a workroom loading and unloading platform with automatic lifting and rollers reduces labor intensity.

Key Benefits

  • ✅ Superior Uniformity: Flat plate and multi-component shunt heating systems ensure consistent temperature.
  • ✅ Advanced Efficiency: Jacket heating on four walls prevents condensation and accelerates processing.
  • ✅ Ergonomic Design: Integrated loading/unloading platform with automatic lifting and rollers reduces labor.

Operational Capability

Batch Production: 60 kg

Temperature Range: 35-150 ℃

Mechanical Specs

Tray Capacity: 20 units

Plate Pressure: ≤0.4 Mpa

Technical Specifications

Parameter Value
ModelPFZG-20
Overall Dimension (mm)1490*966*1900
Inter-layer Distance (mm)120
Baking Tray Dimensions (mm)400*600*45
Chamber Vacuum Degree (Mpa)≥-0.098
No-load Uniformity (℃)±2
Equipment Weight (kg)2500
