Hot Air Circulation Oven(CT-C series) : Type CT-C-IV
Hot Air Circulation Oven(CT-C series) : Type CT-C-IV
Specifications
Effective VoLumefm3) :
10.3
Fan Power (kW) :
0.75*4
Place of Origin :
China
Fan air Volume (m3/h) :
20000
No-load Uniformity of Hot Water (C) :
±5
Packaging Details :
Carton
Model :
CT-C-IV
Price :
Negotiate
MOQ :
1 set
Evaporation Area(m2) :
56.5
Quantities of Baking Trays (pcs) :
192
Equipment weight (kg) :
2420
Delivery Time :
15-30 Days
Industrial Standards :
RXH-54-C
Radiator Area(m2) :
100
Overall dimensions W*D*H (mm) :
4240*2100*1970
Electric Heating Power (kW) :
60
Drying Capacity (kg/batch) :
480
Quantities of drying trucks (set) :
8
Steam Consumption (kg/h) :
80
Description

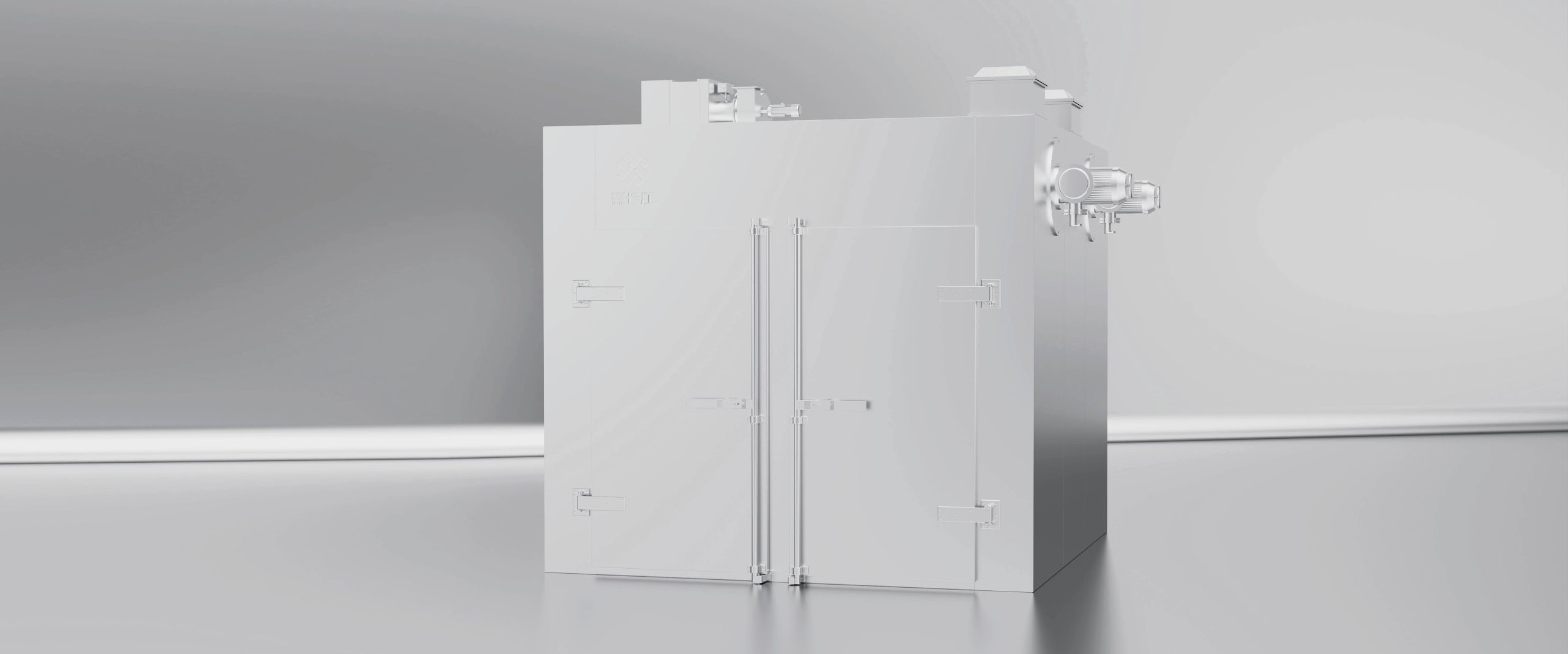

CT-C-IV Hot Air Circulation Oven

The hot air circulation oven is a professional-grade solution designed for efficient drying and dehydration of materials. Engineered with high recognition and excellent workmanship, this unit utilizes air as a heat carrier and supports flexible heating options including steam, electricity, or thermal oil. Equipped with a specialized dehumidification system, it ensures optimal drying efficiency for industrial applications.

Key Benefits

  • Customizable Design: Supports non-standard requirements to fit specific production needs.
  • Versatile Heating: Compatible with steam, electricity, or thermal oil systems.
  • Efficient Dehumidification: Integrated system to maintain high-performance drying cycles.
  • High Capacity: Designed for heavy-duty industrial throughput.

Product Attributes

Unit: Set
Packaging: N/A

Technical Specifications

ParameterDetail
ModelCT-C-IV
Industrial StandardsRXH-54-C
Evaporation Area (m2)56.5
Effective Volume (m3)10.3
Drying Capacity (kg/batch)480
Radiator Area (m2)100
Steam Consumption (kg/h)80
Electric Heating Power (kW)60
Fan Air Volume (m3/h)20000
Fan Power (kW)0.75*4
No-load Uniformity (°C)±5
Dimensions (W*D*H mm)4240*2100*1970
Drying Trucks (set)8
Baking Trays (pcs)192
Equipment Weight (kg)2420
