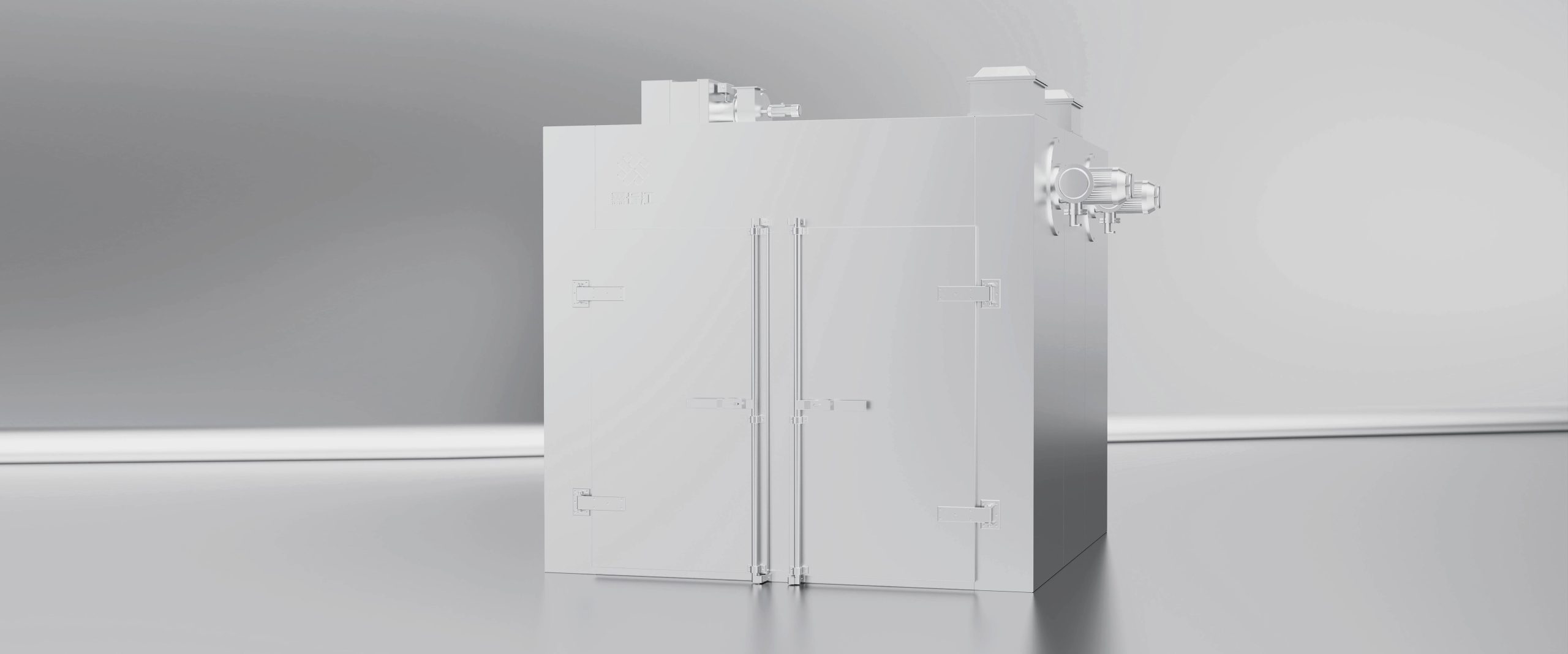

CT-C Series Circulation Oven: Type CT-C-O
CT-C Series Circulation Oven: Type CT-C-O
Specifications
Fan Power (kW) :
0.55*1
Price :
Negotiate
Industrial Standards :
RXH-7-C
Quantities of Baking Trays (pcs) :
24
Radiator Area(m2) :
10
Electric Heating Power (kW) :
6-9
Effective Volumefm3) :
1.2
Drying Capacity (kg/batch) :
60
MOQ :
1 set
Model :
CT-C-O
No-load Uniformity of Hot Water (C) :
±5
Equipment weight (kg) :
660
Steam Consumption (kg/h) :
10
Overall dimensions W*D*H (mm) :
1290*1160*1970
Packaging Details :
Carton
Delivery Time :
15-30 Days
Place of Origin :
China
Evaporation Area(m2) :
7.1
Fan air Volume (m3/h) :
3450
Quantities of drying trucks (set) :
1
Description

CT-C Series Hot Air Circulating Oven

The CT-C series hot air circulating oven is engineered for high-performance drying, featuring a low-noise, high-temperature resistant axial flow fan and a sophisticated automatic temperature control system. Its fully enclosed circulation system drastically improves thermal efficiency from 3–7% in traditional rooms to 35–45%, reaching a maximum of 50%.

Key Advantages

  • High Efficiency: Maximizes thermal utilization up to 50%.
  • Advanced Airflow: Equipped with high-temperature resistant, low-noise axial fans.
  • Precision Control: Integrated automatic temperature regulation for consistent results.
  • Enclosed Design: Fully sealed system for optimal heat retention and safety.

Product Attributes

Packaging & DeliveryNot specified
FOB Price0

Technical Specifications

ParameterDetail
ModelCT-C-O
Industrial StandardsRXH-7-C
Evaporation Area7.1 m2
Effective Volume1.2 m3
Drying Capacity60 kg/batch
Radiator Area10 m2
Steam Consumption10 kg/h
Electric Heating Power6-9 kW
Fan Air Volume3450 m3/h
Fan Power0.55*1 kW
No-load Uniformity±5 C
Dimensions (W*D*H)1290*1160*1970 mm
Drying Trucks1 set
Baking Trays24 pcs
Equipment Weight660 kg
