Redundant Control Instrument Air N2 Generator Skid: High-Reliability On-Site Nitrogen & Air Solution

This Redundant Control Instrument Air N2 Generator Skid represents a significant advancement in on-site gas generation technology. Engineered for critical applications demanding maximum uptime and safety, this integrated skid solution provides both high-purity instrument air and nitrogen gas from a single, compact footprint. Built upon a standard skid-mounted design, its defining feature is a robust fail-safe control system meticulously designed to achieve Safety Integrity Level (SIL) 2 certification, ensuring operational safety and reliability even in the event of component failure.

Core Features & Advantages:

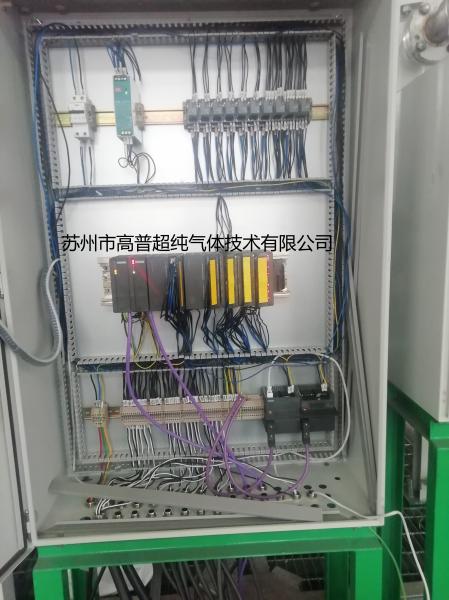

1. Redundant, SIL 2 Certified Control: The cornerstone of this skid. Utilizing robust components like ET200M I/O modules for Digital Inputs (DI) and Outputs (DO), the control system features a 2 * 100% design. This means critical control functions have completely duplicated, independent systems. If one system fails, the other seamlessly takes over, eliminating single points of failure and guaranteeing continuous, safe operation essential for SIL 2 compliance.

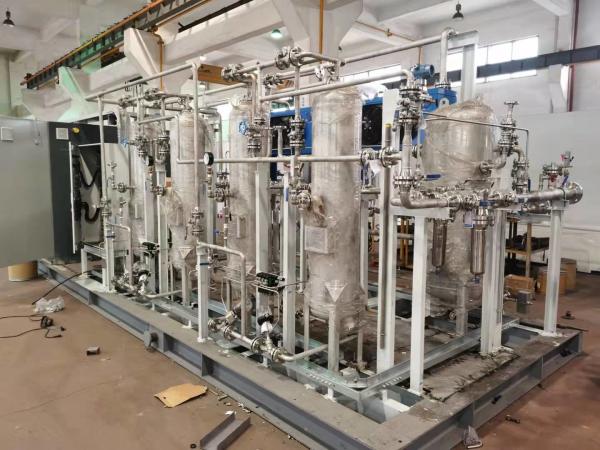

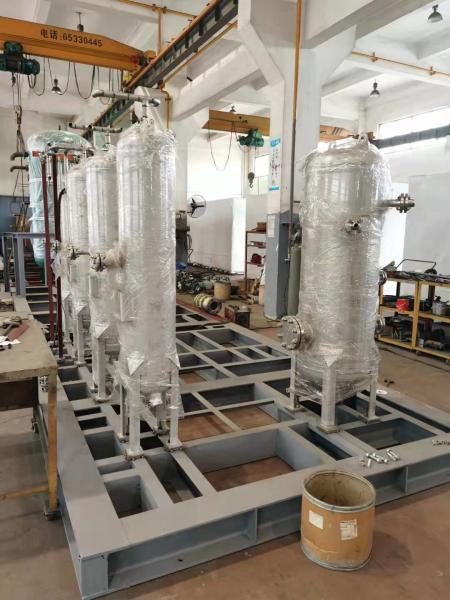

2. High Integration & Mobility: All essential components – air compressor, coolers, filters (removing solids, liquids), dryer (removing water vapor), nitrogen separation unit (using PSA or membrane technology), and buffer storage – are pre-assembled onto a single, rigid steel skid. This plug-and-play design drastically reduces installation time, minimizes on-site construction, and enables easy relocation of the entire unit as operational needs change.
3. Uncompromising Reliability & Availability: The redundant control architecture, combined with high-quality components and rigorous engineering, delivers exceptional reliability and availability. This minimizes unplanned downtime, crucial for continuous processes in demanding industries.
4. Efficient Nitrogen Generation: The skid produces nitrogen by separating oxygen and other trace gases from compressed, dried instrument air. Typical nitrogen purity levels start from 95%+, readily scalable to meet ultra-high purity demands exceeding 99.9% for sensitive applications. Flow rates and output pressure are configurable to specific requirements.
5. Simplified Operation & Maintenance: Designed for continuous, automatic operation with minimal operator intervention. The modular layout and centralized skid design significantly simplify routine maintenance and component replacement procedures.

Key Technical Parameters:

Frequently Asked Questions (FAQ):

1. Q: What does "2 * 100% Redundant Control" mean?

   • A: It means critical control functions (like safety shutdowns, process sequencing) are handled by two completely independent, identical control systems operating simultaneously. If the primary system fails, the secondary system instantly and automatically takes over full control without interruption, ensuring continuous safe operation. This is fundamental for achieving SIL 2 certification.

2. Q: Why is SIL 2 certification important for this skid?

   • A: SIL 2 (Safety Integrity Level 2) is an international standard (IEC 61508/61511) quantifying the required risk reduction for safety systems. Certification means the skid's control system has undergone rigorous analysis and testing to demonstrate it can reliably perform its safety functions, significantly reducing the risk of hazardous failures in critical processes, especially where instrument air/nitrogen failure could lead to unsafe conditions.

3. Q: What are typical applications for this redundant skid?

   • A: It's ideal for any industry where uninterrupted instrument air or nitrogen supply is critical for safety or process continuity. Key sectors include Oil & Gas (platforms, pipelines, gas lift, well control), Petrochemicals, Pharmaceuticals, Specialty Chemicals, Power Generation, and Electronics manufacturing – particularly where standard systems pose an unacceptable risk.

4. Q: How does the skid-mounted design benefit me?

   • A: Skid-mounting offers major advantages: Reduced Installation Time/Cost: Factory-built and tested, requiring only simple utility hookups on-site. Enhanced Quality: Assembly in a controlled environment ensures higher quality. Mobility: The entire unit can be lifted and relocated easily for facility changes or temporary needs. Space Savings: Integrated design is far more compact than field-erected components.

5. Q: Can the skid be customized for my specific flow, purity, and pressure needs?

   • A: Yes, absolutely. While featuring the redundant SIL 2 control core, the skid's capacity (air compressor size, nitrogen generator size, storage volume), target nitrogen purity level, and output pressure are engineered to precisely match the requirements of your specific application.

This Redundant Control Instrument Air N2 Generator Skid delivers unparalleled operational security and efficiency. By integrating SIL 2 certified, fault-tolerant control with proven air separation technology in a convenient skid format, it provides a future-proof, highly reliable source of critical gases, minimizing risk and maximizing productivity for your most demanding operations.
