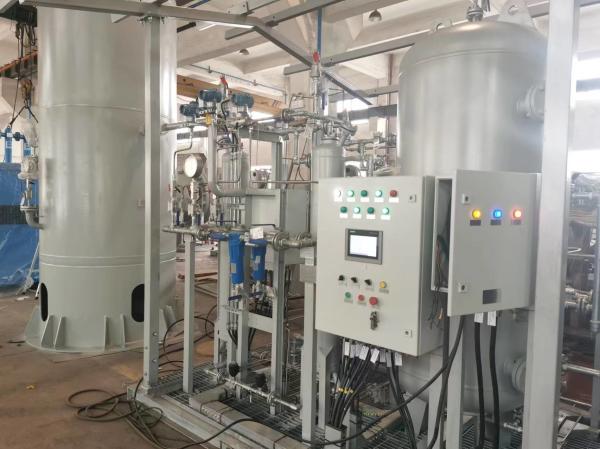

Instrument Air Skid System: High-Purity Modular Air Supply for Critical Industries

In industrial operations where precision and reliability are non-negotiable, Instrument Air Skids stand as the backbone of pneumatic control systems. These self-contained, skid-mounted units deliver ultra-clean, dry compressed air—essential for powering sensitive instruments, valves, and control systems across sectors like oil & gas, petrochemicals, LNG, and pharmaceuticals. Engineered for performance, compliance, and ease of integration, they combine cutting-edge technology with modular design to solve the challenges of on-site installation complexity and air quality consistency.

Key Features: Engineered for Excellence

Instrument Air Skids are defined by their robust construction,严格的质量控制, and adaptability. Here’s what sets them apart:

• Modular "Plug-and-Play" Design: All critical components—air compressors, refrigerated/desiccant dryers, filters, receivers, valves, and controls—are pre-assembled and factory-tested on a single structural steel skid. This minimizes on-site work, reducing installation time by up to 90%.
• Certified Safety & Compliance: Pressure vessels (air receivers) comply with the EU’s Pressure Equipment Directive (PED 2014/68/EU), while piping systems meet EN 10204-3.1 (material traceability) or ASME B31.3 (process piping standards), ensuring global safety compliance.
• Unmatched Air Purity: Achieves ISO 8573-1 Class 1 standards with:
  • Pressure dew point below -40°C (-40°F) to prevent condensation in cold environments.
  • Oil content <0.01 ppm and particulate filtration down to 0.01 microns, safeguarding sensitive equipment from contamination.
• Advanced Control & Redundancy: Equipped with PLC-based control panels (Siemens/Allen-Bradley) for seamless automation. Redundant CPUs and I/O modules are available for critical applications, ensuring 24/7 uptime.
• Durable Materials: Constructed with galvanized carbon steel (for corrosion resistance) or stainless steel (for harsh environments), ensuring longevity in demanding settings.

Advantages: Transforming Project Efficiency

Compared to traditional stick-built systems, Instrument Air Skids offer transformative benefits:

• Faster Installation & Commissioning: Up to 90% of assembly, wiring, and testing is completed in a controlled factory environment, slashing on-site labor costs and project timelines.
• Guaranteed Quality: Factory testing (FAT) under optimal conditions ensures consistent performance, reducing the risk of on-site errors.
• Space & Cost Savings: Compact, integrated design optimizes footprint, while single-source vendor responsibility simplifies procurement and售后支持.
• Mobility & Flexibility: Easily relocatable for temporary sites or operational changes, making them ideal for remote projects or evolving industrial needs.

Typical Specifications

Frequently Asked Questions (FAQ)

• What certifications ensure safety? Vessels are PED 2014/68/EU-certified, and piping meets EN 10204-3.1 or ASME B31.3 standards, ensuring compliance with global safety norms.
• Why is -40°C dew point critical? It prevents condensation in cold environments, avoiding freezing, corrosion, or instrument malfunctions.
• How does a skid system save time? Factory pre-integration reduces on-site work by 90%, accelerating commissioning and project delivery.
• Is customization available? Yes—systems are tailored to flow rate, pressure, air quality, redundancy, and material requirements via a detailed customer datasheet.

Conclusion
Instrument Air Skids combine high purity, durability, and efficiency to meet the most stringent industrial demands. Whether for LNG plants, refineries, or pharmaceutical facilities, these systems ensure uninterrupted, clean air supply, minimizing operational risk and maximizing project success.

Ready to optimize your instrument air supply? Request a custom quote today based on your project’s unique specifications.
