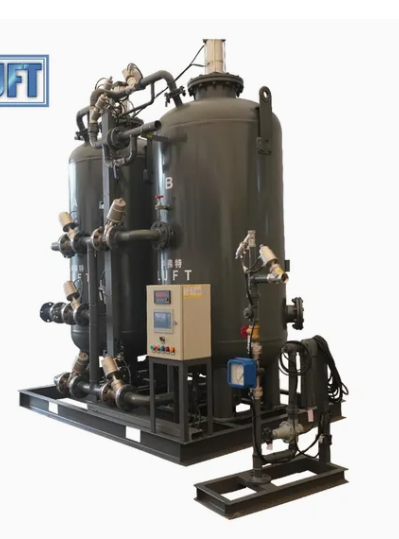

PSA Nitrogen Generator 50Nm3/H 99.999% Purity for Bright Annealing Heat Treatment
PSA Nitrogen Generator 50Nm3/H 99.999% Purity for Bright Annealing Heat Treatment
Specifications
Operation Mode :
Fully Automatic
Certification :
CE, ISO 9001:2015
Nitrogen Flow Rate :
50 Nm3/H
Model Number :
N2-HT-50
Output Pressure :
0.5-0.8 MPa
Footprint (LxWxH) :
2800 x 1600 x 2100 mm
Payment Terms :
T/T,L/C,Western Union
Control System :
PLC + Touch Screen HMI
Nitrogen Purity :
99.999%
Place of Origin :
Guangdong, China
Supply Ability :
10 Sets per Month
Packaging Details :
Export-grade plywood case with foam padding
MOQ :
1 Set
Power Consumption :
15 kW
Price :
USD 25,000-40,000 / Set
Brand Name :
GASPU
Delivery Time :
35 working days
Model :
N2-HT-50
Application :
Bright Annealing / Heat Treatment
Dew Point :
<= -65 degC
Description

PSA Nitrogen Generator 50Nm3/H for Bright Annealing Heat Treatment

The GASPU N2-HT-50 is a high-capacity PSA nitrogen generator purpose-built for bright annealing and metal heat treatment production lines. Delivering 50Nm3/H of nitrogen at 99.999% purity with an ultra-low dew point, it guarantees a protective furnace atmosphere for bright, oxide-free metal surfaces.

Key Features & Competitive Advantages

  • Ultra High Purity Output: 99.999% nitrogen with dew point ≤ -65°C, meeting the strictest bright annealing atmosphere requirements.
  • Bright Heat Processing Quality: Eliminates oxidation and decarburization, delivering bright and clean workpieces without secondary pickling.
  • Fully Automatic Operation: PLC-based control with HMI, automatic purity adjustment, data logging and remote alarm notification.
  • Lower Production Cost: Replaces purchased liquid nitrogen or hydrogen-based atmospheres, significantly reducing heat treatment operating expenses.
  • Reliable Industrial Design: Heavy-duty carbon steel frame, seamless steel piping, CE and ISO 9001:2015 certified, 24/7 continuous duty.

Technical Specifications

Model NumberN2-HT-50
Nitrogen Flow Rate50 Nm3/H
Nitrogen Purity99.999%
Dew Point≤ -65°C
Output Pressure0.5-0.8 MPa
Control SystemPLC + Touch Screen HMI
Operation ModeFully Automatic
Power Consumption15 kW
Footprint (LxWxH)2800 x 1600 x 2100 mm

Common Applications

Bright annealing of stainless steel and copper tubes, continuous heat treatment furnaces, wire rod annealing, powder metallurgy sintering and automotive parts heat treatment.

Frequently Asked Questions

Q: How does on-site nitrogen compare with liquid nitrogen supply?
A: On-site PSA generation typically saves 30-50% on gas cost and removes logistics and storage risks.

Q: Can purity be adjusted for different furnace processes?
A: Yes, purity from 99% to 99.999% is adjustable through the PLC touch screen.

Q: What is the delivery time?
A: 35 working days after order confirmation, with optional on-site commissioning.
