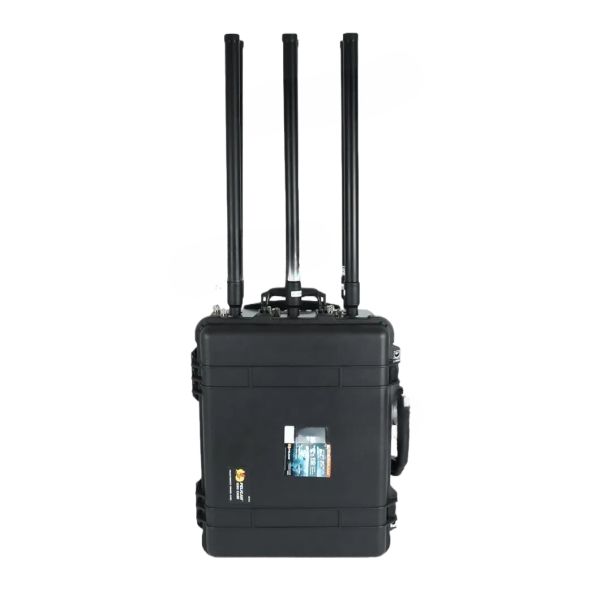

350W High Power Anti Drone Signal Jammer with 6 Modules and 500-2000m Jamming Range UAV Defense System
350W High Power Anti Drone Signal Jammer with 6 Modules and 500-2000m Jamming Range UAV Defense System
350W High Power Anti Drone Signal Jammer with 6 Modules and 500-2000m Jamming Range UAV Defense System
350W High Power Anti Drone Signal Jammer with 6 Modules and 500-2000m Jamming Range UAV Defense System
350W High Power Anti Drone Signal Jammer with 6 Modules and 500-2000m Jamming Range UAV Defense System
350W High Power Anti Drone Signal Jammer with 6 Modules and 500-2000m Jamming Range UAV Defense System
350W High Power Anti Drone Signal Jammer with 6 Modules and 500-2000m Jamming Range UAV Defense System
350W High Power Anti Drone Signal Jammer with 6 Modules and 500-2000m Jamming Range UAV Defense System
350W High Power Anti Drone Signal Jammer with 6 Modules and 500-2000m Jamming Range UAV Defense System
350W High Power Anti Drone Signal Jammer with 6 Modules and 500-2000m Jamming Range UAV Defense System
Specifications
Brand Name :
UND
Model Number :
U-JAM6UAV
Place of Origin :
China
MOQ :
1
Price :
Please consult a sales engineer
Payment Terms :
T/T
Supply Ability :
100
Delivery Time :
5-8 days
Description

350W High Power Anti Drone Signal Jammer with 6 Modules and 500-2000m Jamming Range UAV Defense System

350W High Power Anti Drone UAV Defense System Anti Drone Signal Jammer

Introduction:
 With drone sales expected grow exponentially in the near future, and an increasing number and severity of drone.
Incidents occurring daily, Ruicen launched Drone jammer to respond to nefarious use of consumer and commercial drones and the resulting need for effective countermeasures to drone intrusions.
Ruicen aims to help public and private sector customers, where allowed by law, take proactive measures against airborne threats to safety, security, and privacy.
 Introduction:

1,6 modules and Any ruin on the modules never interfere the normal operating for other modules.

2,Pelican case, shockproof and drop-resistance, available for the vehicle running in a worse field environment.

3,Device body is no more than 40kg.
4,Continuously and simultaneously interference to the common used Remote and Phone signals.

What is the purpose of this Jammer?
Independent design of control switch, let the drone stopping peeping, driving away, and forcing to land.

Jammer Applications:
Sensitive Areas/Prisons/Oil Refineries/Protected Areas

Product Parameters

Output interface

Description

RF output power(±1.5dBm)

Antenna

CH1

433MHz

47dBm (50W)

Omni Antenna

CH2

860-930MHz

47dBm (50W)

Omni Antenna

CH3

1170-1280MHz

47dBm (50W)

Omni Antenna

CH4

2400-2500MHz

50dBm (100W)

Omni Antenna

CH5

1560-1620MHz

47dBm (50W)

Omni Antenna

CH6

5725-5850MHz

47dBm (50W)

Omni Antenna

Power supply: AC220V

Total Output Power: 350Watt

Frequency Range: 20-6000MHz

Power consumption: 800Watt

Gross Weight: 45Kg

Humidity: up to 80%

Running Temperature: -20ºC to +65ºC

Jammer Module Number

6

Jamming Band

6 bands

Cooling System

4 Cooling Fans

System Protection

VSWR, Over-voltage, Over-current

Jamming Source

Noise Technology

Antenna Type

High Gain Omni and directional Antennas

Number of Antennas

6

Power Supply (Optional)

AC charging

Jamming range: 500-2000m according to signal network

EQUIPMENT STRUCTURE AND OPERATING PRINCIPLES

MACHINE BODY

1. Enclosured with Pelican Case, dustproof, shockproof and drop-resistance.
2. Single module design makes easier maintenance. Any module with damage can be took off and changed easily. It will not interfere the other modules' normal working.
