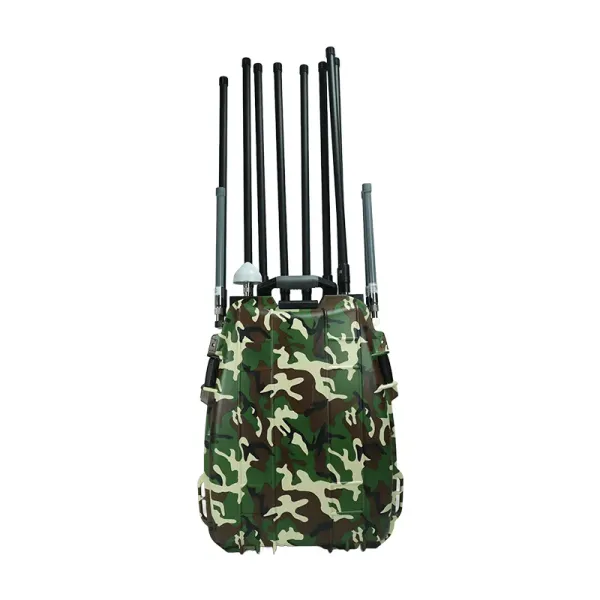

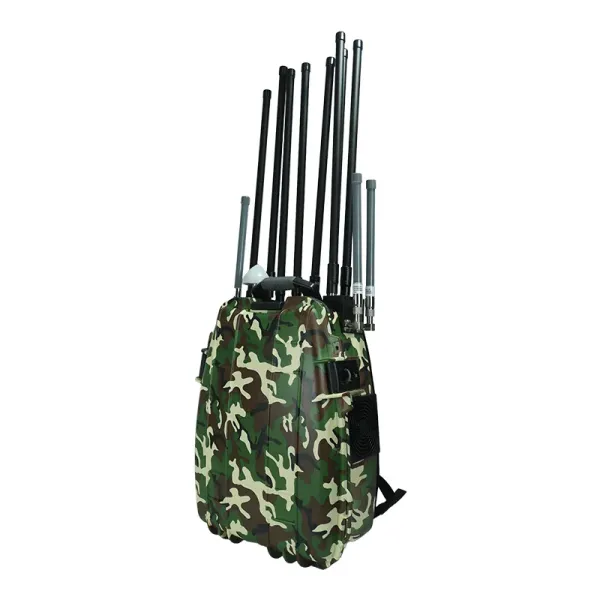

Ruicen UAV Backpack Drone Jammer, Detector, Spoofer 3 in 1 System

U-BP-DJP is a portable jamming detection system with comprehensive drone monitoring capabilities. It monitors the model and operating frequency of drones within the range through data mining and in-depth analysis of drone signals, and performs signal jamming on its own.

GPS deception / GPS Spoof
The drone GPS spoofing system is a countermeasure device based on satellite navigation signal simulation and jamming technology.It can achieve accurate positioning misleading, hovering or forced landing control of drones. It can be used in sensitive area protection, counter-espionage reconnaissance, event security and other scenarios to ensure low-altitude full-area safety.

All Parameters:
Product Information

2.4G/5.8G Wifi Signal Jammer Application:
Mainly applied to prisons, airports, scientific research centers, detention houses,
interrogation rooms, courthouses, labor camp, all kinds of important places, etc. that forbid aerial photography by use of UAV.

GPSL1/L2 Signal Jammer Features:
1. High integration & Stable operation, Noise technology.
2. Highly effective power & long jamming distance up to 2KM.
3. Separate control of each module, convenient operation.
4. High-quality tubular radiator, effective in radiating heat.
5. Import components, VSWR protection, Overheat protection
6. No interference to nearby frequency bands

Parameter

GPS deception / GPS Spoof
Product Specifications
1) Working frequency :
GPS/L 1(1575.42MHz ± 1.023MHz),
BDS/B 1(1561.098MHz±2.046MHz),
GLONASS/G 1(1602MHz±4MHz),
GALILEO/E 1(1575.42MHz ± 12.276MHz);
2) Navigation Spoofing Feature: Drone No-Fly Zone Projection (Forced Landing), Directional Displacement;
3) Defense distance: 1-5km ( PA RF power 25W);
4) Deception intervention time: 2s;
5) Effective deception angle: horizontal: 360 °, vertical: ±90 °;
6) Power supply method: 220V AC alternating current;
7) power consumption: ≤120W;
8) Data Interface: Network Port;
9) Protection level: IP65;
