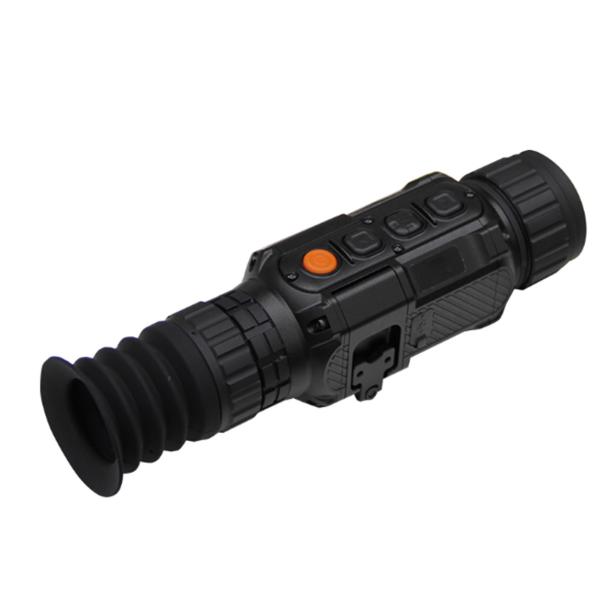

Multi Functional Thermal Vision Monocular 384×288 12µM Infrared Thermal Goggles
Multi Functional Thermal Vision Monocular 384×288 12µM Infrared Thermal Goggles
Specifications
MOQ :
1
Price :
100-50000（CNY）
Packaging Details :
Carton
Delivery Time :
Spot goods: 3-7 days Customized/imported products: 15-60 days
Payment Terms :
T/T
Supply Ability :
In stock
Price Term :
EXW price
Special Features :
thermal camera
Advance :
Compact, light
Pan :
360 degree auto tracking
Country of Origin :
China
Brand :
EV
Place of Origin :
CHINA
Brand Name :
EV
Description
Multi Functional Thermal Vision Monocular 384×288 12µM Infrared Thermal Goggles
Key Features
Advanced Thermal Imaging Technology
  • High-resolution infrared sensor (384×288 or higher)
  • <50mK thermal sensitivity for superior target detection
  • 8-14μm spectral range for optimal performance
Multi-Function Display System
  • High-contrast AMOLED display
  • Multiple color palettes (white hot/black hot/rainbow etc.)
  • On-screen display (OSD) with ballistic data
Precision Shooting Features
  • Integrated ballistic calculator
  • Multiple reticle patterns with zeroing capability
  • Range-finding function (up to 1000m)
Enhanced Optical Performance
  • 3-5x digital zoom
  • 50Hz refresh rate for smooth tracking
  • Wide field of view (≥12°)
Technical Specifications
DetectorUncooled vanadium oxide microbolometer
Resolution384×288/12µm
Lens focal length35mm
Field of view7.5°×5.7°
Visual magnification3.37～13.48
Working band8～14 µm
Frame rate50Hz
NETD≤50mk@300K
Display0.39" OLED 1024x768
Eyepiece diopter-5～＋5
Exit pupil distance45mm
Power supply2 CR123A lithium batteries
Weight500g
Battery life≥2.5h
Dimensions208×57×58mm (including eyepiece/objective cover)
Interfaceexternal power supply/Type-C
Working temperature-30℃～＋50℃
Protection levelIP67
Reliabilityshock 8009
Altitude≥5000m
