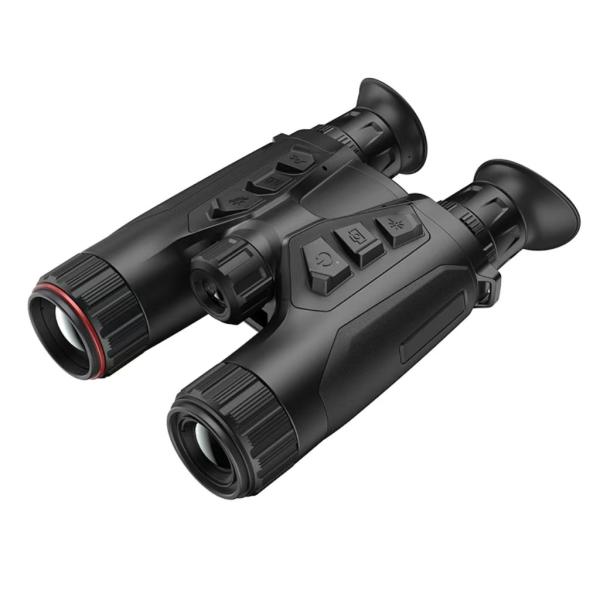

Manual Focus Infrared Thermal Vision Binoculars Thermal Scope Binoculars 1800 Meters
Manual Focus Infrared Thermal Vision Binoculars Thermal Scope Binoculars 1800 Meters
Specifications
MOQ :
1
Price :
100-50000（CNY）
Packaging Details :
Carton
Delivery Time :
Spot goods: 3-7 days Customized/imported products: 15-60 days
Payment Terms :
T/T
Supply Ability :
In stock
Price Term :
EXW price
Special Features :
thermal camera
Advance :
Compact, light
Pan :
360 degree auto tracking
Country of Origin :
China
Brand :
EV
Place of Origin :
CHINA
Brand Name :
EV
Description
Manual Focus Infrared Thermal Vision Binoculars Thermal Scope Binoculars 1800 Meters
Key Features
  • Distance Measurement
  • Directional Guidance
  • Compact & Lightweight Design
  • User-Friendly Display
  • Battery-Powered & Low Energy Consumption
  • Data Storage & Connectivity
Applications
  • Military & Tactical Operations
  • Outdoor Navigation & Hiking
  • Hunting & Shooting Sports
  • Surveying & Construction
  • Search & Rescue (SAR)
  • Maritime & Aviation Use
  • Law Enforcement & Security
Technical Specifications
Infrared Imaging
Specification Details
Image Sensor VOX uncooled focal plane array
Maximum Resolution 384 x 288
Frame Rate 50 Hz
Pixel Spacing 12 microns
Response Band 8μm to 14μm
NETD less than 20 mK (@25°C), F#=1.0
Lens (Focal Length) 35mm, F1.0
Focus Mode Manual focus
Detection Distance 1800 meters
Minimum Focusing Distance 3.5 meters
Magnification 4.0-32 (8x)
Field of View (H×V) 7.5° ×5.7°
Visible Light Imaging
Specification Details
Image Sensor 1.88-inch progressive scan CMOS
Maximum Resolution 2560 x 1440
Focal Length 31mm, F1.2
Minimum Working Distance 3m
Minimum Illumination 0.001 lux
Focus Mode Manual focus
Magnification 2.9-23.2 (8x)
Field of View (H×V) 13.9° x7.8°
Intelligent Infrared Fill Light Yes
Night Visibility Range 400 meters
Image Display
Specification Details
Display 0.49 inches, OLED, 1920×1080
Palette Black Hot, White Hot, Red Hot, Fusion
Optics Day, Night, Auto FFC (flat field correction)
Mode Automatic, manual, external correction
Diopter (Range) -5D~+3D
Brightness Adjustment Yes
Color Tone Adjustment Cold, warm
Contrast Adjustment Yes
System Features
Specification Details
Record Video Yes
Taking Photos Yes
Recording Yes
Standby Mode Yes
Storage Built-in EMMC (64 GB)
Hotspot Tracking Yes
Electronic Compass Yes
GPS Yes
Local Photo Album Yes
Battery Type Replaceable and rechargeable lithium-ion battery
Battery Working Time ≥6h (25°C, hotspot turned off)
Type-C Power Supply 5V DC, 2 A, supports external power supply
Protection Level IP67 protection level
Dimensions 138.2 mm × 68.4 mm × 212.4
Working Temperature -30°C ~ +55°C
Weight 780g (excluding battery)
Interpupillary Distance Adjustment Range 60 mm to 74 mm
Mounting Adapter 1/4"-20-UNC
Laser Rangefinder
Specification Details
Laser Safety Class Class 1
Wavelength 905nm
Maximum Measuring Distance 1000 meters
Measurement Accuracy ±1 meter
Minimum Measuring Distance 10m
Infrared Wavelength 850 nanometers
Beam Angle Adjustable 7.6-11.5°
