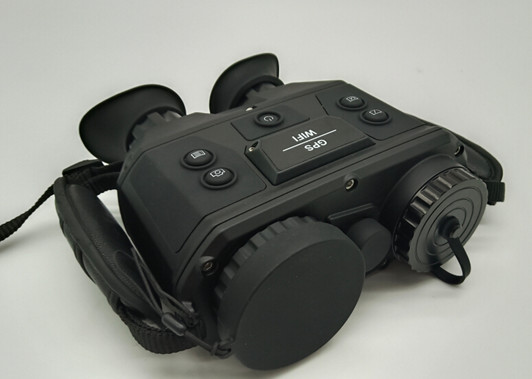

Handheld Adjustable 12x Military Thermal Binoculars Thermal Scope Binoculars IP66
Handheld Adjustable 12x Military Thermal Binoculars Thermal Scope Binoculars IP66
Specifications
MOQ :
1
Price :
100-50000（CNY）
Packaging Details :
Carton
Delivery Time :
Spot goods: 3-7 days Customized/imported products: 15-60 days
Payment Terms :
T/T
Supply Ability :
In stock
Price Term :
EXW price
Special Features :
thermal camera
Advance :
Compact, light
Pan :
360 degree auto tracking
Country of Origin :
China
Brand :
EV
Place of Origin :
CHINA
Brand Name :
EV
Description
Handheld Adjustable 12x Military Thermal Binoculars Thermal Scope Binoculars IP66
Key Features
  • Dual-Sensor Fusion Technology: Combines thermal imaging + low-light night vision for superior detection in all conditions (day/night, fog, smoke)
  • High-Resolution Thermal Sensor: <17μm thermal sensitivity detects subtle temperature differences for precise target identification
  • Full HD Low-Light Camera: 1080p resolution with advanced IR illumination for detailed imaging in darkness
  • Smart Image Fusion Modes: 3 display modes: Thermal-only, Night Vision-only, or Fusion (overlay) for optimal situational awareness
Technical Specifications
Detector Type Uncooled vanadium oxide or polysilicon
Detector Specifications 640×512
Response Band 8~14μm
Pixel Size 17μm
Frame Frequency 25Hz/50Hz
Reticle Display Modes White hot/black hot
Pseudo-color Modes Eight display modes (city, jungle, desert, ocean, snow, fusion thermal image, black and white thermal image, visible light)
Advanced Features Hotspot tracking, Boundary detection, Fast ranging
Electronic Magnification 1, 2, 4 times magnification
Lens Focal Length 50mm f=1.2
Field of View 7.15°×5.35°
Focus Adjustment Manual
Horizontal Viewing Angle 4.63°×3.64°
Aperture F0.8
Resolution 1920×1080
Maximum Frame Rate 25 frames/second (1920×1080)
White Balance Automatic black and white
Illumination 0.0001lux
Fusion Black and White Observation screen displays black and white image after fusion of thermal imaging and visible light
Video Format MP4
Image Resolution 1024×576 (D1)
Image Storage JPG
Storage Capacity Standard 8G (maximum optional 64G)
File Management Support playback and deletion of files
Display OLED 0.5 inches
Contrast Ratio 10000:1
Exit Pupil Distance 26mm
Magnification 12x
Eyepiece Resolution 1024×768
Detection Range - Personnel (1.8m×0.5m) Detection: 1.5km, Recognition: 0.8km
Detection Range - Vehicle (2.3m×2.3m) Detection: 3km, Recognition: 1.5km
Video Output PAL/NTSC
External Power Supply DC 5V
Maximum Current 1A
Connectivity WIFI Support, Network hotspot Support
Power Reverse Connection Positive and negative adaptive
Data Export USB 2.0
Satellite Positioning GPS
Working Temperature -45℃～+60℃
Storage Temperature -45℃～+60℃
Working Humidity 95% RH MAX (No condensation)
Protection Level IP66
Input Voltage DC2.5V~5V
Power Consumption Average power consumption 4W
Impact Resistance Military grade
Working Time Continuous working time >5 hours
Dimensions (mm) 220 (L) × 85 (W) × 80 (H)
Net Weight <1.1kg (including battery, hand strap)
Adjustable Parameters Image brightness, Image contrast, Screen brightness, Screen contrast, OSD display parameters (can be turned on or off)
