Night Vision Helmet Mounted Monocular Adjustable 360 Degree Auto Tracking
Night Vision Helmet Mounted Monocular Adjustable 360 Degree Auto Tracking
Specifications
MOQ :
1
Price :
100-50000（CNY）
Packaging Details :
Carton
Delivery Time :
Spot goods: 3-7 days Customized/imported products: 15-60 days
Payment Terms :
T/T
Supply Ability :
In stock
Price Term :
EXW price
Special Features :
thermal camera
Advance :
Compact, light
Pan :
360 degree auto tracking
Country of Origin :
China
Brand :
EV
Place of Origin :
CHINA
Brand Name :
EV
Description

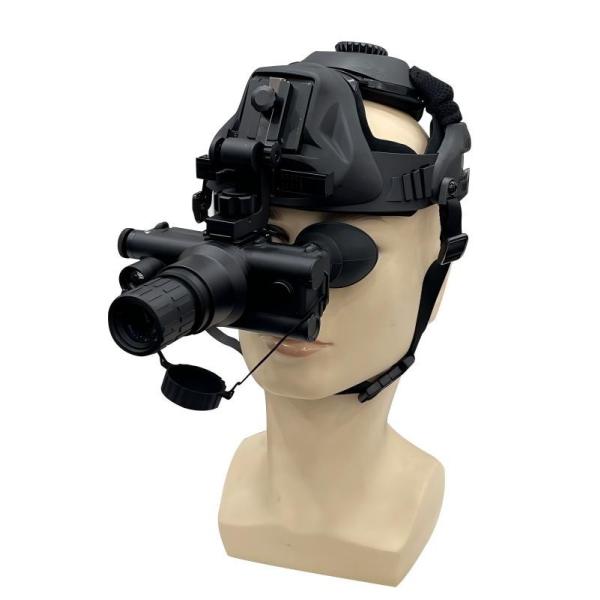

Night Vision Helmet Mounted Monocular Adjustable 360 Degree Auto Tracking
Product Overview

Helmet Mounted Monocular Night Vision Device Adjustable For Versatile Applications

Key Features
  • High-Performance Gen 2+ Image Intensifier
    Enhanced light amplification for clear imaging in moonlight/starlight conditions. Reduced halo effect around light sources compared to standard Gen 2.
  • 1x Magnification (Unmagnified View)
    Provides natural field of view for situational awareness and fast-moving scenarios. Ideal for close-to-medium range observation.
  • Helmet-Mountable Binocular/Monocular Design
    Can be configured as dual-tube binocular (3D depth perception) or single-tube monocular (lightweight option). Compatible with standard NVG helmet mounts (e.g., Wilcox, Norotos).
  • Built-In Infrared (IR) Illuminator
    Extends visibility in total darkness with adjustable intensity for stealth operations.
Technical Specifications
Image Intensifier Level Super Second Generation
Magnification 1X
Resolution 45-57
Cathode Surface Type S25
Signal-to-Noise Ratio (dB) 15-21
Optical Sensitivity (μA/lm) 450-500
Trouble-Free Time (hours) 10,000
Field of View (degrees) 42° (±3)
Observation Distance (meters) 180-220
Eye Distance Range 59-71mm
Eyepiece Diopter Adjustment Range ±5
Lens System F1.2, 25mm
Optical Coating Multi-layer composite broadband ultra-vacuum ion anti-reflection coating
Objective Lens Adjustment Range 0.25–∞ meters
Automatic Anti-Glare High sensitivity, ultra-fast, broadband detection
Auxiliary Light Source Wavelength 850nm
Night Vision Image (optional) 800 lines of Video
Flip Detection All-solid-state non-contact automatic attitude recognition
Dimensions (mm) 183×132×58 (including eye mask)
Product Material All aviation aluminum alloy
Weight (g) 386
Power Supply Voltage 2.4-3.2V
Battery Type AAA ×2
Continuous Working Time 60 hours (without infrared)
35 hours (with infrared on)
Working Temperature Range -40°C to +50°C
Relative Humidity 5%-98%
Dust and Waterproof Rating IP65 (IP67 optional)
