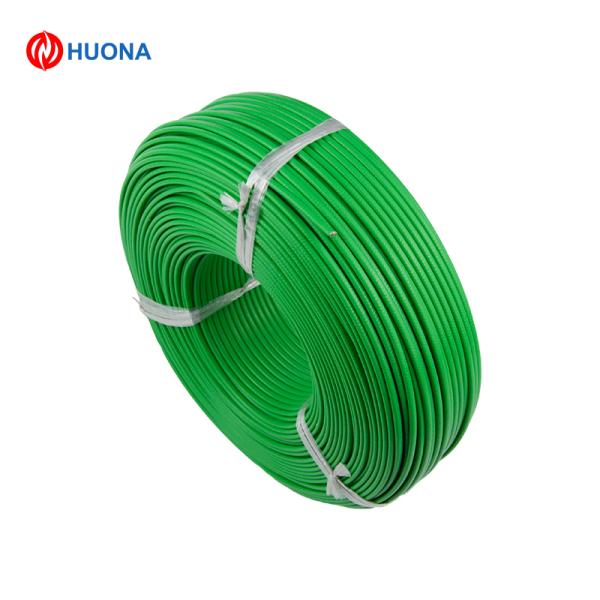

Type K Silicone Thermocouple Compensation Cable
Type K Silicone Thermocouple Compensation Cable
Specifications
Brand Name :
Huona
Model Number :
Type K
Certification :
ISO9001
Place of Origin :
Shanghai
MOQ :
200m
Price :
Negotiable
Payment Terms :
L/C,Western Union,T/T,MoneyGram
Supply Ability :
500 tons per month
Delivery Time :
5-21days
Packaging Details :
on Reel, Carton Box
Description

Silicone Compensation Type K Thermocouple Cable

Product Overview

Silicone compensation Type K thermocouple cable is a specialized cable designed to extend the signal from Type K thermocouples (Chromel-Alumel) to measuring instruments. It features conductors made of compensation alloys (copper-nickel for positive, nickel-manganese for negative) that mimic the thermoelectric properties of Type K materials, ensuring accurate temperature signal transmission. The silicone insulation and jacket provide excellent high-temperature resistance and flexibility, making it suitable for industrial environments with elevated temperatures.

Standard Designations

  • Thermocouple Type: K (compensation cable)
  • IEC Standard: IEC 60584-3 (compensation cables for thermocouples)
  • Silicone Insulation Standard: Meets UL 94 V-0 flammability rating
  • Color Coding: Positive (compensation alloy) - yellow; Negative (compensation alloy) - red (per IEC)

Key Features

  • High-Temperature Resistance: Silicone insulation allows continuous operation at -60°C to 200°C (short-term up to 250°C)
  • Signal Accuracy: Compensation alloys minimize EMF deviation (≤2.5μV/°C at 100°C vs. Type K thermocouple)
  • Flexibility: Silicone material enables bending radius ≥5× cable diameter for tight installations
  • Chemical Resistance: Resistant to oils, acids, and ozone, suitable for harsh industrial environments
  • Electrical Insulation: Insulation resistance ≥100 MΩ·km at 20°C


Part Number

K-SR-SR-0.81R

ITEM

Parameter

Conductor

Material

NiCr.(+)/NiAl.(-)

Size

26/0.2mm

O.D.(Ref)

1.20mm




Insulation

Material

Silicone rubber


Thickenss

0.50mm


O.D.(Ref)

2.20±0.05mm


Color

Green(+)/White(-)




Lay Up

2 cores twisted


O.D.(Ref)

4.40±0.1mm




Jacket

Material

Silicone rubber

Thickenss

0.80mm

O.D.(Ref)

6.00±0.2mm

Color

Green


Typical Applications

  • Industrial furnaces and ovens
  • Chemical processing plants
  • Automotive engine bays
  • Power generation facilities
  • High-temperature HVAC systems


We also supply other types of thermocouple compensation cables (Type J, T, N) with various insulations (PTFE, fiberglass). Free samples and technical datasheets (including EMF vs. temperature curves) are available upon request. Custom lengths and conductor sizes can be tailored to specific requirements.
