Type K 2x0.81mm Thermocouple Extension Wire Cable Reliable Accurate
Type K 2x0.81mm Thermocouple Extension Wire Cable Reliable Accurate
Type K 2x0.81mm Thermocouple Extension Wire Cable Reliable Accurate
Type K 2x0.81mm Thermocouple Extension Wire Cable Reliable Accurate
Specifications
Brand Name :
HUONA
Model Number :
Type K
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
100m
Price :
Bargain
Payment Terms :
L/C,T/T,Western Union,
Supply Ability :
500000meters/month
Delivery Time :
5-21days
Packaging Details :
100m/spool, 500m/roll
Conductor Dia :
20AWG
Size :
2*0.81mm Type K
Color :
Brown, Yellow, Red
Jacket Material :
PFA
Standard :
ANSI96.1 Or IEC 584-2
Package :
100m/roll
Description

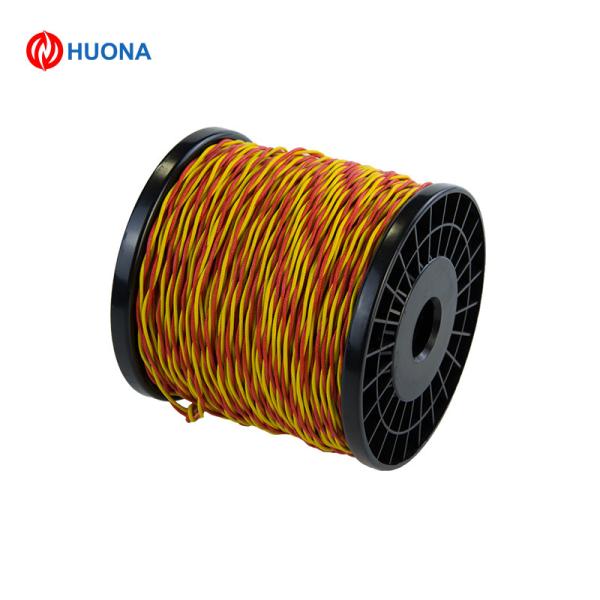

Type K 2x0.81mm Thermocouple Extension Wire Cable
Type K (CHROMEL vs ALUMEL) thermocouple extension wire is designed for use in oxidizing, inert, or dry reducing atmospheres. While exposure to vacuum is limited to short time periods, this wire must be protected from sulfurous and marginally oxidizing atmospheres. It delivers reliable and accurate performance at high temperatures.
Product Specifications
  • Style: Extension Wire
  • Type: Thermocouple Extension Wire
Thermocouple Wire Classification
  • Thermocouple Level (High Temperature): Suitable for thermocouple types K, J, E, T, N and L, primarily used in high temperature detection instruments and temperature sensors.
  • Compensating Wire Level (Low Temperature): Designed for compensating cable and extension wire applications for thermocouple types S, R, B, K, E, J, T, N and L, including heating cables and control cables.
Thermocouple Specifications Table
Wire Alloys Calibration ANSI Color Code Temperature Range Standard Limits Special Limits
Iron(+) vs. Constantan(-) J White/Red 0°C to +285°C
285°C to +750°C		 ±2.2°C
±0.75%		 ±1.1°C
±0.4%
CHROMEL(+) vs. ALUMEL(-) K Yellow/Red -200°C to -110°C
-110°C to 0°C
0°C to +285°C
285°C to +1250°C		 ±2%
±2.2°C
±2.2°C
±0.75%		 ±1.1°C
±0.4%
Copper(+) vs. Constantan(-) T Blue/Red -200°C to -65°C
-65°C to +130°C
130°C to +350°C		 ±1.5%
±1°C
±0.75%		 ±0.8%
±0.5°C
±0.4%
CHROMEL(+) vs. Constantan(-) E Purple/Red -200°C to -170°C
-170°C to +250°C
250°C to +340°C
340°C to +900°C		 ±1%
±1.7°C
±1.7°C
±0.5%		 ±1°C
±1°C
±0.4%
±0.4%
Thermocouple Variety and Specifications
Variety Type Measurement Range (°C)
NiCr-NiSi K -200 to 1300
NiCr-CuNi E -200 to 900
Fe-CuNi J -40 to 750
Cu-CuNi T -200 to 350
NiCrSi-NiSi N -200 to 1300
NiCr-AuFe0.07 NiCr-AuFe0.07 -270 to 0
Global Thermocouple Color Standards
Type K 2x0.81mm Thermocouple Extension Wire Cable Reliable Accurate
Product Images
Type K 2x0.81mm Thermocouple Extension Wire Cable Reliable Accurate Type K 2x0.81mm Thermocouple Extension Wire Cable Reliable Accurate
Frequently Asked Questions
What's the minimum quantity customer can order?
If we have your size in stock, we can provide any quantity you want. If we do not have stock, for spool wire we can produce 1 spool (approximately 2-3kg), and for coil wire the minimum is 25kg.
How can you pay for small sample amount?
We accept Western Union and wire transfer for sample amounts.
Customer does not have express account. How will us arrange the delivery for sample order?
Just provide your address information and we will check the express cost. You can arrange to pay the express cost together with the sample value.
What's our payment terms?
We accept LC and T/T payment terms, depending on delivery requirements and total amount. We can discuss details after receiving your specific requirements.
Do you provide free samples?
If you need several meters and we have your size in stock, we can provide free samples, but customers need to bear the international express cost.
What's our working time?
We respond to all inquiries via email, phone, or online contact tools within 24 hours, including weekends and holidays.
