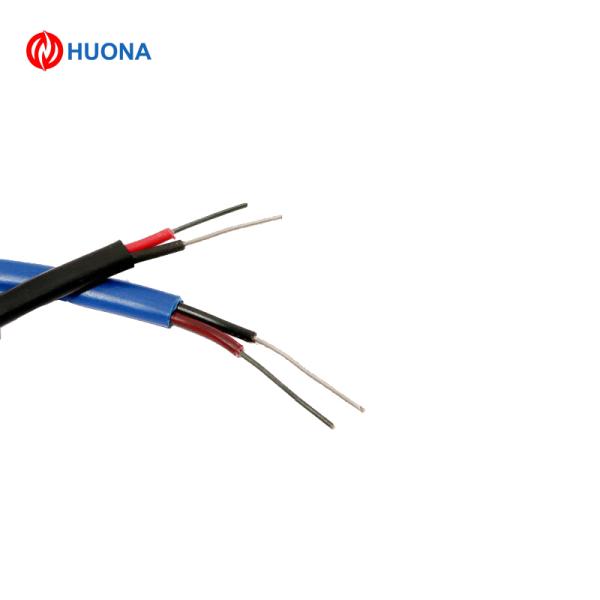

T-Type Thermocouple Wire PVC Insulation -40°C to 80°C
T-Type Thermocouple Wire PVC Insulation -40°C to 80°C
Specifications
Brand Name :
Huona
Model Number :
Type T
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
100m
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union,
Supply Ability :
500 tons per month
Delivery Time :
5-21days
Packaging Details :
Plastic spools with moisture-resistant wrapping​
Product Name :
Thermocouple Type T Cable
Insulation Material :
PVC
Insulation Thickness​ :
0.15mm–0.3mm
Accuracy​ :
Class 1: ±0.5°C or ±0.4%t
Temperature Range​ :
-40°C to 80°C
PVC Insulation Color​ :
Blue (positive), red (negative)​
Operating Voltage​ :
≤300V AC/DC​
Packaging​ :
Plastic spools with moisture-resistant wrapping​
Description
T-Type Thermocouple Wire with PVC Insulation
Smooth sensing thermocouple wire with safe PVC electrical insulation for low to medium temperature applications.
Product Attributes
Product Name Thermocouple Type T Cable
Insulation Material PVC
Insulation Thickness 0.15mm–0.3mm
Accuracy Class 1: ±0.5°C or ±0.4%t
Temperature Range -40°C to 80°C
PVC Insulation Color Blue (positive), red (negative)
Operating Voltage ≤300V AC/DC
Packaging Plastic spools with moisture-resistant wrapping
Product Overview
T-Type thermocouple wire with PVC insulation consists of a copper positive leg and a constantan (copper-nickel alloy) negative leg, each individually insulated with PVC. The PVC jacket provides electrical insulation and protection against moisture, making it suitable for low to medium temperature sensing in non-corrosive environments.
Widely used in food processing, HVAC systems, and environmental monitoring where insulated wiring is required.
Standard Designations
  • Thermocouple Type: T-Type (Copper-Constantan)
  • IEC Standard: IEC 60584-1
  • Insulation Standard: PVC meets UL 94 V-0 flammability rating
  • Color Coding: Positive (copper) - blue insulation; Negative (constantan) - red insulation (per IEC)
Key Features
  • PVC insulation for electrical isolation and moisture resistance
  • Operating temperature range compatible with PVC's thermal limits
  • Flexible design for easy installation in tight spaces
  • Color-coded conductors for quick identification
  • Suitable for dry and moderately humid environments
Technical Specifications
Temperature Range -40°C to 80°C (continuous, limited by PVC insulation)
EMF Output at 100°C 4.277 mV (reference junction at 0°C)
Accuracy Class 1: ±0.5°C or ±0.4% of reading (whichever is larger)
Conductor Diameters 0.2mm, 0.3mm, 0.5mm, 0.8mm, 1.0mm
Insulation Thickness 0.15mm-0.3mm (varies by conductor diameter)
Overall Diameter 0.5mm-2.0mm (conductor + insulation)
Insulation Resistance ≥100 MΩ*km at 20°C
Chemical Composition (Typical, %)
Component Positive Leg (Copper) Negative Leg (Constantan)
Copper (Cu) ≥99.99 55-60
Nickel (Ni) ≤0.002 40-45
Iron (Fe) ≤0.001 ≤0.5
Manganese (Mn) ≤0.001 ≤1.0
Total Impurities ≤0.01 ≤1.0
Product Specifications
Cable Structure Twisted pair (individual PVC insulation + optional overall jacket)
Length per Spool 50m, 100m, 200m, 500m, 1000m
PVC Insulation Color Blue (positive), red (negative)
Flammability Rating UL 94 V-0
Operating Voltage ≤300V AC/DC
Packaging Plastic spools with moisture-resistant wrapping
Customization Options Custom lengths, conductor sizes, and jacket colors
We also supply T-type thermocouple assemblies, connectors, and other insulated wire types (PTFE, fiberglass). Free samples and technical datasheets are available upon request, with custom solutions tailored to specific application needs.
