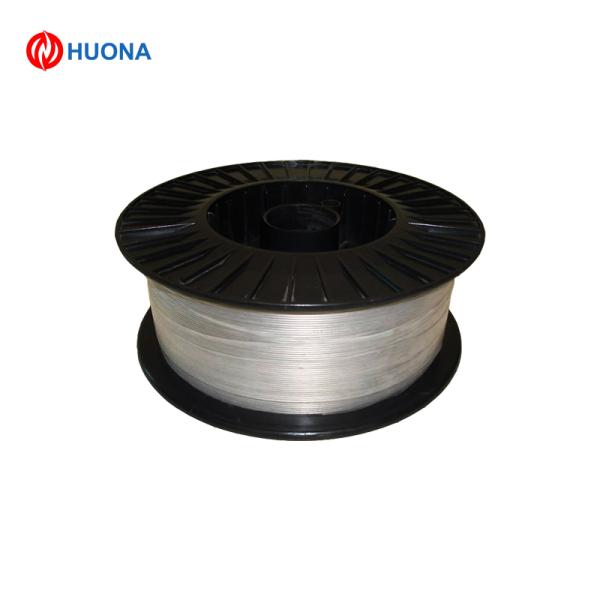

AWS A5.14 ErNiCu 7 Monel 400 Nickel Welding Wire NO5500
AWS A5.14 ErNiCu 7 Monel 400 Nickel Welding Wire NO5500
Specifications
Brand Name :
HUONA
Model Number :
ErNiCu 7
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
15KG
Price :
Bargain
Payment Terms :
L/C,T/T,Western Union,
Supply Ability :
300 tons per month
Delivery Time :
5-21DAYS
Packaging Details :
Spool package with Carton box, Coil package with polybag
Material: :
Nickel,Copper. Ti
Density: :
8.7 G/cm3
Elongation: :
≥30 %
Melting Point: :
1320-1370℃
Tensile Strength :
517 MPa
Supply Ability: :
300 tons per month
Description
AWS A5.14 ErNiCu 7 Monel 400 Nickel Welding Wire NO5500
Product Specifications
Attribute Value
Material Nickel, Copper, Ti
Density 8.7 G/cm³
Elongation ≥30%
Melting Point 1320-1370℃
Tensile Strength 517 MPa
Supply Ability 300 tons per month
Product Description

AWS A5.14 ErNiCu 7 Monel 400 NO5500 Nickel Welding Wire

Nickel-Based Welding Wire

ERNiCu-7 is a copper-nickel alloy base wire for GMAW and GTAW welding of Monel alloys 400 and 404. Also used for overlaying steel after first applying layer of 610 nickel.

It is used for joining base materials such as UNS number NO4400, NO4405, and NO5500. This alloy can be used for dissimilar welding applications using various nickel-copper alloys to nickel 200 and to copper-nickel alloys. This can be used for MIG overlay on steel after a first layer with nickel 208.

Welding Series
  • ERNiCrMo-3
  • ERNiCrMo-4
  • ERNiCrMo-13
  • ERNiCrFe-3
  • ERNiCrFe-7
  • ERNiCr-3
  • ERNiCr-7
  • ERNiCu-7
  • ERNi-1
  • ER70S-6

Standard: Conforms to Certification AWS A5.14 ASME SFA A5.14

Size: 0.8MM / 1.0MM / 1.2MM / 1.6MM / 2.4MM / 3.2MM / 3.8MM / 4.0MM / 5.0MM

Form: MIG (15kgs/spool), TIG (5kgs/box), Strip

Chemical Properties of ErNiCu-7
Item C Mn Fe P S Si Cu Ni Co Al Ti Cr Nb+Ta Mo V W Rest
ERNiCu-7 0.15 4 2.5 0.02 0.015 1.25 rest 62-69 N/A 1.25 1.5-3 N/A N/A N/A N/A N/A ≤0.50
Available Sizes
Type Packaging Available Sizes
MIG 15kg/spool 0.8mm, 1.2mm, 2.4mm, 3.2mm
TIG 5kg/box, Strip Various sizes available
