ERNiCrMo-10 Welding Wire for Hastelloy C22 Corrosion Resistance
ERNiCrMo-10 Welding Wire for Hastelloy C22 Corrosion Resistance
Specifications
Brand Name :
HUONA
Model Number :
ERNiCrMo-4
Certification :
AWS A5.14 / ASME SFA-5.14 ERNiCrMo-10; ISO 9001 / CE / RoHS available
Place of Origin :
CHINA
MOQ :
15KG
Price :
NEGOTIATION
Payment Terms :
Western Union,T/T
Supply Ability :
1000TON/YEAR
Delivery Time :
A WEEK
Packaging Details :
CASE
Diameter Range :
1.0 mm – 4.0 mm (Most common: 1.2 mm, 2.4 mm, 3.2 mm)
Form :
Spools (precision wound), Straight rods (1m TIG rods)
Welding Process :
TIG (GTAW), MIG (GMAW), sometimes SAW (Submerged Arc)
Tolerance :
Diameter: ±0.02 mm; Length: ±1.0 mm
Surface Finish :
Bright, clean, oxide-free surface with light drawing oil (optional)
Storage Recommendations :
Store in dry, clean conditions below 30°C; use within 12 months
Country of Origin :
China (OEM available)
Description

Product Description

ERNiCrMo-10 is a high-performance nickel-chromium-molybdenum alloy welding wire designed for the most severe corrosive environments. It is the designated filler metal for welding Hastelloy C22 (UNS N06022) and other super austenitic and nickel alloys. With excellent resistance to oxidizing and reducing agents, this wire ensures superior weld integrity even in aggressive chemical environments.

It resists pitting, crevice corrosion, intergranular corrosion, and stress corrosion cracking across a broad range of temperatures and media. ERNiCrMo-10 is ideal for cladding, joining, or overlay welding in the chemical processing, pharmaceutical, pollution control, and marine industries. Compatible with TIG (GTAW) and MIG (GMAW) processes.

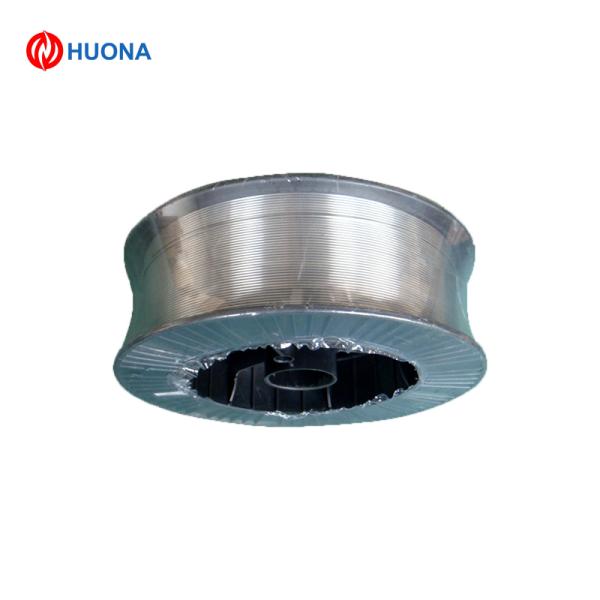

ERNiCrMo-10 Welding Wire for Hastelloy C22 Corrosion Resistance

Key Features

  • Excellent corrosion resistance in oxidizing and reducing environments

  • Highly resistant to wet chlorine, nitric, sulfuric, hydrochloric, and acetic acids

  • Resists pitting, SCC, and crevice corrosion in chloride-rich media

  • Stable mechanical properties up to 1000°C (1830°F)

  • Ideal for dissimilar metal welding, especially between stainless steel and nickel alloys

  • Suitable for pressure vessels, reactors, and process piping

  • Complies with AWS A5.14 ERNiCrMo-10 / UNS N06022

Common Names / Designations

  • AWS: ERNiCrMo-10

  • UNS: N06022

  • Equivalent Alloy: Hastelloy C22

  • Other Names: Alloy C22 welding wire, NiCrMoW filler wire, Nickel C22 MIG TIG wire

Typical Applications

  • Chemical processing plants and reactors

  • Pharmaceutical and food-grade production vessels

  • Flue gas scrubbers and pollution control systems

  • Seawater and offshore structures

  • Heat exchangers and condensers

  • Dissimilar metal joining and anti-corrosion overlay

Typical Chemical Composition (%)

Element Content (%)
Nickel (Ni) Balance (≥ 56.0%)
Chromium (Cr) 20.0 – 22.5
Molybdenum (Mo) 12.5 – 14.5
Iron (Fe) 2.0 – 6.0
Tungsten (W) 2.5 – 3.5
Cobalt (Co) ≤ 2.5
Manganese (Mn) ≤ 0.50
Silicon (Si) ≤ 0.08
Carbon (C) ≤ 0.01

Mechanical Properties (As-Welded)

Property Value
Tensile Strength ≥ 760 MPa (110 ksi)
Yield Strength (0.2% OS) ≥ 420 MPa (61 ksi)
Elongation (in 2 in.) ≥ 25%
Hardness (Brinell) Approx. 180 – 200 BHN
Impact Toughness (RT) ≥ 100 J (Charpy V-notch, typical)
Density ~8.89 g/cm³
Modulus of Elasticity 207 GPa (30 x 10⁶ psi)
Operating Temperature -196°C to +1000°C
Weld Deposit Soundness Excellent – low porosity, no cracking
Corrosion Resistance Superior in oxidizing and reducing media

These properties make ERNiCrMo-10 suitable for high-integrity welds in pressure-bound systems, even under fluctuating thermal and chemical conditions.

Available Specifications

Item Detail
Diameter Range 1.0 mm – 4.0 mm (Most common: 1.2 mm, 2.4 mm, 3.2 mm)
Form Spools (precision wound), Straight rods (1m TIG rods)
Welding Process TIG (GTAW), MIG (GMAW), sometimes SAW (Submerged Arc)
Tolerance Diameter: ±0.02 mm; Length: ±1.0 mm
Surface Finish Bright, clean, oxide-free surface with light drawing oil (optional)
Packaging Spools: 5kg, 10kg, 15kg plastic or wire basket spools; Rods: Packed in 5kg plastic tubes or wooden boxes; OEM labeling & palletization available
Certification AWS A5.14 / ASME SFA-5.14 ERNiCrMo-10; ISO 9001 / CE / RoHS available
Storage Recommendations Store in dry, clean conditions below 30°C; use within 12 months
Country of Origin China (OEM available)

Optional services include:

  • Custom wire cut-to-length (e.g. 350 mm, 500 mm)

  • Third-party inspection (SGS/BV)

  • Material Test Certificate (EN 10204 3.1/3.2)

  • Low-heat batch production for critical applications

Related Alloys

  • ERNiCrMo-3 (Inconel 625)

  • ERNiCrMo-4 (Inconel 686)

  • ERNiMo-3 (Alloy B2)

  • ERNiFeCr-2 (Inconel 718)

  • ERNiCr-3 (Inconel 82)
