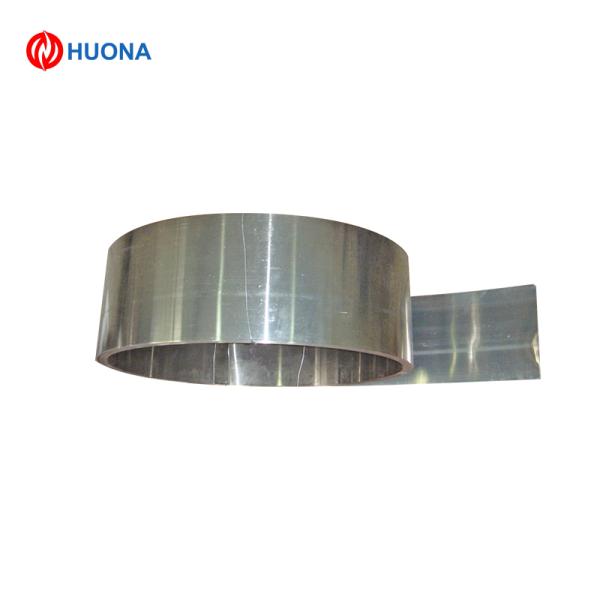

1j66 Soft Magnetic Alloy Strip /Plate /Sheet Ni65mn
1j66 Soft Magnetic Alloy Strip /Plate /Sheet Ni65mn
Specifications
Brand Name :
HUONA
Model Number :
1J66
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
10
Price :
DISCUSS
Payment Terms :
L/C,T/T,Western Union,
Supply Ability :
200ton/Month
Delivery Time :
7-21 DAYS
Packaging Details :
Wooden Case
Model NO. :
1J66
Standard :
GB, DIN, ASTM
Curie Point :
600
Surface Treatment :
Polishing
Purity :
65%
State :
Soft State
Density :
8.25
Resisivity :
0.25
Production Capacity :
200ton/Month
Description
1J66 Soft Magnetic Alloy Strip / Plate / Sheet Ni65Mn
Product Specifications
Attribute Value
Model NO. 1J66
Standard GB, DIN, ASTM
Curie Point 600
Surface Treatment Polishing
Purity 65%
State Soft State
Density 8.25
Resistivity 0.25
Production Capacity 200ton/Month
Product Description

Constant permeability soft magnetic alloy. General soft magnetic alloy magnetic permeability will change with the change of the magnetic field intensity and rapidly, while constant magnetic conductivity of alloy is within the scope of a certain width of the magnetic field strength, permeability remains basically constant, and in a certain temperature and frequency range also remains fairly constant. This alloy constant permeability properties can be gained through the study of the transverse magnetic field heat treatment of alloys.

Chemical Composition
Composition C P S Mn Si
Content(%) ≤ 0.03 0.02 0.02 0.7~1.1 0.1
Composition Ni Cr Mo Cu Fe
Content(%) 64.5~66.5 - - - Bal
Physical Properties
Shop Sign Melting Point (ºC) Resistivity (μΩ*m) Density (g/cm³) Curie Point (ºC) Saturated Magnetic Induction Intensity
1J46 - 0.25 8.25 600 1.3
Soft magnetic alloys are weak magnetic field materials with high permeability and low coercive force. These alloys are widely used in radio electronics, precision instruments and meters, remote control and automatic control systems. The combination is mainly used for energy conversion and information processing, making them important materials in the national economy.
Applications
  • Small transformers
  • Pulse transformers
  • Relays
  • Transformers
  • Magnetic amplifiers
  • Electromagnetic clutches
  • Reactor cores
  • Magnetic shielding for weak magnetic or secondary magnetic field applications
Key Features
  • Low coercivity and magnetic hysteresis loss
  • High resistivity and low eddy-current loss
  • High initial magnetic permeability and maximum magnetic permeability
  • High saturation magnetic flux density
Packaging Details
  • Coil (plastic spool) + compressed ply-wooden case + pallet
  • Coil (plastic spool) + carton + pallet
Products and Services
  • ISO9001 and ISO14001 certified
  • Comprehensive after-sale services
  • Small orders accepted
  • Fast delivery
