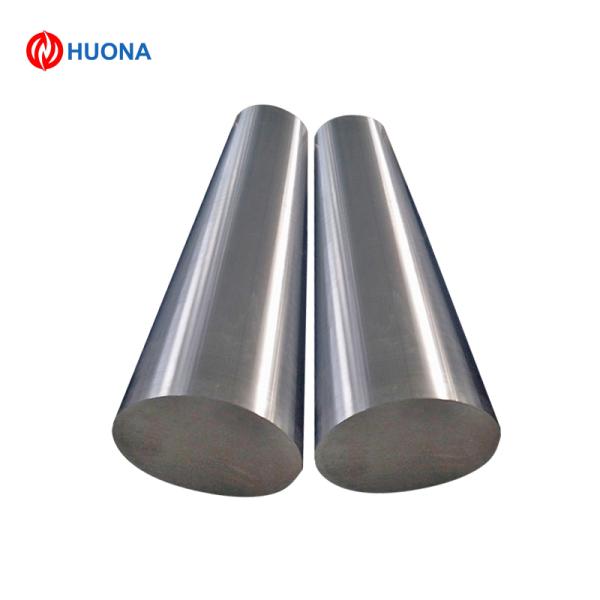

Co50V2 Hiperco 50 Soft Magnetic 1J22 Alloy Bar
Co50V2 Hiperco 50 Soft Magnetic 1J22 Alloy Bar
Specifications
Brand Name :
HUONA
Model Number :
Hiperco 50
Certification :
ISO9001,ROHS
Place of Origin :
CHINA
MOQ :
5KG
Price :
Bragain
Payment Terms :
L/C,Western Union,T/T,MoneyGram
Supply Ability :
5000tons /Year
Delivery Time :
7-21 DAYS
Packaging Details :
Wooden Case
Model NO.: :
1J22
Main Material: :
Co,Fe
Brand :
1j22/Afk502/Permendur/Hiperco 50/Supermendur
Density： :
8.2 g/cm3
Coercive Force :
128A/M
Trademark :
HUONA
Transport Package :
Wooden Case
Curie Point :
980c
Description

Product Description

Description :
Co50V2 Iron Cobalt is a saturation magnetic induction intensity of iron, cobalt, and vanadium soft magnetic alloy. In existing soft magnetic alloys, calcium alloy has the highest saturated magnetic induction intensity (2.4 T), and a high Curie temperature (980 ºC), saturation magnetostriction coefficient of maximum (60 ~ 100 * 10 6).

Due to the high saturation magnetic induction intensity, when making an equal power motor, it can greatly reduce the volume, when making an electromagnet, under the same cross-sectional area, it can produce a larger suction force.

Due to their high Curie point, the alloy can be used in other soft magnetic alloy materials that have been completely demagnetized under the high temperature, and maintain good magnetic stability.

Due to the large magnetostrictive coefficient, and is suitable for use as a magnetostrictive transducer, output energy is high, the efficiency is high. The resistivity of low alloy (0.27 μΩ m.), is not suitable for use under high frequency. The price is higher, easily oxidized, and the processing performance is poor; adding suitable nickel or other elements can improve the processing performance.

Application: suitable for making quality is light, small volume of aviation and space flight with electrical components, such as, micro-motor rotor magnet pole head, relays, transducers, etc

Chemical Content(%)

Mn Ni V C Si P S Fe Co
0.30 0.50 0.8-1.80 0.04 0.30 0.020 0.020 Bal 49.0-51.0

Mechanical Properties
Density 8.2 g/cm3
Thermal Expansion Coefficient (20~100ºC) 8.5 x 10-6 /ºC
Curie Point 980ºC
Volume Resistivity (20ºC) 40 μΩ.cm
Saturation Magnetic Stricture Coefficient 60 x 10-6
Coercive Force 128A/m


Magnetic induction strength in different magnetic field
B400 1.6
B800 1.8
B1600 2.0
B2400 2.1
B4000 2.15
B8000 2.35
