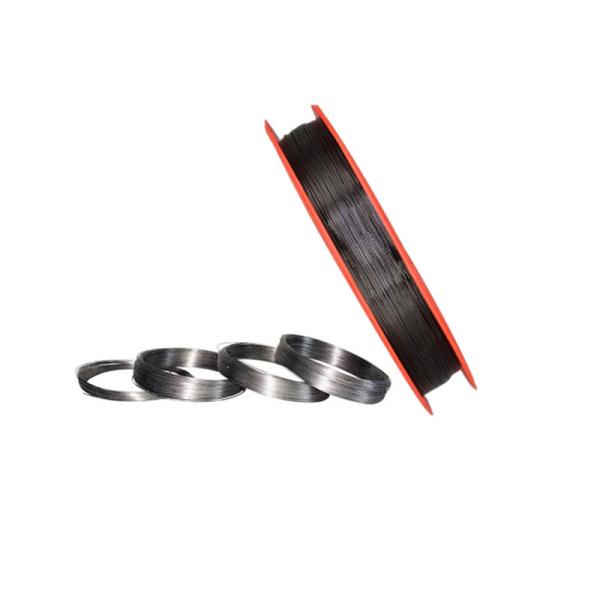

Precious Metal Thermocouple Wire Type S
Precious Metal Thermocouple Wire Type S
Specifications
Brand Name :
Huona
Model Number :
Type S
Certification :
ISO9001
Place of Origin :
Shanghai
MOQ :
10g
Price :
Negotiable
Payment Terms :
T/T,L/C,Western Union,
Supply Ability :
30000 meters per month
Delivery Time :
5-21 days
Packaging Details :
Carton/Wooden case
Product Name :
Thermocouple Wire Type S
Positive :
PtRh10
Negative :
Pt
Anode wire density :
20 g/cm³
Cathode wire density :
21.45 g/cm³
Anode Wire Resistivity(20℃)/(μΩ·cm) :
18.9
Cathode Wire Resistivity(20℃)/(μΩ·cm) :
10.4
Tensile Strength(MPa) :
SP:314; SN:137
Description
Precious Metal Thermocouple Wire Type S
Product Attributes
Attribute Value
Product Name Thermocouple Wire Type S
Positive PtRh10
Negative Pt
Anode wire density 20 g/cm³
Cathode wire density 21.45 g/cm³
Anode Wire Resistivity(20℃)/(μΩ·cm) 18.9
Cathode Wire Resistivity(20℃)/(μΩ·cm) 10.4
Tensile Strength(MPa) SP:314; SN:137
Product Overview

Precious metal thermocouple wire Type S, also known as Platinum-Rhodium 10-Platinum thermocouple wire, is a high-precision temperature sensing element composed of two precious metal conductors. The positive leg (RP) is a platinum-rhodium alloy containing 10% rhodium and 90% platinum, while the negative leg (RN) is pure platinum. It offers exceptional accuracy and stability in high-temperature environments, making it the preferred choice for precise temperature measurement in metallurgy, ceramics, and high-temperature industrial furnaces.

Standard Designations
  • Thermocouple Type: S-type (Platinum-Rhodium 10-Platinum)
  • IEC Standard: IEC 60584-1
  • ASTM Standard: ASTM E230
Key Features
  • Wide Temperature Range: Long-term use at up to 1300°C; short-term use up to 1600°C
  • High Accuracy: Class 1 accuracy with a tolerance of ±1.5°C or ±0.25% of reading
  • Excellent Stability: Less than 0.1% drift in thermoelectric potential after 1000 hours at 1000°C
  • Good Oxidation Resistance: Stable performance in oxidizing and inert atmospheres
  • Low Thermoelectric Potential: Generates 6.458 mV at 1000°C (reference junction at 0°C)
Technical Specifications
Attribute Value
Wire Diameter 0.5mm (allowable deviation: -0.015mm)
Thermoelectric Power (1000°C) 6.458 mV (vs 0°C reference)
Long-Term Operating Temperature 1400°C
Short-Term Operating Temperature 1500°C (≤50 hours)
Tensile Strength (20°C) ≥120 MPa
Elongation ≥30%
Electrical Resistivity (20°C) Positive leg: 0.21 Ω*mm²/m; Negative leg: 0.098 Ω*mm²/m
Chemical Composition (Typical, %)
Conductor Main Elements Trace Elements (max, %)
Positive Leg (Platinum-Rhodium 10) Pt:90, Rh:10 Ir:0.02, Ru:0.01, Fe:0.005, Cu:0.002
Negative Leg (Pure Platinum) Pt:≥99.99 Rh:0.005, Ir:0.002, Fe:0.001, Cu:0.001
Product Specifications
Item Specification
Length per Spool 10m, 20m, 50m
Surface Finish Bright, annealed
Packaging Vacuum-sealed in inert gas-filled containers to prevent contamination
Calibration Traceable to national standards with calibration certificates
Custom Options Custom lengths, special cleaning for high-purity applications
Typical Applications
  • High-temperature sintering furnaces in powder metallurgy
  • Glass manufacturing and forming processes
  • Ceramic kilns and heat treatment equipment
  • Vacuum furnaces and crystal growth systems
  • Metallurgical smelting and refining processes

We also provide S-type thermocouple assemblies, connectors, and extension wires. Free samples and detailed technical datasheets are available upon request. For critical applications, we offer additional certification of material purity and thermoelectric performance.
