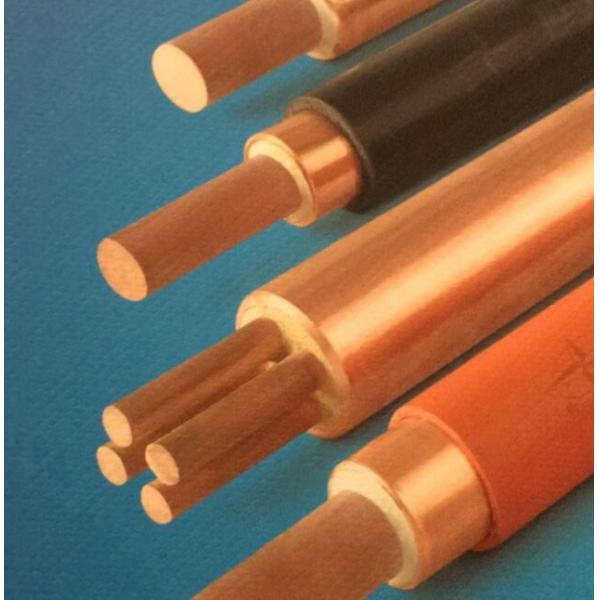

Platinum Rhodium Type B/R/S Mineral Insulated MI Thermocouple Cable For Heating Elements
Platinum Rhodium Type B/R/S Mineral Insulated MI Thermocouple Cable For Heating Elements
Specifications
Brand Name :
HUONA
Model Number :
Type B/R/S
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
5
Price :
Bargain
Payment Terms :
L/C,T/T,Western Union,MoneyGram
Supply Ability :
30000 meters per month
Delivery Time :
5-21days
Packaging Details :
Cartons/Woodbox
Name :
Mineral Insulated Thermocouple Cable Type K J RTD N S Stainless Steel Sheath
Inner Sheath :
MgO/Al2O3
MI Type :
Heating Cable/Thermocouple
Sheath Material :
Stainless Steel/High Temperature Alloy/Inconel
Shipment Way :
Air/Sea/Express Shipment
OD of cable :
0.3mm to 12.0mm
EMF tolerance :
Class First(I) or Special
Core type :
1-core, 2-core, 3-core, 4-core....
Description

Mineral Insulated Thermocouple Cable Type K J RTD N S Stainless Steel Sheath


It is known as inorganic substance insulation thermocouple cable internationally. It is the mould-pressed solid integrity of combined stainless steel protective pile

(1) magnesium oxide insulation powder.

(2) and thermocouple thread materials .

(3) Its merits include press endurance, vibration resistance, bending capability, mini size, quick respond, etc. It acts as the key material of sheath

Electric property:

Resistance value allowance:±10%

Dielectric property:heating cable pressure resist:1200V AC/1min

Insulation resistance:end product test:100MΩ/500VDC

Sheath continuity:all the heating cable submerged in the water 12 hours then test the insulation resistance,

the value should be 50M/500VDC at least.


To produce assemblies, the cable is cut to the desired length, pigtails brazed on and terminated with union type glands with male NPT threads.

Platinum Rhodium Type B/R/S Mineral Insulated MI Thermocouple Cable For Heating Elements

Huona Alloy can provide the following type and size of mineral insulated cable.

Thermocouple grade K, E, J, T, N, R,S,B, Cu, Pt100
OD of cable 0.3mm to 12.0mm
Sheath material SS304, SS321, SS316, SS310, Inconel 600, GH3039, copper
Core type 1-core, 2-core, 3-core, 4-core....
EMF tolerance Class First(I) or Special
