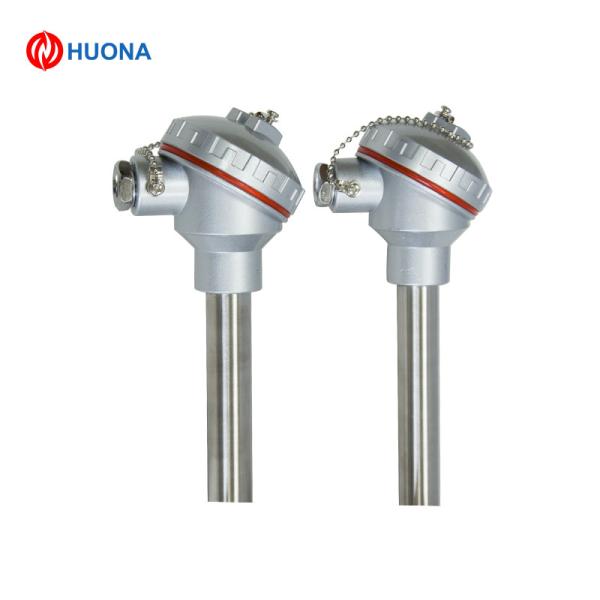

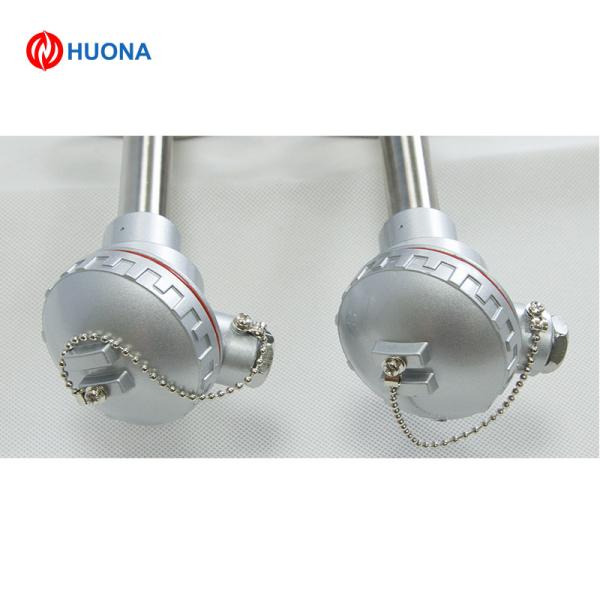

Ceramic Tube Type K Thermocouple Extension Wire Cable M20×1.5
Ceramic Tube Type K Thermocouple Extension Wire Cable M20×1.5
Ceramic Tube Type K Thermocouple Extension Wire Cable M20×1.5
Ceramic Tube Type K Thermocouple Extension Wire Cable M20×1.5
Specifications
Brand Name :
HUONA
Model Number :
Type K
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
5
Price :
Bargain
Payment Terms :
L/C,T/T,Western Union,MoneyGram
Supply Ability :
10000 pcs per month
Delivery Time :
5-21days
Packaging Details :
Cartons/Woodbox
Grade :
Type B,type S,type K
Name :
Thermocouple Ceramic Tube
Temperature range :
0-1100 ℃
Protection tube material :
Ceramic
Thermal response time τ 0.5(s) :
<240
Tolerance :
ClassⅠ, Class Ⅱ
Electrical interface :
M20×1.5,M22×1.5,1/2NPT (M30×1.5 and M36×2)
Screw size :
M12×1.5,M16×1.5,M27×2,G1/2,G3/4,1/2NPT
Description

Thermocouple with ceramic tube

Calibration grade

Tolerance: ClassⅠ, Class Ⅱ

Electrical interface:

M20×1.5,M22×1.5,1/2NPT (M30×1.5 and M36×2)

Connector screw

Screw size:M12×1.5,M16×1.5,M27×2,G1/2,G3/4,1/2NPT

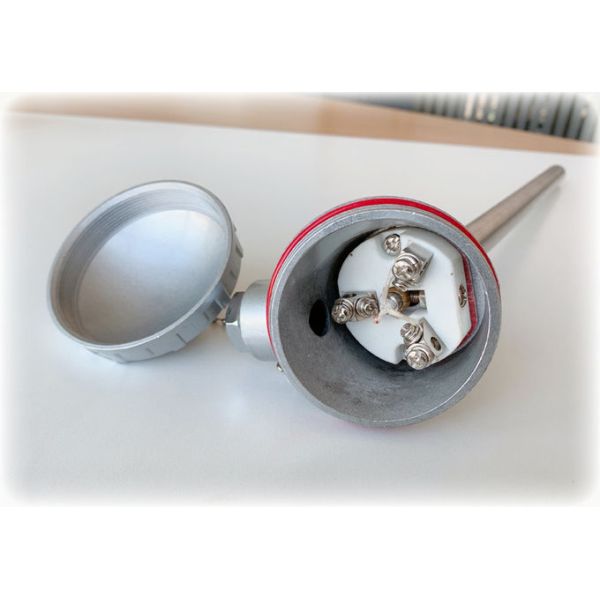

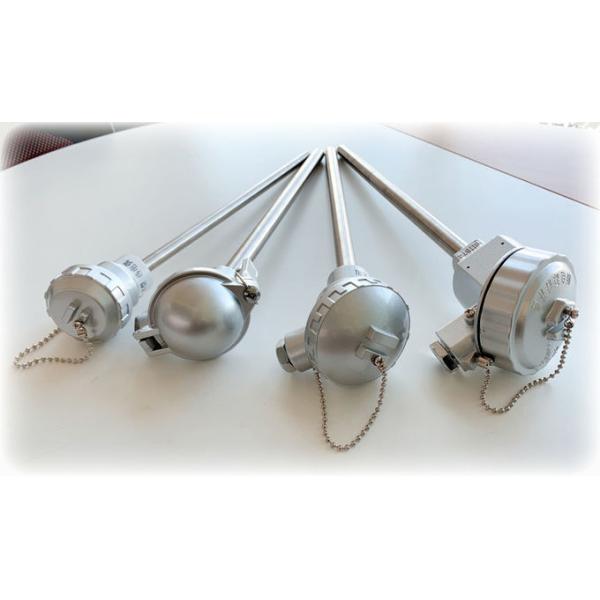

Ceramic Tube Type K Thermocouple Extension Wire Cable M20×1.5Ceramic Tube Type K Thermocouple Extension Wire Cable M20×1.5

(Ceramic protection tube) Thermcouple

Thermocouple grade Model Grade Temperature range ℃ Spec Thermal response time
τ 0.5(s)
OD mm Protection tube material
Simplex type B WRR-130 B 0~1800 φ16 Alundum tube <150
Simplex type B WRR-131 B 0~1800 φ25 Alundum tube <360
Duplex type B WRR2-130 B 0~1800 φ16 Alundum tube <150
Duplex type B WRR2-131 B 0~1800 φ25 Alundum tube <360
Simplex type S WRP-130 S 0~1600 φ16 Ceramic <150
Simplex type S WRP-131 S 0~1600 φ25 Ceramic <360
Duplex type S WRP2-130 S 0~1600 φ16 Ceramic <150
Duplex type S WRP2-131 S 0~1600 φ25 Ceramic <360
Simplex type K WRN-133 K 0~1100 φ20 Ceramic <240
Duplex type K WRN2-133 K 0~1100 φ20 Ceramic <240
Simplex type K WRN-132 K 0~1100 φ16 Ceramic <240

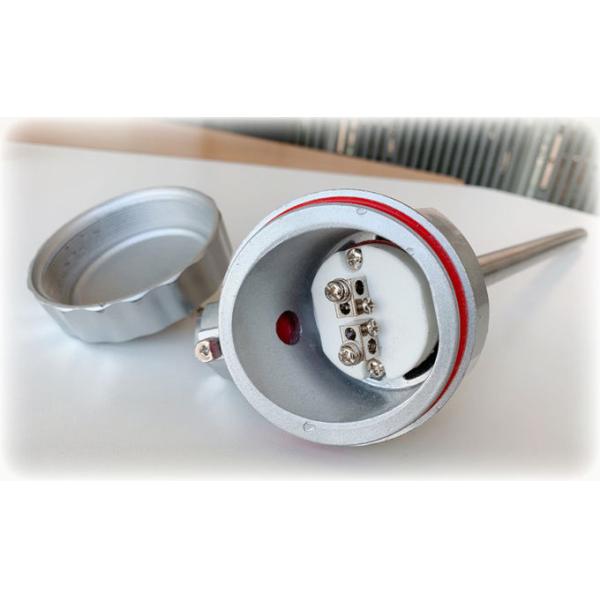

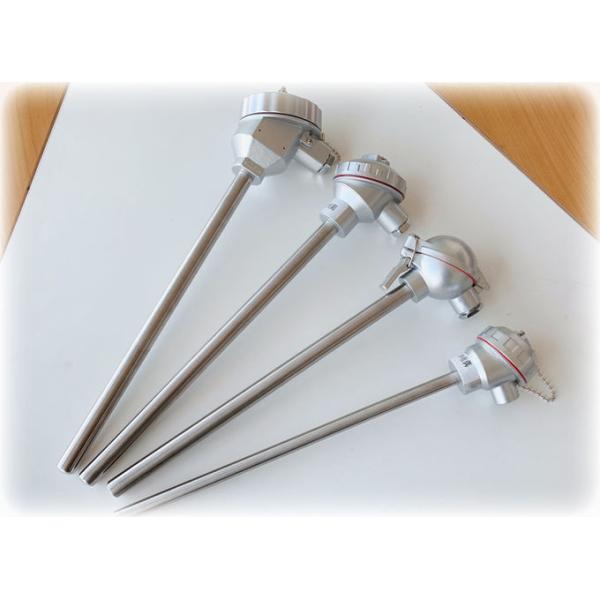

Ceramic Tube Type K Thermocouple Extension Wire Cable M20×1.5Ceramic Tube Type K Thermocouple Extension Wire Cable M20×1.5


Remarks:
1) Non-insertion tube material: SS304 or SS316 or SS310

2) Diaφ25mmtube is double-layer ceramic

3) We also can make the special tube as per customer’s design
