Specifications
Brand Name :
HUONA
Model Number :
Type R
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1
Price :
Bargain
Payment Terms :
L/C,T/T,Western Union,MoneyGram
Supply Ability :
300 tons per month
Delivery Time :
5-21 days
Packaging Details :
Spool package with Carton box, Coil package with polybag
Product Name :
Thermocouple Bare Wire
Color :
Bright
Temperature Range :
-58 To 2700F (-50 To 1480℃)
EMF Tolerance :
+/- 1.5C Or +/- .25%
Positive :
Platinum Rhodium
Negative :
Platinum
Description

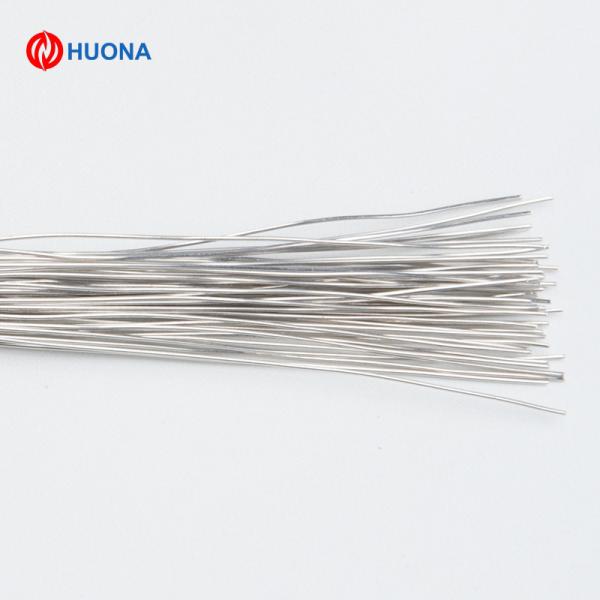

Platinum Type R Thermocouple Bare Wire FB 0.5mm For High Temperature Applications


  • Thermocouple Wire

Type R Thermocouple (Platinum Rhodium -13% / Platinum):

The Type R is used in very high temperature applications. It has a higher percentage of Rhodium than the Type S, which makes it more expensive. The Type R is very similar to the Type S in terms of performance. It is sometimes used in lower temperature applications because of its high accuracy and stability. Type R has a slightly higher output and improved stability over the type S.

Type R, S, and B thermocouples are "Noble Metal" thermocouples, which are used in high temperature applications.

Type S thermocouples are characterized by a high degree of chemical inertness and stability at high temperatures. Often used as a standard for calibration of base metal thermocouples.

Platinum rhodium thermocouple(S/B/R TYPE)

Platinum Rhodium Assembling Type Thermocouple is widely used in production places with high temperature. It is mainly used to measure temperature in glass and ceramic industry and industrial salting.

Insulation material: PVC, PTFE, FB or as per the customer's requirement.

Type R Temperature Range:

  • Thermocouple grade wire, -58 to 2700F (-50 to 1480C)
  • Extension wire, 32 to 392F (0 to 200C)


Accuracy (whichever is greater):

  • Standard: +/- 1.5C or +/- .25%
  • Special Limits of Error: +/- 0.6C or 0.1%

Consideration for bare wire type R thermocouple applications:

  • Heating - Gas burners for ovens
  • Cooling - Freezers
  • Engine protection - Temperatures and surface temperatures
  • High temperature control - Iron casting
  • Thermocouple Wire
Code Wires component of the thermocouple
+Positive leg -Negative leg
N Ni-cr-si (NP) Ni-si-magnesium (NN)
K Ni-Cr (KP) Ni-Al(Si) (KN)
E Ni-Cr (EP) Cu-Ni<constantan> (EN)
J Iron (JP) Cu-Ni<constantan> (JN)
T Copper (TP) Cu-Ni<constantan> (TN)
B Platinum Rhodium-30% Platinum Rhodium-6%
R Platinum Rhodium-13% Platinum
S Platinum Rhodium-10% Platinum

  • ​Standards
ASTM ANSI IEC DIN BS NF JIS GOST
(American Society for Testing and Materials) E 230 (American National Standard Institute) MC 96.1 (European Standard by the International Electrotechnical Commission 584)-1/2/3 (Deutsche Industrie Normen) EN 60584 -1/2 (British Standards) 4937.1041, EN 60584 - 1/2 (Norme Française) EN 60584 -1/2 - NFC 42323 - NFC 42324 (Japanese Industrial Standards) C 1602 - C 1610 (Unification of the Russian Specifications) 3044

  • Size range

Wire: 0.1 to 8.0 mm.

  • Working temperature:

Diameter/mm Type Long time Working Short period Working
temperature/°C temperature/°C
0.5 S 1300 1600
0.5 R 1300 1600
0.5 B 1600 1700

  • Chemical Composition
Conductor Name Polarity Code Pt% Rh%
Pt90Rh Positive SP 90 10
Pt Negative SN,RN 100 --
Pt87Rh Positive RP 87 13
Pt70Rh Positive BP 70 30
Pt94Rh Negative BN 94 6
