Industrial High Temperature Alloy Nimonic 75 UNS N06075/2.4951 Nickel Chromium Rod
Industrial High Temperature Alloy Nimonic 75 UNS N06075/2.4951 Nickel Chromium Rod
Industrial High Temperature Alloy Nimonic 75 UNS N06075/2.4951 Nickel Chromium Rod
Industrial High Temperature Alloy Nimonic 75 UNS N06075/2.4951 Nickel Chromium Rod
Industrial High Temperature Alloy Nimonic 75 UNS N06075/2.4951 Nickel Chromium Rod
Industrial High Temperature Alloy Nimonic 75 UNS N06075/2.4951 Nickel Chromium Rod
Specifications
Brand Name :
HUONA
Model Number :
Nimonic 75
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
10
Price :
Bargain
Payment Terms :
T/T,Western Union,,L/C
Supply Ability :
300 Tons Per Month
Delivery Time :
5-21 Days
Packaging Details :
Spool Package With Carton Box, Coil Package With Polybag
Product Name: :
Nimonic 75
Density: :
8.37g/cm³
Coefficient Of Expansion: :
11.0 μm/m °C (20 – 100°C)
Melting Point: :
1380°C
Annealed: :
700 – 800N/mm²
Material: :
Nickel Chromium
Description

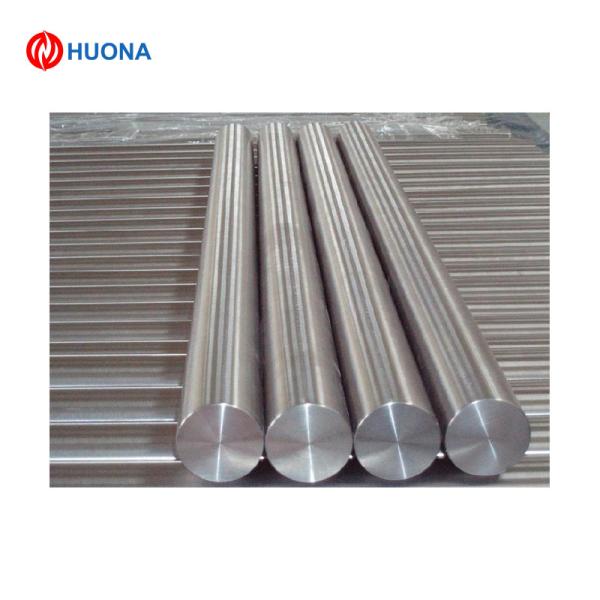

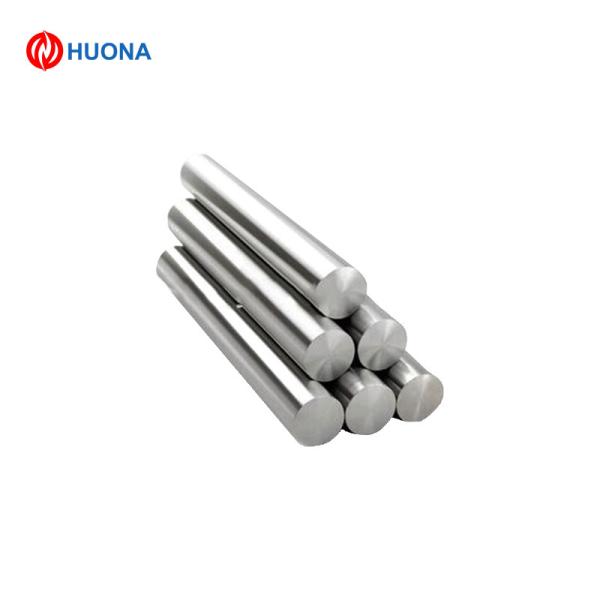

Industrial High Temperature Alloy Nimonic 75
UNS N06075/2.4951 Nickel Chromium Rod
Product Overview
Nimonic 75 (UNS N06075/2.4951) is a creep-resistant nickel chromium 80/20 alloy with controlled additions of titanium and carbon. This high-temperature alloy offers excellent resistance to oxidizing atmospheres under 800°C, making it ideal for gas turbine engineering, industrial thermal processing, furnace components, and heat-treatment equipment.
Chemical Composition
Element Content (%)
Nickel (Ni) Balance
Chromium (Cr) 19-22
Iron (Fe) Max 1.0
Phosphorus (P) Max 0.015
Copper (Cu) Max 0.2
Aluminum (Al) Max 0.15
Titanium (Ti) 0.15-0.35
Carbon (C) Max 0.12
Manganese (Mn) Max 0.70
Silicon (Si) Max 0.80
Sulfur (S) Max 0.02
Material Specifications
Grade UNS Werkstoff Nr.
Nimonic 75 N06075 2.4951
Physical Properties
Property Value
Density 8.4 g/cm³
Melting Point 1374°C - 1420°C
Thermal Conduction
Temperature (°C) Thermal Conductivity (W/(m·°C))
10015.1
20016.3
30018.0
40019.3
50020.9
60022.2
70023.4
80025.1
90026.4
Coefficient of Linear Expansion
Temperature Range (°C) Coefficient (10⁻⁶/°C)
20-10012.8
20-20013.5
20-30018.0
20-40019.3
20-50020.9
20-60022.2
20-70023.4
20-80025.1
20-90026.4
Available Size Range
  • Nimonic 75 Wire: ￠0.1mm - ￠9mm
  • Nimonic 75 Bar: ￠11mm - ￠200mm
  • Nimonic 75 Strip: 75-110mm × 0.15-22mm
