16×300mm Stainless Steel Sheathed Explosion Proof Type K Thermocouple 1000mm Probe
16×300mm Stainless Steel Sheathed Explosion Proof Type K Thermocouple 1000mm Probe
Specifications
Brand Name :
Huona
Model Number :
Type K
Certification :
ISO 9001
Place of Origin :
Shanghai
MOQ :
5 PCS
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
10000 PCS per month
Delivery Time :
5-21 days
Packaging Details :
Carton/Wooden Case
Thermocouple Type :
Type K
Explosion-Proof Grade :
Ex d IIB T6
Sheath Material :
304 Stainless Steel (316/316L optional)
Sheath Dimensions :
16mm (diameter) × 300mm (insertion length); total length 1000mm
Conductor Diameter :
2×1.0mm (MgO insulated)
Process Connection :
M20×1.5 / 1/2" NPT (customizable)
Operating Temperature Range :
0–1200℃ (continuous); 0–1300℃ (short-term ≤30min)
Accuracy Class :
Class 1
Description

Product Description


Explosion-Proof Type K Thermocouple (Stainless Steel Sheath, 16×300mm, 1000mm Probe Length)


Product Overview

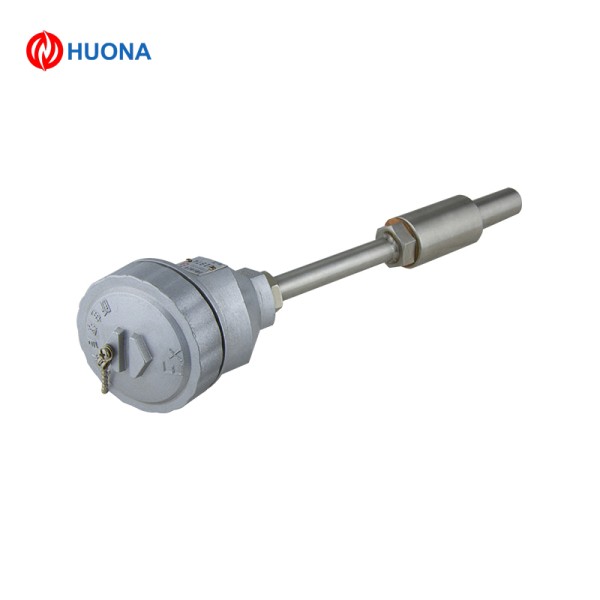

Explosion-proof Type K thermocouple (as shown) from Huona New Material is a heavy-duty industrial temperature sensor designed for hazardous environments. It features a cast aluminum explosion-proof head, 304/316 stainless steel protective sheath, and Type K (Chromel/Alumel) thermocouple elements. Engineered to meet explosion-proof standards (Ex d IIB T6), it delivers stable measurement up to 1200℃ continuous / 1300℃ short-term, making it ideal for petrochemical, metallurgical, and power plant applications requiring safety and high-temperature reliability.

Standard Designations & Core Material Foundation


  • Thermocouple Type: Type K (Chromel/Alumel; IEC 60584-2 Class 1)
  • Explosion-Proof Grade: Ex d IIB T6 (suitable for Zone 1/2 hazardous areas)
  • Sheath Material: 304 Stainless Steel (optional 316/316L for corrosion resistance)
  • Sheath Specification: 16mm (diameter) × 300mm (insertion length); total probe length (head to tip) 1000mm
  • Conductor Specification: 2×1.0mm (MgO insulated, high-temperature)
  • Head Material: Cast aluminum (IP65/IP67 protection)
  • Process Connection: M20×1.5 or 1/2" NPT (threaded mounting)
  • Compliant Standards: IEC 60584-2, GB/T 4989-2013, ATEX, IECEx, RoHS 2.0
  • Manufacturer: Huona New Material, certified to ISO 9001 and IATF 16949

Key Core Advantages (Centered on Explosion-Proof & Heavy-Duty Design)


1. Explosion-Proof Safety & Reliability


  • Ex d IIB T6 Certification: Cast aluminum explosion-proof head prevents ignition of flammable gases/vapors, ensuring safe operation in oil refineries, chemical plants, and gas pipelines.
  • IP67 Protection: Sealed head and MgO insulation resist dust, water, and oil mist, suitable for outdoor and harsh industrial environments.

2. Ultra-High-Temperature Performance


  • 1200℃ Continuous Operation: MgO-insulated stainless steel sheath withstands extreme heat, with no insulation breakdown or element drift after 1000 hours at 1100℃—far exceeding standard thermocouple limits.
  • Fast Thermal Response: 16mm diameter sheath provides a thermal response time (τ₅₀) ≤3s in air at 1000℃, ideal for dynamic high-temperature monitoring.

3. Rugged Mechanical & Mounting Design


  • Heavy-Duty Sheath: 16mm diameter stainless steel sheath resists bending, vibration, and mechanical impact, suitable for high-flow pipelines and furnace applications.
  • Threaded Mounting: M20×1.5 or 1/2" NPT connection enables secure installation in pressure vessels and process pipelines, with adjustable insertion depth.

Technical Specifications


Attribute Value (Typical)
Thermocouple Type Type K (Chromel/Alumel)
Explosion-Proof Grade Ex d IIB T6
Sheath Material 304 Stainless Steel (316/316L optional)
Sheath Dimensions 16mm (diameter) × 300mm (insertion length); total length 1000mm
Conductor Diameter 2×1.0mm (MgO insulated)
Process Connection M20×1.5 / 1/2" NPT (customizable)
Operating Temperature Range 0–1200℃ (continuous); 0–1300℃ (short-term ≤30min)
Accuracy Class Class 1 (IEC 60584-2)
Thermoelectric Potential Error ±1.5℃ (0–600℃); ±0.25% t (600–1200℃)
Thermal Response Time (τ₅₀) ≤3s (in air at 1000℃)
Insulation Resistance (25℃) ≥1000 MΩ·km
Protection Level IP67 (head & sheath)
Vibration Resistance 10–2000 Hz, 10g (meets industrial vibration standards)

Product Specifications


Item Specification
Supply Form Single probe (pre-assembled with explosion-proof head); bulk packaging (5/10 pcs/carton)
Junction Type Grounded (fast response) or ungrounded (isolated)
Surface Treatment Sheath: pickled/passivated; head: powder-coated (gray)
Packaging Wooden crate + foam insert (prevents damage during shipping)
Customization Sheath diameter (8–25mm); insertion length (100–1000mm); total length (500–2000mm); sheath material (304/316/316L); connection type (threaded/flanged); thermocouple type (K/J/T/E/R/S/B)

Typical Application Scenarios


  • Petrochemical Industry: Temperature monitoring in oil refineries, gas pipelines, and chemical reactors (Ex d IIB T6 for hazardous areas).
  • Metallurgical & Power Plants: Furnace temperature measurement, boiler tube monitoring, and flue gas temperature sensing (1200℃ high-temperature capability).
  • Oil & Gas Exploration: Downhole temperature sensors and pipeline monitoring (vibration and corrosion resistance).
  • Chemical Processing: High-temperature reactor and distillation column temperature control (316L sheath for corrosive media).
