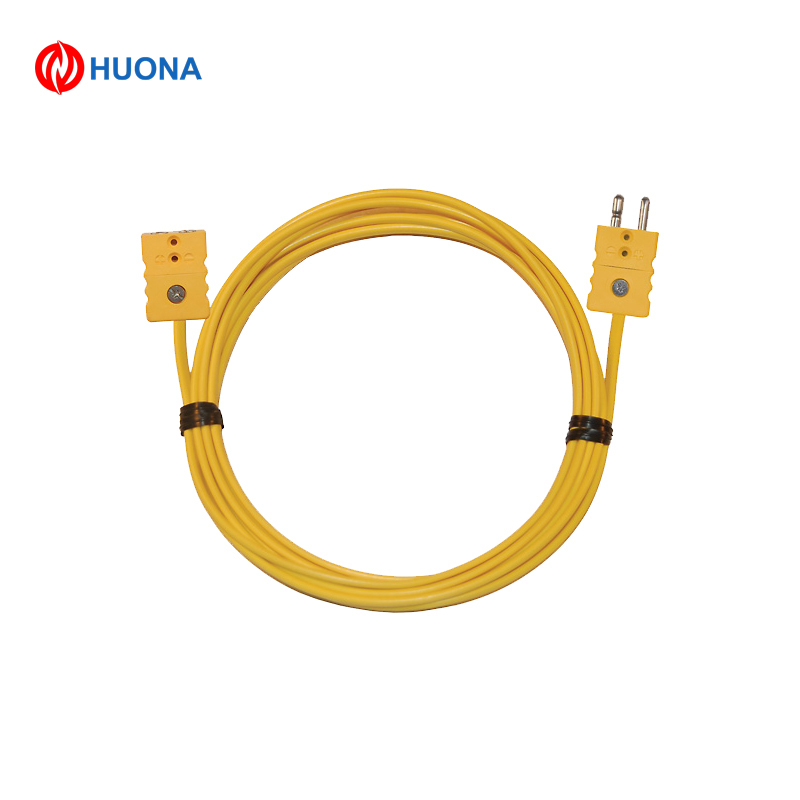

Type T Thermocouple Cable 2×0.5mm PVC Insulated Yellow Mini Connector Set
Type T Thermocouple Cable 2×0.5mm PVC Insulated Yellow Mini Connector Set
Specifications
Brand Name :
Huona
Model Number :
Type T
Certification :
ISO9001
Place of Origin :
Shanghai
MOQ :
200m
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
500 tons per month
Delivery Time :
5-21 days
Packaging Details :
Carton/Wooden Case
Thermocouple Type :
Type T
Conductor Diameter :
2×0.5mm (±0.02mm)
Insulation Material :
PVC (blue, 105℃ rating)
Connector :
Type T mini plug (male) + socket (female) set
Operating Temperature Range :
-40℃ to 105℃ (continuous); -40℃ to 120℃ (short-term ≤30min)
Accuracy Class :
Class 2 (IEC 60584-2)
Thermoelectric Potential Error :
±1.0℃ (0–200℃); ±0.75% t (200–350℃)
Insulation Resistance (25℃) :
≥100 MΩ·km
Description

Product Description


Type T Thermocouple Extension Cable (PVC Insulated, 2×0.5mm, Blue, Mini Plug & Socket)


Product Overview


Type T thermocouple extension cable (as shown) from Huona New Material is a ready-to-use temperature signal transmission assembly featuring Type T (Copper/Constantan) conductors, blue PVC insulation (IEC color-coded for Type T), and a standard blue mini thermocouple plug & socket set. Designed for low-to-medium temperature environments, it delivers stable thermoelectric performance up to 105℃ continuous / 120℃ short-term. Ideal for refrigeration, food processing, laboratory testing, and HVAC systems, it offers plug-and-play convenience, excellent flexibility, and reliable signal transmission.

Standard Designations & Core Material Foundation


  • Thermocouple Type: Type T (Copper/Constantan; IEC 60584-2 Class 2)
  • Key Specification:
    • Conductor: 2×0.5mm diameter (tolerance: ±0.02mm)
    • Insulation: PVC (blue, IEC color for Type T)
    • Connector: Type T mini plug (male) + socket (female) set

  • Chemical Composition: Positive (TP): Pure Copper (Cu ≥99.9%); Negative (TN): Constantan (Cu55/Ni45)
  • Insulation Material: Polyvinyl Chloride (PVC, 105℃ rating)
  • Compliant Standards: IEC 60584-3, GB/T 4989-2013, ASTM E230, RoHS 2.0
  • Manufacturer: Huona New Material, certified to ISO 9001 and IATF 16949

Key Core Advantages (Centered on Type T & Blue PVC Design)


1. Low-Temperature Precision & Stability


  • High EMF Output at Low Temp: Type T provides exceptionally stable thermoelectric potential at -200℃ to 350℃, with error ≤±1.0℃ (0–200℃) / ±0.75% t (200–350℃), ideal for precision low-temperature measurement.
  • Oxidation Resistance: Copper/Constantan conductors resist oxidation in moist and low-temperature environments (e.g., refrigeration, cold storage), ensuring long-term reliability.

2. Flexible & Easy Installation


  • High Flexibility: PVC-insulated cable is highly flexible (minimum bending radius ≥5× cable diameter), suitable for tight installation spaces and complex routing.
  • Lightweight Design: Low-profile PVC insulation reduces overall cable weight, ideal for portable testing equipment and long-distance signal extension.

3. Plug-and-Play Convenience & Compatibility


  • Standard Mini Connector: IEC color-coded blue plug/socket ensures universal compatibility with Type T thermocouple probes and instruments, eliminating wiring errors.
  • Pre-Assembled & Ready-to-Use: Factory-terminated connectors allow immediate deployment in field testing and industrial monitoring.

Technical Specifications


Attribute Value (Typical)
Thermocouple Type Type T (Copper/Constantan)
Conductor Diameter 2×0.5mm (±0.02mm)
Insulation Material PVC (blue, 105℃ rating)
Connector Type T mini plug (male) + socket (female) set
Operating Temperature Range -40℃ to 105℃ (continuous); -40℃ to 120℃ (short-term ≤30min)
Accuracy Class Class 2 (IEC 60584-2)
Thermoelectric Potential Error ±1.0℃ (0–200℃); ±0.75% t (200–350℃)
Insulation Resistance (25℃) ≥100 MΩ·km
Bending Radius ≥5× cable diameter (static)
Surface Finish Insulation: smooth blue; connectors: blue plastic

Product Specifications


Item Specification
Supply Form Single cable (pre-assembled with plug & socket); bulk packaging (10/50/100 pcs/carton)
Conductor Type Solid (standard) or stranded (optional)
Processability Supports flexible routing, bending, and mounting with cable clamps
Packaging Anti-static bag + foam insert + carton (prevents damage during shipping)
MOQ 200 meters (customizable length: 0.5–10m)
Customization Conductor diameter (0.3–1.0mm); insulation color (customizable); solid/stranded conductors; connector type (standard/micro)

Typical Application Scenarios


  • Refrigeration & Cold Storage: Temperature monitoring in freezers, cold rooms, and refrigerated transport (low-temperature stability).
  • Food Processing: Low-to-medium temperature measurement in food storage, preparation, and packaging equipment.
  • Laboratory & R&D: General-purpose temperature sensing in research equipment, environmental chambers, and material testing.
  • HVAC & Building Automation: Temperature signal extension between sensors and control systems in commercial buildings.
