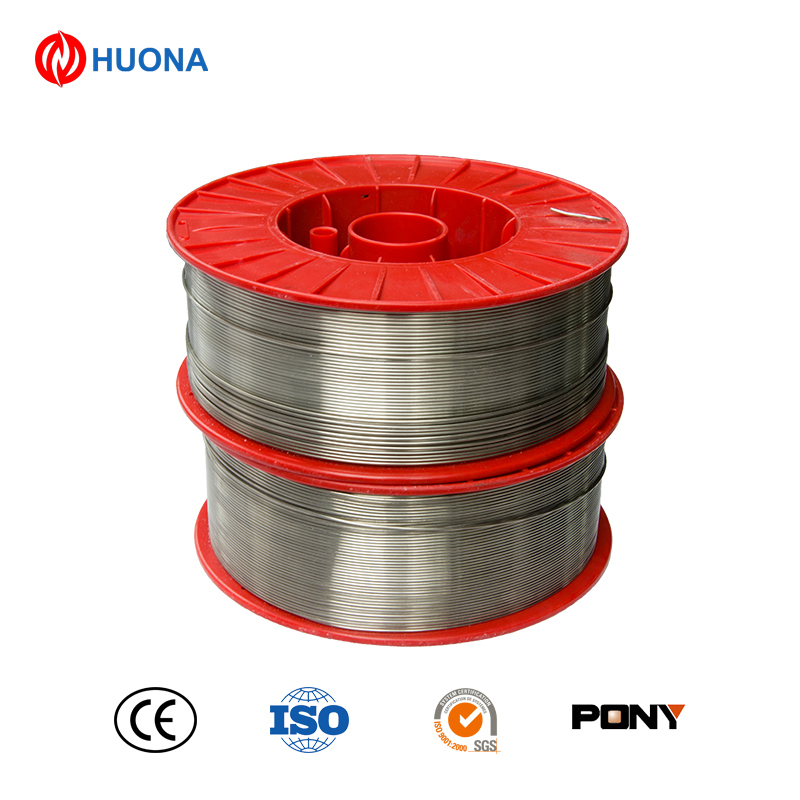

316 316S Stainless Steel Welding Rod Wire ER316 SUS316 for Chemical Equipment Marine Piping Food Processing High Corrosion Resistance
316 316S Stainless Steel Welding Rod Wire ER316 SUS316 for Chemical Equipment Marine Piping Food Processing High Corrosion Resistance
Specifications
Brand Name :
HUONA
Model Number :
wire
Certification :
ISO9001
Place of Origin :
China
MOQ :
5kg
Price :
negotation
Payment Terms :
T/T,Western Union
Supply Ability :
5000tons/month
Delivery Time :
A WEEK
Packaging Details :
CARGO
Alloy Grade :
316 / 316S / ER316 / ER316L / SUS316 / SUS316L / WNR 1.4401 / 1.4404 / SS316
Material Type :
Austenitic Stainless Steel
Product Form :
Welding Rod / Welding Wire
Diameter :
0.8 – 5.0 mm (customizable)
Length :
250 – 1000 mm (customizable)
Surface Finish :
Bright, Polished
Packaging Type :
Coil, Bundle, Straight Rods
Melting Point :
Approx. 1375–1400 °C
Description
316 316S Stainless Steel Welding Rod Wire ER316 SUS316
High-quality austenitic stainless steel filler material designed for welding 316 stainless steel and similar alloys. Provides excellent corrosion resistance, high mechanical strength, and stable weld performance, especially in marine and chemical environments. 316S is the low-carbon variant, reducing the risk of sensitization during welding.
316 316S Stainless Steel Welding Rod Wire ER316 SUS316 for Chemical Equipment Marine Piping Food Processing High Corrosion Resistance
Chemical Composition (Typical Values)
Element Content (%)
Carbon (C) ≤ 0.08 (316) / ≤ 0.03 (316S)
Chromium (Cr) 16-18
Nickel (Ni) 10-14
Molybdenum (Mo) 2-3
Manganese (Mn) ≤ 2
Silicon (Si) ≤ 1
Phosphorus (P) ≤ 0.045
Sulfur (S) ≤ 0.03
Iron (Fe) Balance
Technical Specifications
Parameter Specification
Material Type Austenitic Stainless Steel (316 / 316S / ER316 / ER316L / SUS316)
Product Form Welding Rod / Welding Wire
Diameter 0.8 - 5.0 mm (customizable)
Length 250 - 1000 mm (customizable)
Melting Point Approx. 1375-1400 °C
Conductivity Low to Moderate
Corrosion Resistance Excellent, especially to chlorides and marine environments
Packaging Coils or straight rods
Product Attributes
Attribute Options / Description
Alloy Grade 316 / 316S / ER316 / ER316L / SUS316 / SUS316L / WNR 1.4401 / 1.4404 / SS316
Diameter Tolerance ±0.01 mm
Surface Finish Bright, Polished
Packaging Type Coil, Bundle, Straight Rods
Strength / Mechanical Property High
Welding Method TIG (GTAW), MIG (GMAW), Manual Welding
Heat Treatment As-drawn, Annealed
Certification ISO 9001, RoHS, REACH (optional)
Special Coating Optional anti-oxidation coating
Application Environment Chemical, Marine, Food, Industrial
Customizable Length & Diameter Any within standard ranges, special sizes on request
Applications
  • Chemical equipment and piping
  • Marine and seawater equipment
  • Food processing machinery
  • Pressure vessels and tanks
  • General stainless steel fabrication
Key Features
  • Excellent corrosion resistance in marine, chemical, and high-chloride environments
  • High mechanical strength and ductility
  • Smooth and clean weld bead
  • Low-carbon variant (316S) reduces risk of sensitization and intergranular corrosion
  • Compatible with manual and automated welding processes
  • Easy handling and processing
  • Stable arc and low spatter during welding
  • Suitable for most 300-series stainless steels
  • Long service life in harsh environments
