ErNiCrmo-3 Inconel 625 Welding MIG or TIG Wire
ErNiCrmo-3 Inconel 625 Welding MIG or TIG Wire
Specifications
Brand Name :
Huona
Model Number :
Er Nicrmo-3
Certification :
ISO9001
Place of Origin :
China
MOQ :
5 KG
Price :
DISCUSS
Payment Terms :
L/C,D/A,T/T,Western Union,
Supply Ability :
2000 Tons/Year
Delivery Time :
7-21 Days
Packaging Details :
Spool+Case
Model NO. :
Ernicrmo-3
Diameter :
1.6mm
Specification :
0.9-4.0
Tensile Strength :
725 MPA
Elegation :
＞30
Production Capacity :
2000 Tons/Year
Trademark :
Trademark
Description

Product Description

Ernicrmo-3 Nickel Chromium Alloy Welding MIG Wire

Product Description

ERNiCrMo-3 provides excellent resistance to oxidizing and reducing environments.
The high molybdenum content provides good resistance to stress, pitting, and crevice corrosion. It is used for welding of nickel-chromium-molybdenum alloys. And for cladding and welding dissimilar base metals such as Ni-Cr-Mo alloys to stainless and carbon steels.

Common Names: Oxford Alloy 625, Techalloy 625
Standard: AWS 5.14 Class ERNiCrMo-3 / ASME SFA 5.14 Class ERNiCrMo-3
UNS N06625 Werkstoff Nr. 2.4831 ISO SNi6625


CHEMICAL COMPOSITION(%)
C Si Mn S P Ni Nb+Ta
≤0.1 ≤0.5 ≤0.5 ≤0.015 ≤0.02 ≥58.0 3.5-4.15
Al Ti Fe Cu Cr Mo others
≤0.4 ≤0.4 ≤5.0 ≤0.5 20-23 8.0-10 <0.5

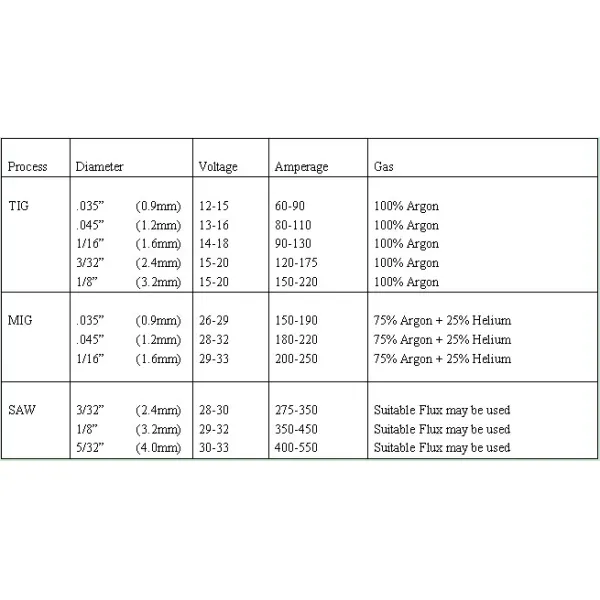

WELDING PARAMETERS

ErNiCrmo-3 Inconel 625 Welding MIG or TIG Wire

MECHANICAL PROPERTIES

Tensile Strength
114,500 PSI
790 MPA

Yield Strength
85,000 PSI
590 MPA

Elongation
27%

APPLICATIONS
·ERNiCrMo-3 nickel-based welding wire is used for joining and overlaying with INCOFLUX NT100 submerged Arc Flux.
· This alloy can also be used for dissimilar welding using various nickel-chromium-molybdenum alloys and stainless steel, low alloy, and even carbon steels

· ERNiCrMo-3 is formulated with low iron (less than 1.0%), and high chromium (over 21.5%) to be an excellent choice for overlaying tubes and tube panels where low dilution of iron and high deposits of chromium are required.
