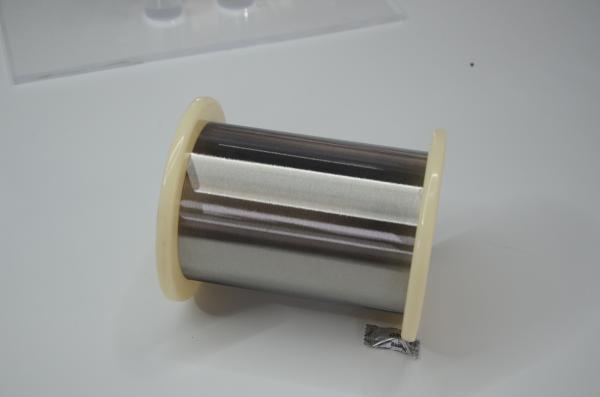

Factory Direct 1J33 Soft Magnetic Alloy Wire Low Curie Point FeNi Alloy Wire for Voltage Transformer Magnetic Shielding Components
Factory Direct 1J33 Soft Magnetic Alloy Wire Low Curie Point FeNi Alloy Wire for Voltage Transformer Magnetic Shielding Components
Specifications
Model Number :
wire
Resisivity（Ω·cm，20℃） :
0.45-0.55
Payment Terms :
T/T
Hardness（Hv) :
150-200
Price :
negotiation
Melting point（℃） :
1450-1500
Supply Ability :
100 Tons per year
Elongation（%) :
30-50
Certification :
SGS/ISO9001
Density（g/m³） :
8.7-8.8
MOQ :
negotiation
Delivery Time :
7-20days
Tensile strength(N/m㎡） :
400-600
Packaging Details :
Spool + Carton + Wooden Case
Brand Name :
HUONA
Max continuous Operating Temperature（℃） :
400-450
Place of Origin :
Shanghai,China
Thermal Conductivity（KJ/m·h·℃） :
70-90
Description

1J33 is a nickel-iron soft magnetic alloy belonging to the high-permeability Permalloy family. Its main composition is based on nickel and iron, with carefully controlled alloying additions to optimize magnetic performance. It features relatively high initial magnetic permeability, low coercivity, and good magnetic stability, making it suitable for precision electromagnetic applications. Compared with some high-nickel soft magnetic alloys, 1J33 offers a balanced combination of magnetic properties and mechanical workability.

After appropriate cold working and annealing treatment, 1J33 exhibits improved soft magnetic performance, particularly in weak magnetic field conditions where it provides high sensitivity and low energy loss. However, the material is stress-sensitive, so vacuum or protective atmosphere annealing is typically required to relieve internal stress and stabilize its magnetic properties.


1J33 is widely used in precision electromagnetic components and weak magnetic field applications, such as magnetic shielding structures, precision transformer cores, magnetic sensors, and high-sensitivity relays. It is an important functional material in electronic systems that require low noise, high stability, and reliable magnetic performance.


1. Chemical Composition:

Ni

79-81%

Mo

3-4%

Fe

Bal

Si

 ≤0.3%

C

 ≤0.03%

S

 ≤0.02%


2. Technical Specifications:

Parameter

Specification

Max continuous Operating Temperature(℃)

400-450

Resisivity(Ω·cm,20℃)

0.45-0.55

Density(g/m³)

8.7-8.8

Thermal Conductivity(KJ/m·h·℃)

70-90

Tensile strength(N/m㎡)

400-600

Melting point(℃)

1450-1500

Hardness(Hv)

150-200

Elongation(%)

 30-50

3. Production Attributes:

Product Form

wire

Diameter

customization

Surface Finish

Bright, Polished

Packaging Type

Coil, Bundle, Straight Rods

Certification

ISO9001, SGS, and so on

Application Environment

Chemical, Industrial,Home


4. Applications:

  • Magnetic shielding components
  • Precision transformer cores
  • Magnetic sensors
  • Fluxgate sensor components
  • High-sensitivity relays
  • Precision measurement and control instruments
  • Aerospace and aviation electronic systems
  • Scientific research equipment
  • Low-noise inductive components in high-precision circuits

5.Key features:

  • High initial magnetic permeability
  • Low coercivity
  • Low hysteresis loss
  • Good weak magnetic field sensitivity
  • Stable magnetic performance after proper annealing
  • Excellent magnetic shielding capability
  • Good workability in fine wire form
  • Strong stress sensitivity
  • Good consistency in precision electronic applications
  • Suitable for low-noise, high-stability magnetic systems
