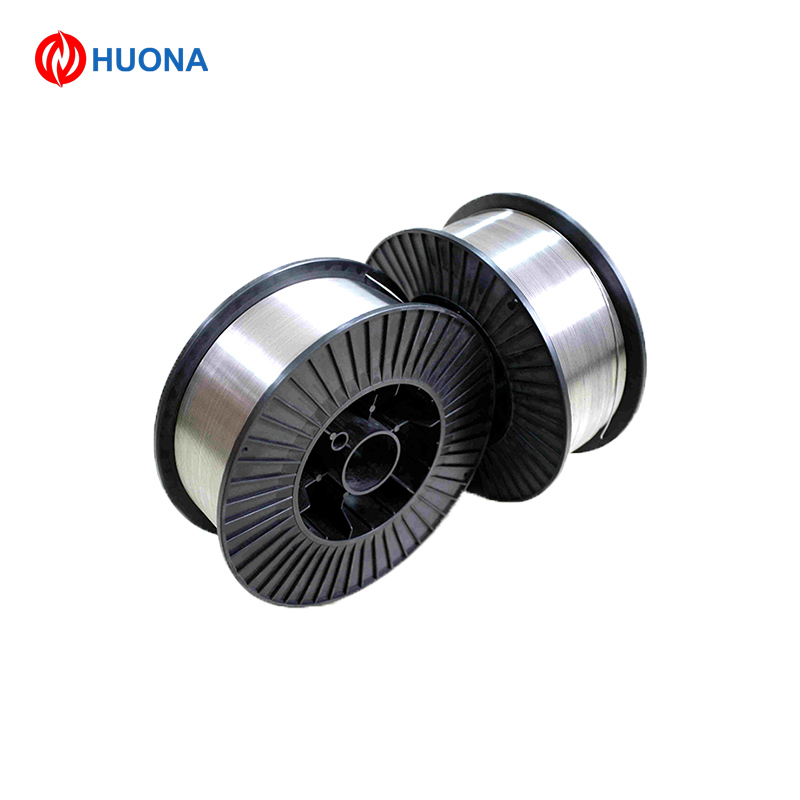

PtIr10 Platinum Iridium Alloy Wire 0.25mm Medical Electrode Marker Band Radiopaque Material
PtIr10 Platinum Iridium Alloy Wire 0.25mm Medical Electrode Marker Band Radiopaque Material
Specifications
Delivery Time :
5-10 working days for stock items, 15-20 working days for production
Wire Type :
Round wire
Melting Point :
~1780 deg C
Surface Condition :
Bright, clean, burr-free
Resistivity :
~0.245 uOhm.m
Elongation :
>= 25% (annealed)
Model Number :
PtIr10-0.25
Place of Origin :
China
Certification :
ISO 9001:2015
Price :
USD 50-150 / Gram
Purity :
Pt + Ir >= 99.9%
Tensile Strength (hard drawn) :
900-1100 MPa
Packaging Details :
Vacuum-sealed protective bag with export-grade carton; supplied on spool or coil per customer request
Density :
~21.5 g/cm3
Straightness :
Good straightness, kink-free
Payment Terms :
T/T,L/C,PayPal,Western Union
Brand Name :
ECER
MOQ :
10 Grams
Diameter :
0.25 mm
Supply Ability :
5000 Grams per Month
Alloy Grade :
Pt90Ir10 (PtIr10)
Diameter Tolerance :
+/- 0.005 mm
Tensile Strength (annealed) :
380-450 MPa
Description

PtIr10 Platinum Iridium Alloy Wire - 0.25 mm

Pt90Ir10 alloy wire precision-drawn to 0.25 mm diameter for medical device manufacturing. Platinum iridium 10% is the most widely specified Pt-Ir grade for implantable and interventional devices, valued for its balanced combination of radiopacity, mechanical strength and corrosion resistance.

Key Specifications

Alloy GradePt90Ir10 (PtIr10)
Wire TypeRound wire
Diameter0.25 mm
Diameter Tolerance±0.005 mm
PurityPt + Ir ≥ 99.9%
Density~21.5 g/cm³
Melting Point~1780 °C
Resistivity~0.245 μΩ·m
Tensile Strength (hard drawn)900-1100 MPa
Tensile Strength (annealed)380-450 MPa
Elongation≥ 25% (annealed)
Surface ConditionBright, clean, burr-free

Typical Medical Applications

  • Radiopaque marker bands and marker wire for catheters and stents
  • Electrode wire for cardiac pacing leads and sensing electrodes
  • Guidewire core and shaping wire for interventional devices
  • Electrical stimulation and ablation device components

Material Advantages

  • Superior radiopacity for precise device positioning under fluoroscopy
  • Excellent biocompatibility and corrosion resistance in body environments
  • High strength with good formability for coiling, bending and swaging
  • Available in hard drawn or annealed temper to suit your process

Quality Assurance

Produced under an ISO 9001:2015 quality system. Each spool is inspected for diameter, surface finish and mechanical properties. Custom diameters, tempers and spool lengths are available upon request. Contact us for full specifications and pricing.
