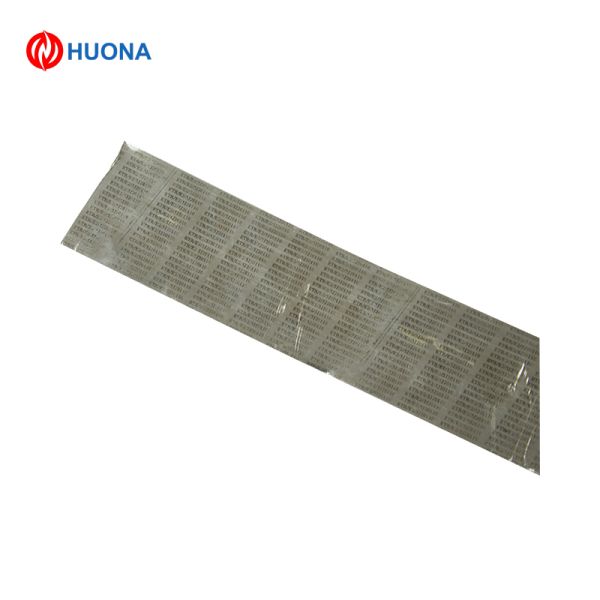

Mn72ni10cu18/Ni36 Thermo Bimetallic Strip Truflex P675r Thermostatic Bimetal Strip
Mn72ni10cu18/Ni36 Thermo Bimetallic Strip Truflex P675r Thermostatic Bimetal Strip
Specifications
Brand Name :
Huona
Model Number :
P675r
Certification :
ISO9001
Place of Origin :
China
MOQ :
30KG
Price :
Discuss
Payment Terms :
L/C,T/T,Western Union,
Supply Ability :
500 Ton/Month
Delivery Time :
7-21 Days
Packaging Details :
The Wooden Case
Model NO. :
P675R
Low Expansion Layer :
Ni36
High Expansion Layer :
Mn75ni15cu10
Density :
7.7
Specification :
discuss
Surface Treatment :
Polishing
Transport Package :
The Wooden Case
Description

Product Description

Mn72ni10cu18/Ni36 Thermo Bimetallic Strip Truflex P675r Thermostatic Bimetal Strip
Product Description

Common Name: Truflex P675R, Chace 7500,Telcon200
Bimetallic 5J20110 holds very high thermal sensitivity and higher resistivity,but the modulus of elasticity and allowable stress is lower,it can improve the sensitivity of the instrument,decrease the size and increase the force.

Composition
Grade 5J20110
High expansion layer Mn75Ni15Cu10
Low expansion layer Ni36

Chemical composition(%)
Grade C Si Mn P S Ni Cr Cu Fe
Ni36 ≤0.05 ≤0.3 ≤0.6 ≤0.02 ≤0.02 35~37 - - Bal.
Grade C Si Mn P S Ni Cr Cu Fe
Mn75Ni15Cu10 ≤0.05 ≤0.5 Bal. ≤0.02 ≤0.02 14~16 - 9~11 ≤0.8

Typical Physical properties
Density (g/cm3) 7.7
Electrical resistivity at 20ºC(ohm mm2/m) 1.13 ±5%
Thermal conductivity, λ/ W/(m*ºC) 6
Elastic Modulus, E/ Gpa 113~142
Bending K / 10-6 ºC-1(20~135ºC) 20.8
Temperature bending rate F/(20~130ºC)10-6ºC-1 39.0%±5%
Allowable temperature (ºC) -70~ 200
Linear temperature (ºC) -20~ 150

Application: The material is mainly used as Non magnetic non matching ceramic sealing material in Gyro and other electric vacuum devices.

Style of supply
Alloys Name Type Dimension
P675R Strip W= 5~120mm T= 0.1mm
