Product Details

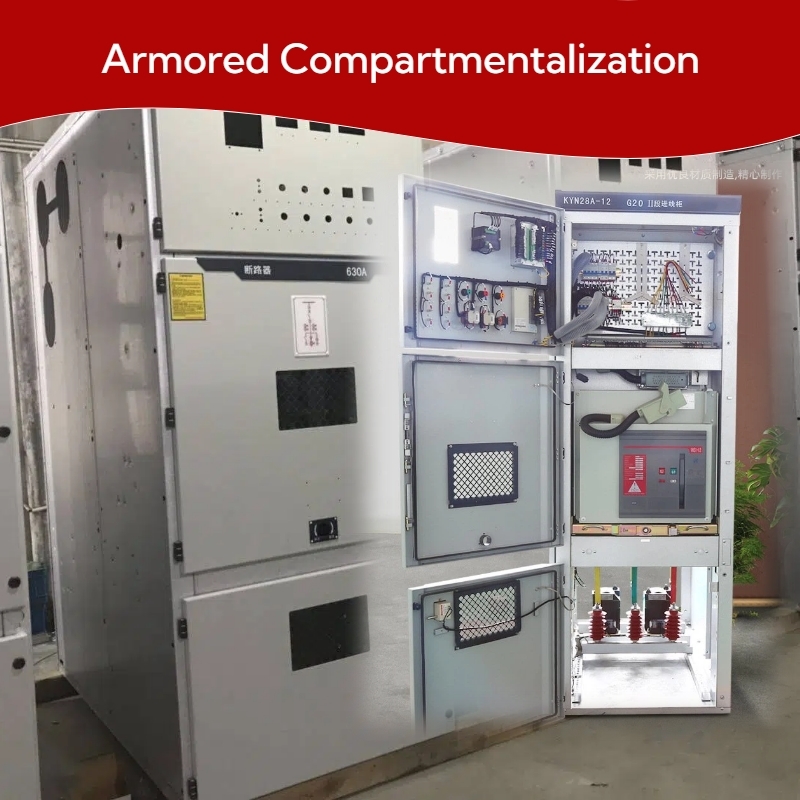

This IEC medium-voltage VCB switchgear combines an armoured metal-clad enclosure with a withdrawable vacuum circuit breaker for demanding power distribution applications. The withdrawable breaker compartment allows the VCB to be moved between service, test and isolated positions, supporting safer operation and easier maintenance. The cabinet can integrate CTs, PTs, protection relays, bus couplers and cable compartments according to the project design. Voltage class, current rating, short-circuit capacity and panel arrangement can be customized. The solution is suitable for grid, renewable energy and industrial MV networks requiring reliable switching and protection.

Applications

Designed for power grids, substations, solar and wind power projects, industrial plants, mining facilities and large energy infrastructure. It can serve as incoming switchgear, feeder protection, transformer protection or bus sectionalizing equipment. The withdrawable VCB configuration is especially suitable for projects where maintenance flexibility, equipment availability and operational safety are important. Customized panel lineups can be supplied according to the customer's SLD, grid code and project-specific electrical requirements.

Core Technical Parameters

• Rated Voltage: 12kV / 24kV / 36kV
• Rated Current: Up to 3150A
• Frequency: 50/60Hz
• Circuit Breaker: Withdrawable VCB
• Short-Circuit Breaking Current: Up to 31.5kA
• Standard: IEC 62271-200

FAQ

Q1: Is the VCB withdrawable?
Yes. The VCB can be designed with service, test and isolated positions.

Q2: Can this switchgear be used for solar and wind projects?
Yes. It can be configured for renewable energy collection and grid interconnection systems.

Q3: Can the voltage level reach 36kV?
Yes. 36kV-class configurations can be customized according to project requirements.

Q4: What protection functions can be integrated?
Overcurrent, earth fault, transformer protection and other functions can be configured.

Q5: Can you design the complete switchgear based on our SLD?
Yes. We can provide customized panel design, electrical configuration and technical drawings based on the project SLD.
