Product Details

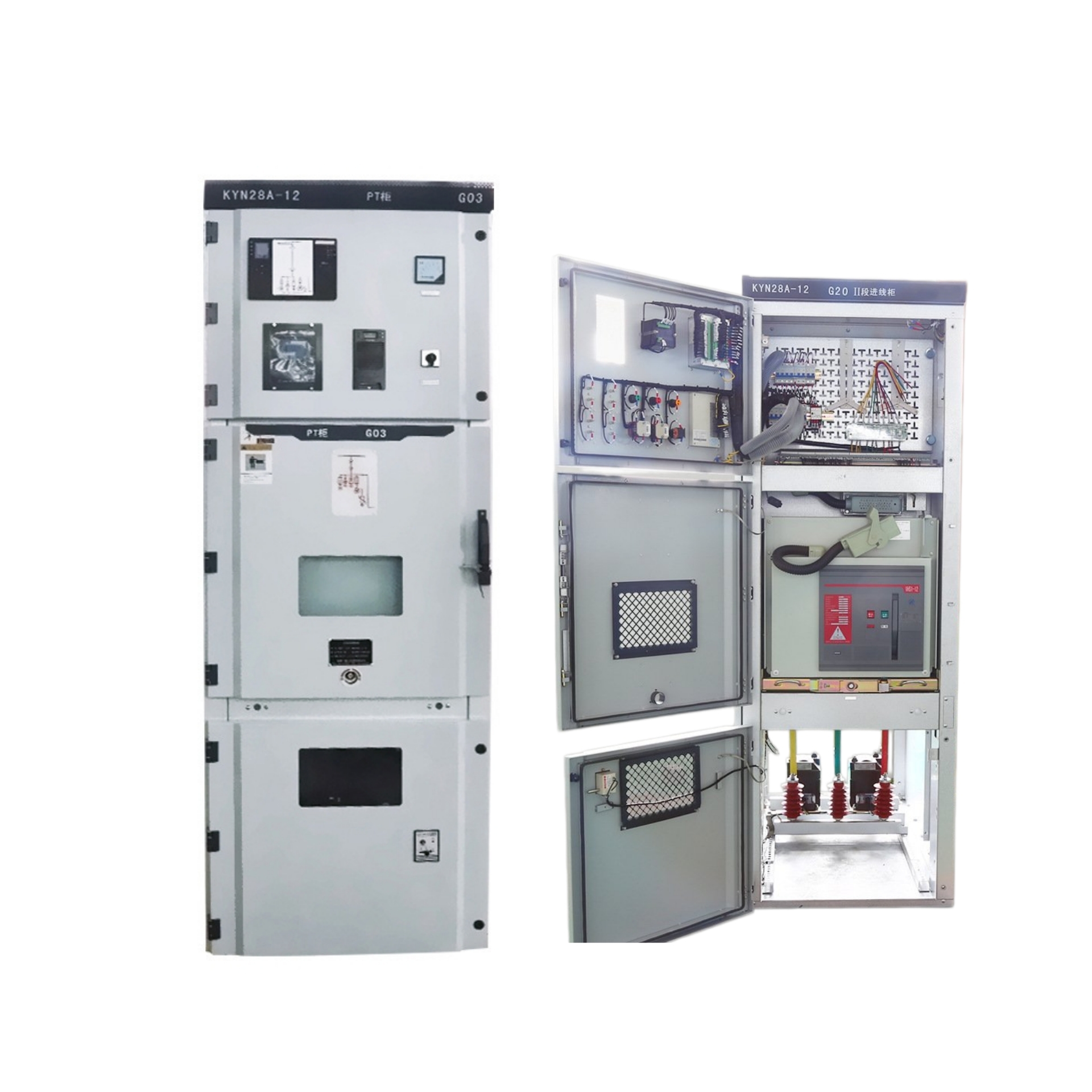

This medium-voltage armoured switchgear is designed for reliable power distribution and circuit protection in MV networks. The metal-enclosed cabinet integrates a vacuum circuit breaker, busbar system, protection devices and cable compartments into a robust compartmentalized structure. The VCB provides reliable switching and interruption performance, while the metal enclosure helps separate primary circuits and improve operational safety. Rated voltage, busbar arrangement, CT/PT configuration, protection relay and cable entry can be customized according to project requirements. The switchgear can be engineered for IEC-based distribution systems.

Applications

Suitable for industrial power distribution, commercial facilities, substations, factories, mining plants and utility networks. It can be used for incoming power, outgoing feeders, transformer protection, bus section and motor feeder applications. The armoured metal-enclosed structure is suitable for projects requiring compartmentalized MV equipment, reliable circuit protection and convenient maintenance. Customized configurations are available for different network voltages, load capacities and protection requirements.

Core Technical Parameters

• Rated Voltage: 12kV / 24kV
• Rated Current: Up to 3150A
• Frequency: 50/60Hz
• Circuit Breaker: Vacuum Circuit Breaker
• Short-Circuit Breaking Current: Up to 31.5kA
• Standard: IEC 62271-200

FAQ

Q1: Does the switchgear use a VCB?
Yes. Vacuum circuit breakers are available for reliable MV switching and protection.

Q2: Can CT and PT configurations be customized?
Yes. CT/PT ratios and protection configurations can be designed according to the project.

Q3: Is this metal-clad or metal-enclosed switchgear?
The cabinet structure can be engineered according to the required metal-enclosed or metal-clad configuration.

Q4: Can it be used for transformer protection?
Yes. It can be configured as an incoming, outgoing or transformer feeder panel.

Q5: Can you provide a complete MV switchgear lineup?
Yes. We can design multiple panels according to the customer's SLD and protection requirements.
